Description

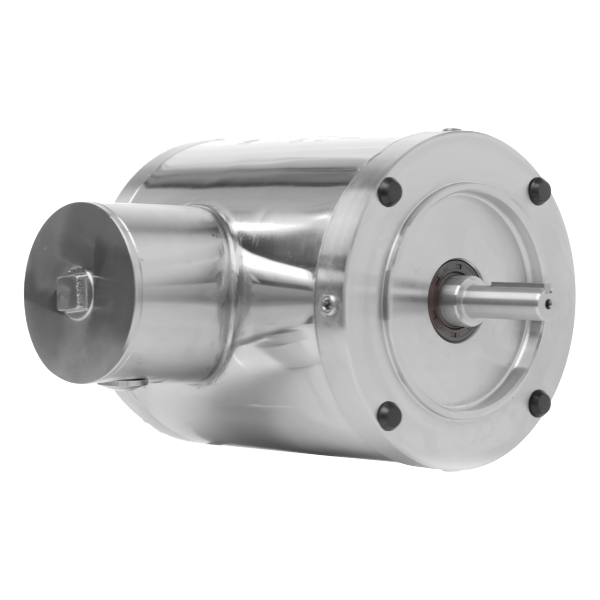

SSPENV12-36-56CRD — Premium Efficient Motor
The SSPENV12-36-56CRD is a 0.5 hp, 3600 rpm, 3-phase, 230/460v, 56crd frame, tenv premium efficient motor for food and beverage processing. TENV enclosure, 1.15 service factor.
Specifications
| Specification | Value |
|---|---|
| Part Number | SSPENV12-36-56CRD |
| Horsepower (HP) | 0.5 |
| Speed (RPM) | 3600 |
| Phase | Three-Phase |
| Voltage | 230/460 |
| NEMA Frame | 56CRD |
| Enclosure | TENV |
| Service Factor | 1.15 |
| Full-Load Efficiency (%) | 74.0 |
| NEMA Design | B |
| Insulation Class | Class F |
| Mounting | C-Face Round Body (Footless) |
| Ingress Protection | IP69K |
| Weight (lbs) | 29 |
| Duty Cycle | S1 |
| Warranty | Two Year |
Applications
- Food and beverage processing
- Sanitary and w, high-pressure washdown areas
- Corrosive and wet environments
- Pharma and packaging lines
Documentation & Downloads
Frequently Asked Questions
What is the SSPENV12-36-56CRD used for?
The SSPENV12-36-56CRD is a 0.5 hp, 3600 rpm, 3-phase, 230/460v, 56crd frame, tenv premium efficient motor used for food and beverage processing and similar loads.
What frame is the SSPENV12-36-56CRD?
The SSPENV12-36-56CRD uses a NEMA 56CRD frame. Confirm shaft diameter, mounting (base or C-face), and bolt pattern against your existing motor before ordering a replacement.
What voltage does the SSPENV12-36-56CRD run on?
The SSPENV12-36-56CRD is rated 230/460V, 3-Phase at 60 Hz. Verify supply voltage and connection against the motor nameplate.
How fast does the SSPENV12-36-56CRD ship?
Most in-stock units of the SSPENV12-36-56CRD ship the same or next business day; non-stock items vary. Call (888) 203-2358 to confirm availability and freight.
