Steelgrip 20S Belt Fastener - 316 Stainless Steel, 12" Lacing with 4 Sets per Box


Price:
$ 123.65

Description

Steelgrip 20S Belt Fastener is a hook-style alligator lacing (mechanical belt fastener) for belts 5/32 to 3/16 inch on pulleys 3 inch or larger. 316 Stainless Steel construction.

What is in the package:

  • 4 sets of alligator-style lacing, each 12 inches long
  • Cross-scored design - break by hand to fit any belt width
  • Corrugated hinge pin (one per box, for splicing)
  • Gauge pin (for proper alignment during installation)
  • Installation instructions

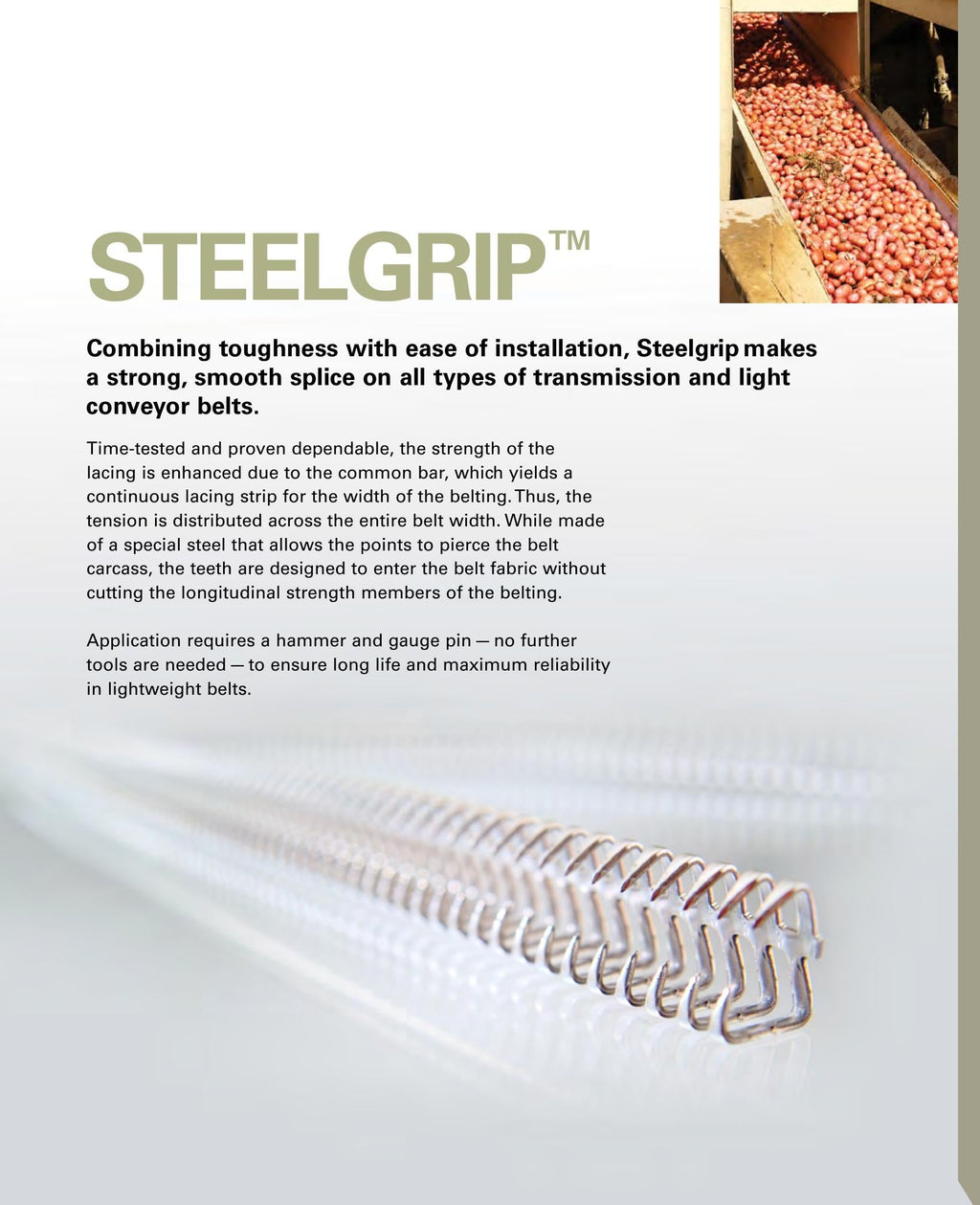

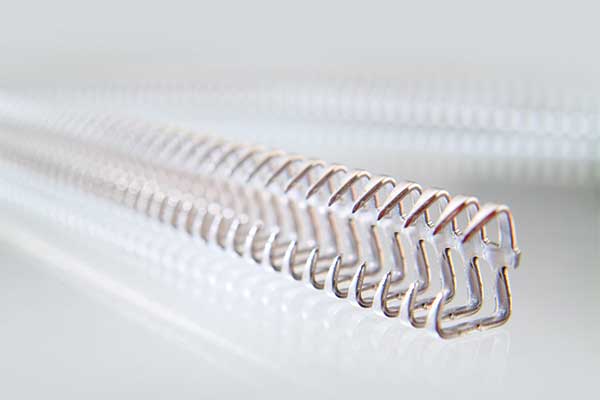

How Steelgrip works: A continuous one-piece fastener strip with teeth that embed lengthwise into the belt carcass and connect at the splice with a removable corrugated hinge pin. The common connecting bar distributes tension uniformly across the full belt width. Teeth are shaped to divide (not sever) the longitudinal carcass fibers, producing a vise-like hold on rubber, PVC, fabric, and light urethane belts.

Installation: Only a hammer and the included gauge pin are required. Lacing is cross-scored so installers snap it to any belt width by hand with no drilling, punching, or special tools.

Material: 316 stainless steel is a nickel-chrome alloy that offers excellent resistance to fatty acids, wash-down chemicals, and mechanical abrasion. Basically non-magnetic. Excellent for food processing, pharmaceutical, dairy, and sanitary environments.

Applications: Used in food processing and meat/poultry wash-down lines, dairy and beverage conveyors, pharmaceutical packaging, frozen food handling, and cleanrooms.

Direct Flexco equivalent: Steelgrip 20S is the direct equivalent to Flexco Alligator 20 Stainless at matching size numbers.

Texas Belting is an authorized MATO distributor shipping from Houston, TX. Same-day shipping on stocked items. Call 888-203-2358 for sizing help or bulk pricing.
