Steelgrip 35 Belt Fastener - Carbon Steel, 12" Lacing with 10 Individual Sets per Carton (Economy Pack)


Price:
$ 150.90

Description

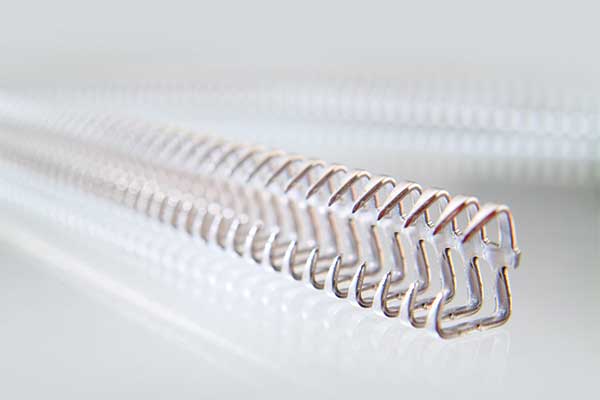

Steelgrip 35 Belt Fastener is a hook-style alligator lacing (mechanical belt fastener) for belts 9/32 to 5/16 inch on pulleys 7 inch or larger. Carbon Steel construction.

What is in the package:

  • 4 sets of alligator-style lacing, each 12 inches long
  • Cross-scored design - break by hand to fit any belt width
  • Corrugated hinge pin (one per box, for splicing)
  • Gauge pin (for proper alignment during installation)
  • Installation instructions

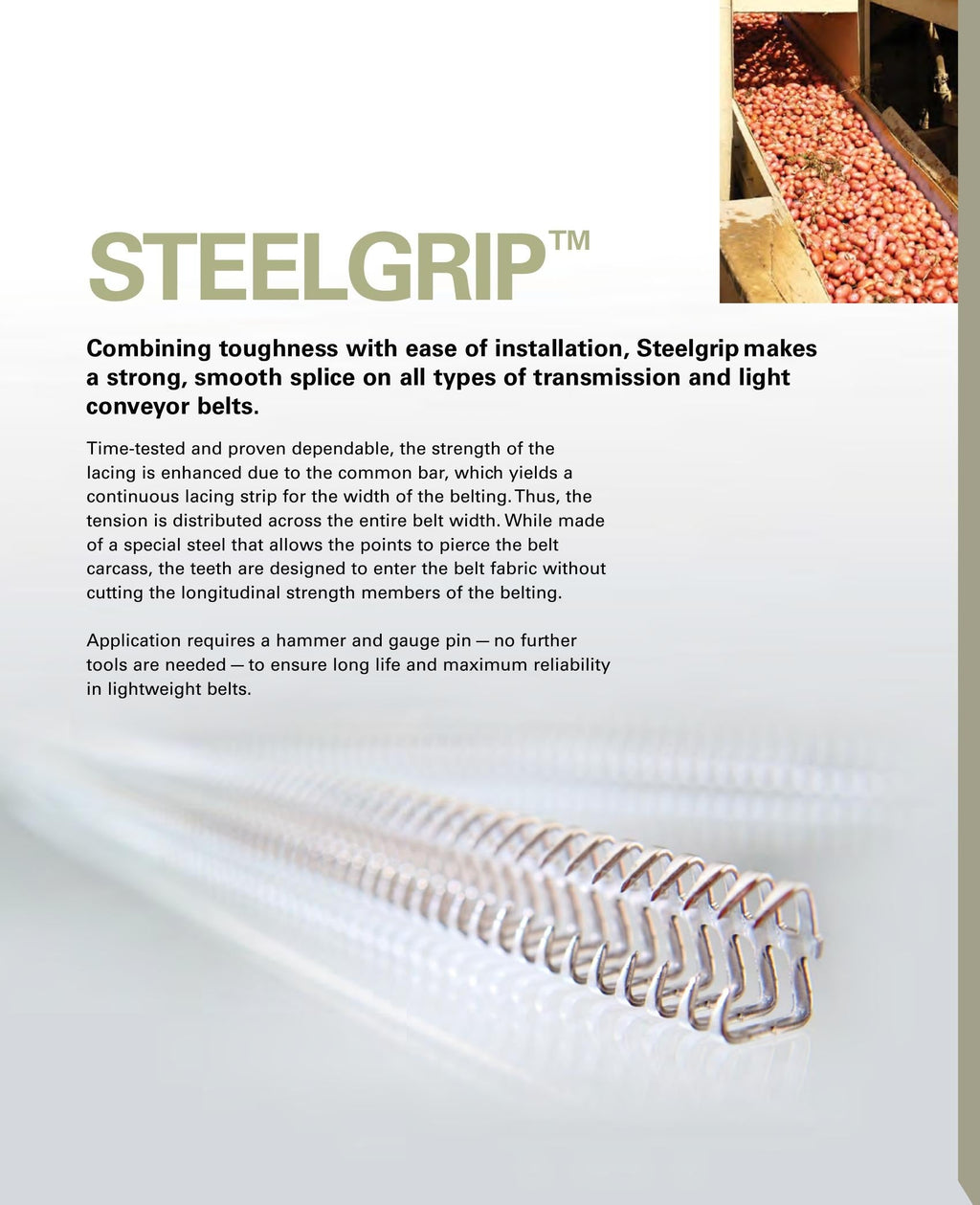

How Steelgrip works: A continuous one-piece fastener strip with teeth that embed lengthwise into the belt carcass and connect at the splice with a removable corrugated hinge pin. The common connecting bar distributes tension uniformly across the full belt width. Teeth are shaped to divide (not sever) the longitudinal carcass fibers, producing a vise-like hold on rubber, PVC, fabric, and light urethane belts.

Installation: Only a hammer and the included gauge pin are required. Lacing is cross-scored so installers snap it to any belt width by hand with no drilling, punching, or special tools.

Material: Carbon steel uses a low-carbon base that offers good forming characteristics for easy installation and good abrasion resistance. Magnetic and poor chemical resistance. Standard material for Steelgrip sizes 15 through 45.

Applications: Used in warehouse distribution, parcel sortation, grain elevator auxiliary conveyors, light sawmill transfer belts, and commercial laundry feeding.

Direct Flexco equivalent: Steelgrip 35 is the direct equivalent to Flexco Alligator 35 at matching size numbers.

Texas Belting is an authorized MATO distributor shipping from Houston, TX. Same-day shipping on stocked items. Call 888-203-2358 for sizing help or bulk pricing.
