Turner Light-Duty 2-Bolt Flange Block - 15/16" Bore, Set Screw Locking Collar


Price:
$ 21.72

Description

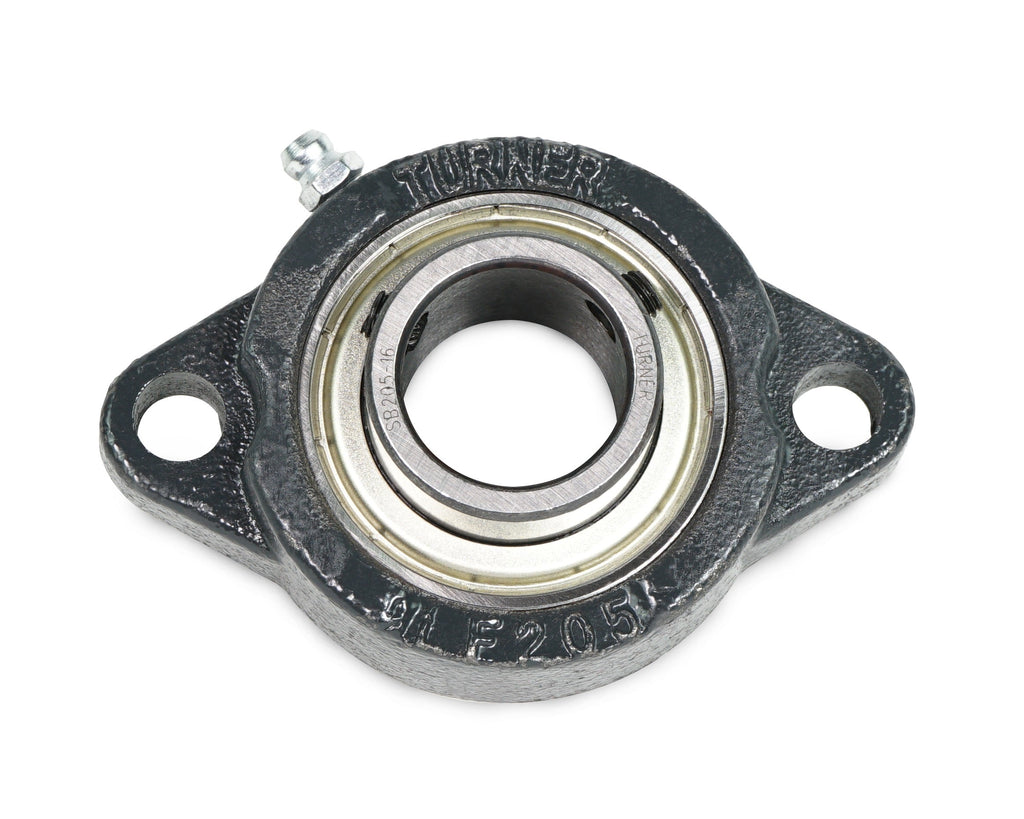

The Turner SBLF205 15 is a light-duty 2-bolt flange block mounted bearing unit with a 15/16" bore. It features a SB series insert with set screw locking in a cast iron housing. Pre-lubricated and ready for installation.

Product Specifications

Bore Size 15/16"
Housing Style Light-Duty 2-Bolt Flange Block
Insert Series SB
Shaft Attachment Set Screw
Housing Material Cast Iron
Bearing Type Ball Bearing
Dynamic Load Rating 3,156 lbs
Static Load Rating 1,810 lbs
Limiting Speed 6000 RPM
Bolt Size 3/8"
Duty Level Light
Part Number SBLF205 15

Series Specifications

Dimensional drawing for Turner SBLF205 15

Insert Specifications

Turner SB series bearing insert specifications
