Turner Light-Duty 2-Bolt Flange Block - 35 Nmm Bore, Set Screw Locking Collar


Price:
$ 34.44

Description

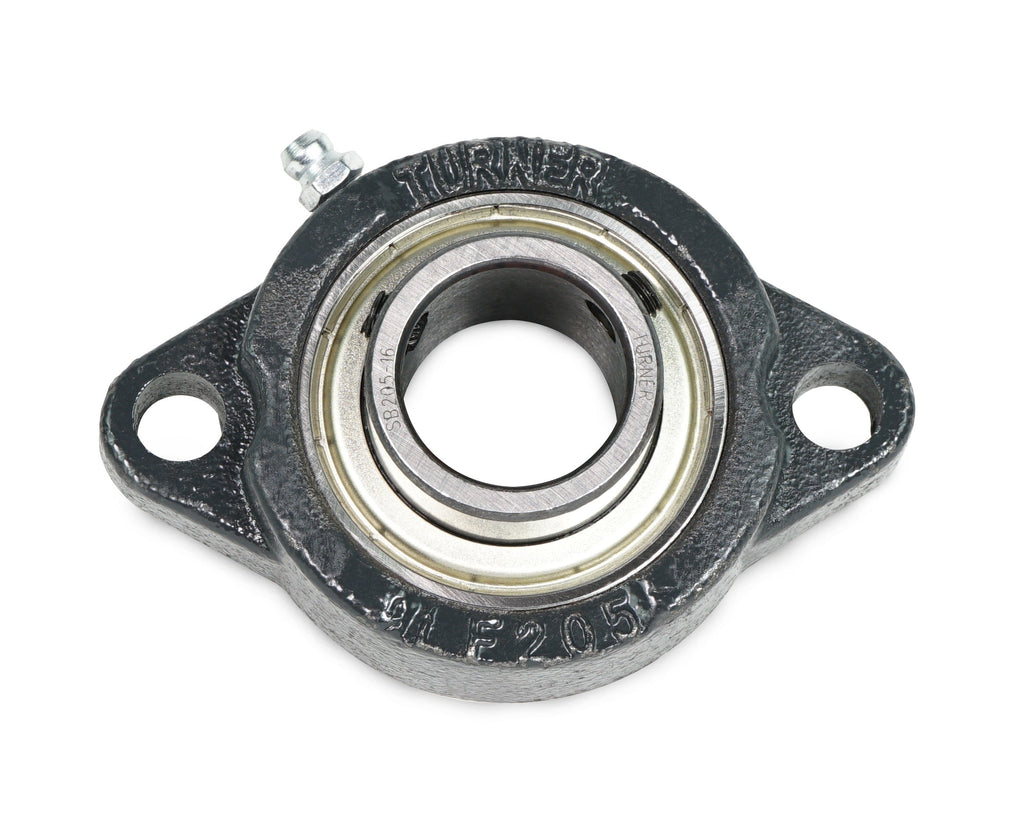

The Turner SBLF207 35MM N is a light-duty 2-bolt flange block mounted bearing unit with a 35 Nmm bore. It features a SB series insert with set screw locking in a cast iron housing. Pre-lubricated and ready for installation.

Product Specifications

Bore Size 35 Nmm
Housing Style Light-Duty 2-Bolt Flange Block
Insert Series SB
Shaft Attachment Set Screw
Housing Material Cast Iron
Bearing Type Ball Bearing
Dynamic Load Rating 5,775 lbs
Static Load Rating 3,498 lbs
Limiting Speed 4500 RPM
Bolt Size 1/2"
Duty Level Light
Part Number SBLF207 35MM N

Series Specifications

Dimensional drawing for Turner SBLF207 35MM N

Insert Specifications

Turner SB series bearing insert specifications
