Turner 3-Bolt Flange Bracket - 1-3/16" Bore, Set Screw Locking Collar


Price:
$ 29.95

Description

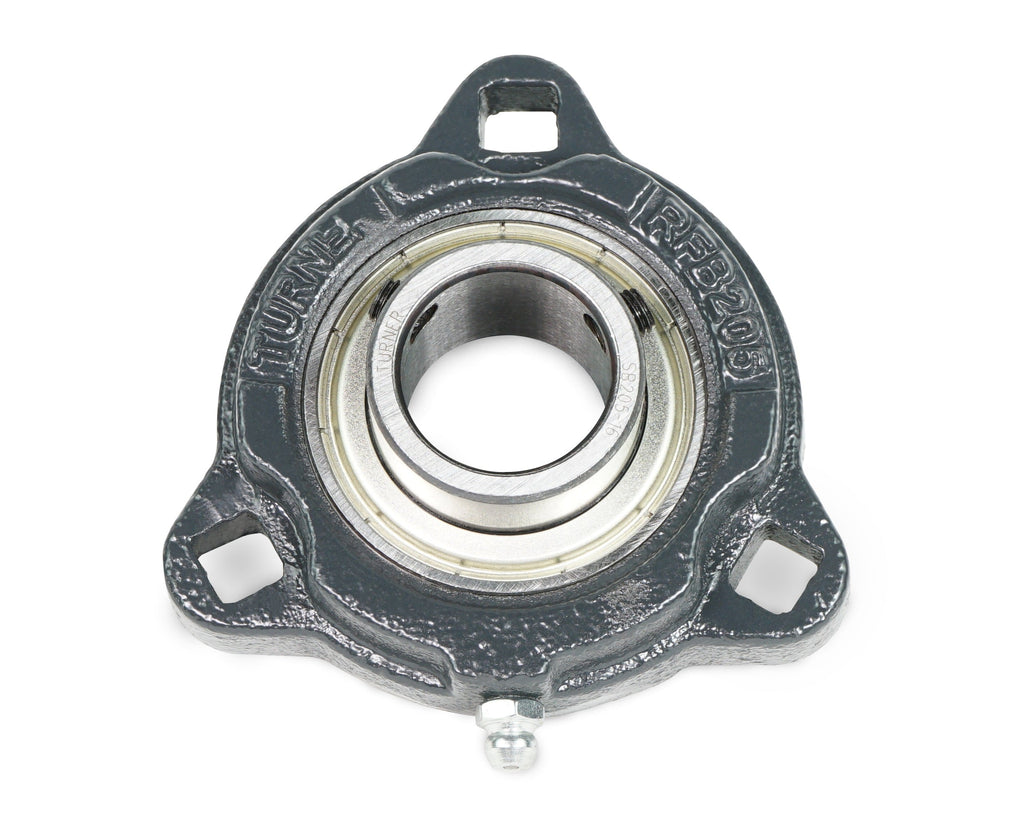

The Turner SBRFB206 19 is a 3-bolt flange bracket mounted bearing unit with a 1-3/16" bore. It features a SB series insert with set screw locking in a cast iron housing. Pre-lubricated and ready for installation.

Product Specifications

Bore Size 1-3/16"
Housing Style 3-Bolt Flange Bracket
Insert Series SB
Shaft Attachment Set Screw
Housing Material Cast Iron
Bearing Type Ball Bearing
Dynamic Load Rating 4,377 lbs
Static Load Rating 2,569 lbs
Limiting Speed 5300 RPM
Bolt Size 1/2"
Duty Level Light
Part Number SBRFB206 19

Series Specifications

Dimensional drawing for Turner SBRFB206 19

Insert Specifications

Turner SB series bearing insert specifications
