Turner 3-Bolt Flange Bracket - 7/8" Bore, Set Screw Locking Collar


Price:
$ 25.46

Description

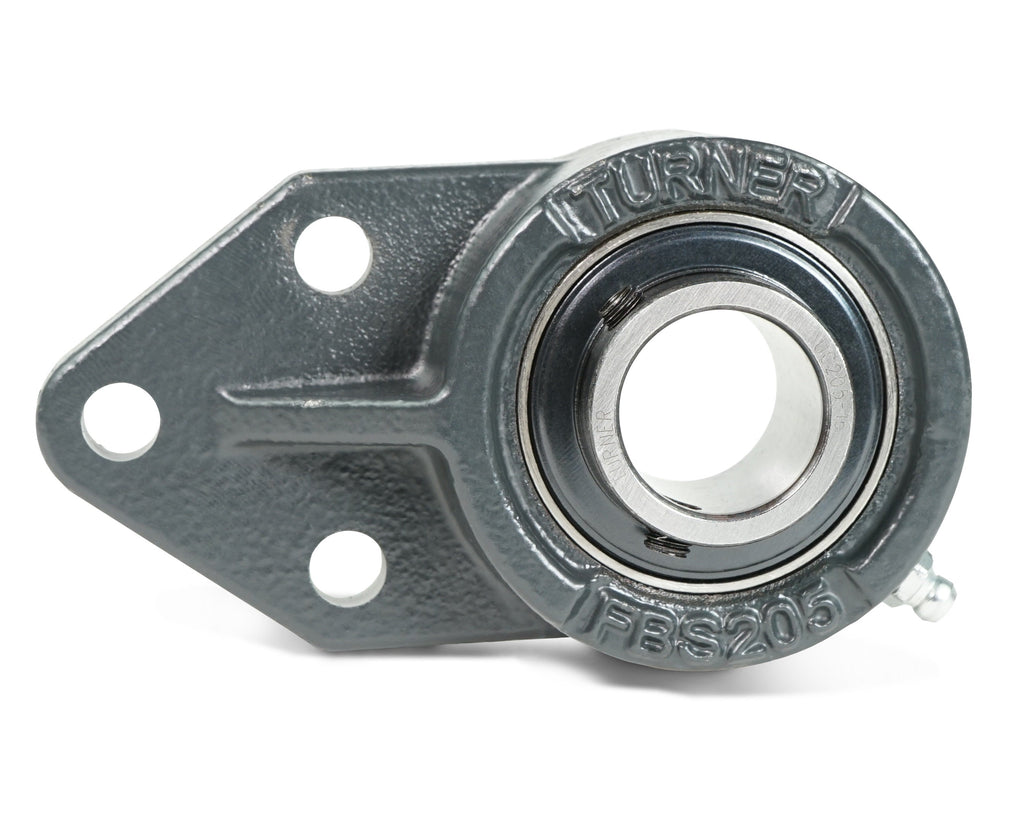

The Turner UCFBS205 14 is a 3-bolt flange bracket mounted bearing unit with a 7/8" bore. It features a UC series insert with set screw locking in a cast iron housing. Pre-lubricated and ready for installation.

Product Specifications

Bore Size 7/8"
Housing Style 3-Bolt Flange Bracket
Insert Series UC
Shaft Attachment Set Screw
Housing Material Cast Iron
Bearing Type Ball Bearing
Dynamic Load Rating 3,156 lbs
Static Load Rating 1,810 lbs
Limiting Speed 6000 RPM
Bolt Size 3/8"
Duty Level Normal
Part Number UCFBS205 14

Series Specifications

Dimensional drawing for Turner UCFBS205 14

Insert Specifications

Turner UC series bearing insert specifications
