Turner 2-Bolt Flange Block - 25mm Bore, Set Screw Locking Collar


Price:
$ 23.96

Description

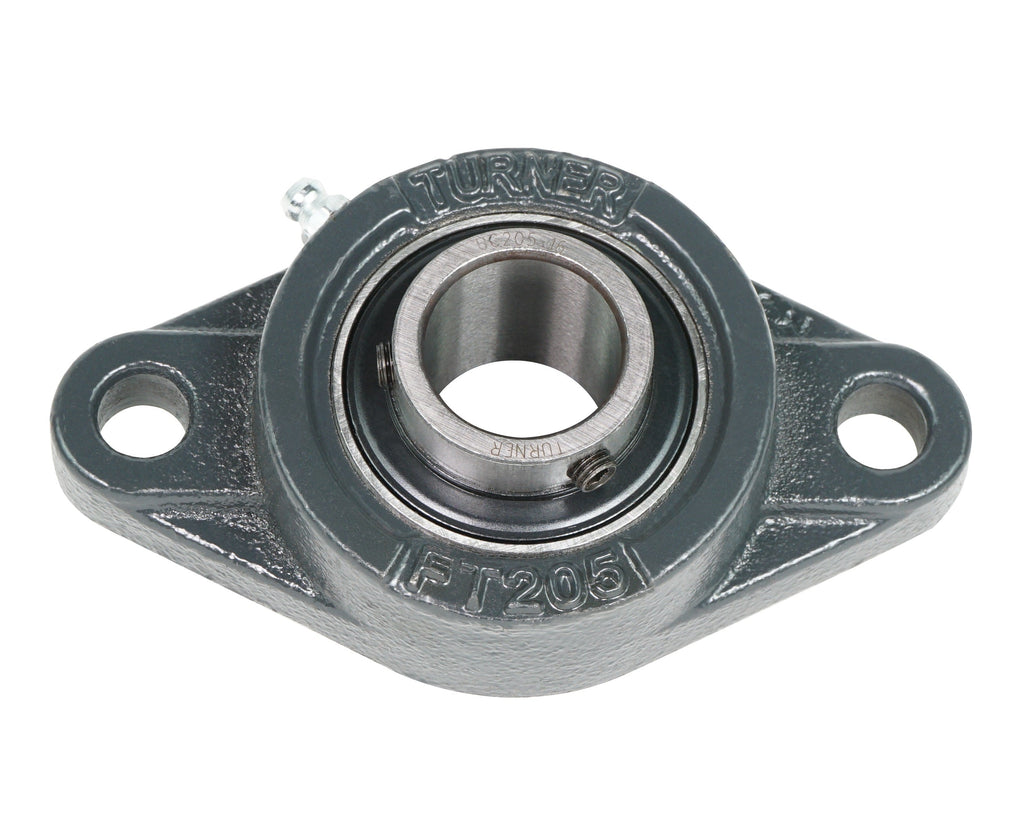

The Turner UCFJT205 25MM is a 2-bolt flange block mounted bearing unit with a 25mm bore. It features a UC series insert with set screw locking in a cast iron housing. Pre-lubricated and ready for installation.

Product Specifications

Bore Size 25mm
Housing Style 2-Bolt Flange Block
Insert Series UC
Shaft Attachment Set Screw
Housing Material Cast Iron
Bearing Type Ball Bearing
Dynamic Load Rating 3,156 lbs
Static Load Rating 1,810 lbs
Limiting Speed 6000 RPM
Bolt Size 3/8"
Duty Level Normal
Part Number UCFJT205 25MM

Series Specifications

Dimensional drawing for Turner UCFJT205 25MM

Insert Specifications

Turner UC series bearing insert specifications
