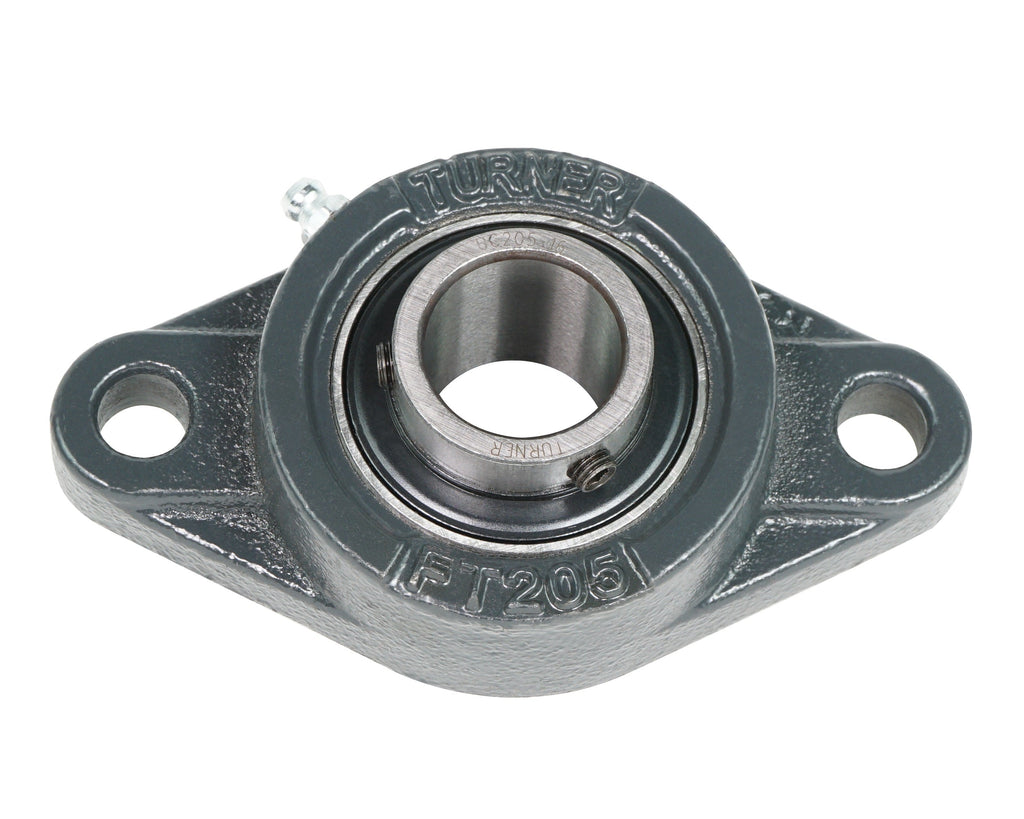

Turner 2-Bolt Flange Block - 1" Bore, Set Screw Locking Collar - Lubrilife


Price:
$ 58.75

Description

The Turner UCFT205 16 L4L is a 2-bolt flange block mounted bearing unit with a 1/16" bore. It features a UC series insert with set screw locking in a cast iron housing. This unit includes enhanced sealing for extended service life.

Product Specifications

Bore Size 1/16"
Housing Style 2-Bolt Flange Block
Insert Series UC
Shaft Attachment Set Screw
Housing Material Cast Iron
Bearing Type Ball Bearing
Lubrication / Seal Lubrilife Permanent
Dynamic Load Rating 3,156 lbs
Static Load Rating 1,810 lbs
Limiting Speed 6000 RPM
Bolt Size 3/8"
Duty Level Normal
Part Number UCFT205 16 L4L

Series Specifications

Dimensional drawing for Turner UCFT205 16 L4L

Insert Specifications

Turner UC series bearing insert specifications
