Turner Hanger Bearing - 2-3/16" Bore, Set Screw Locking Collar - L3 Heavy-Duty Seal


Price:
$ 100.34

Description

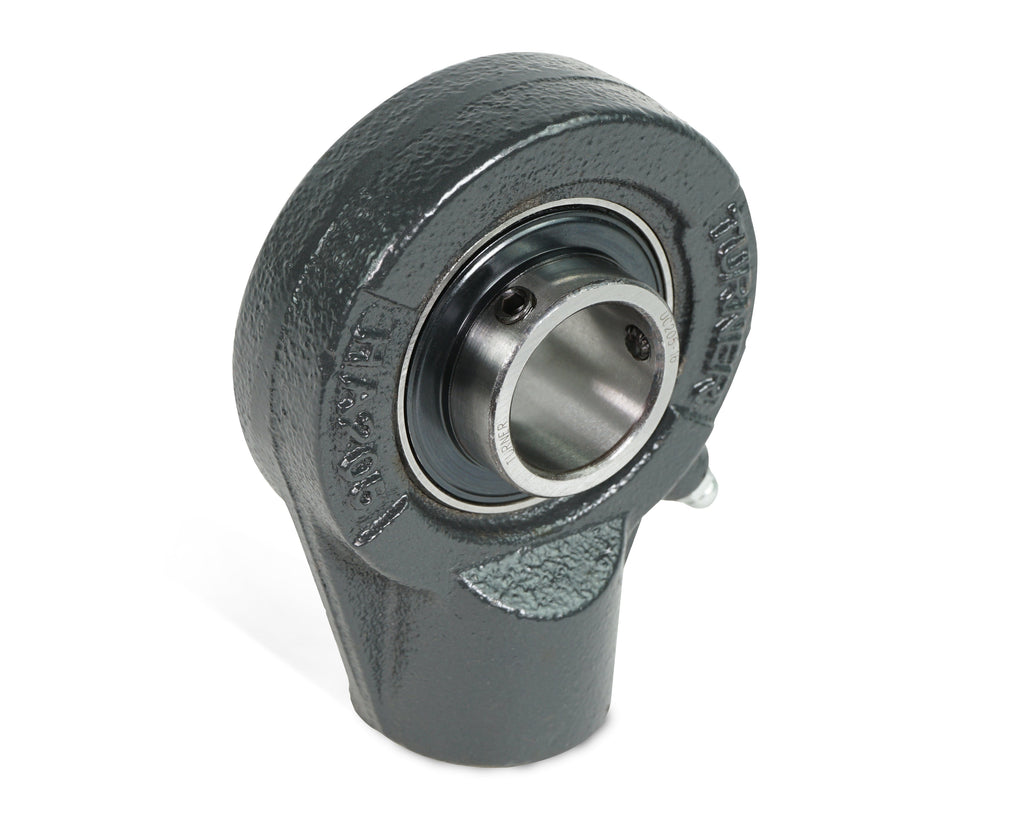

The Turner UCHA211 35 L3 is a hanger bearing mounted bearing unit with a 2-3/16" bore. It features a UC series insert with set screw locking in a cast iron housing. This unit includes enhanced sealing for extended service life.

Product Specifications

Bore Size 2-3/16"
Housing Style Hanger Bearing
Insert Series UC
Shaft Attachment Set Screw
Housing Material Cast Iron
Bearing Type Ball Bearing
Lubrication / Seal L3 Heavy-Duty
Dynamic Load Rating 9,743 lbs
Static Load Rating 6,609 lbs
Limiting Speed 2500 RPM
Bolt Size 5/8"
Duty Level Normal
Part Number UCHA211 35 L3

Series Specifications

Dimensional drawing for Turner UCHA211 35 L3

Insert Specifications

Turner UC series bearing insert specifications
