Turner Hanger Bearing - 2-1/4" Bore, Set Screw Locking Collar


Price:
$ 108.58

Description

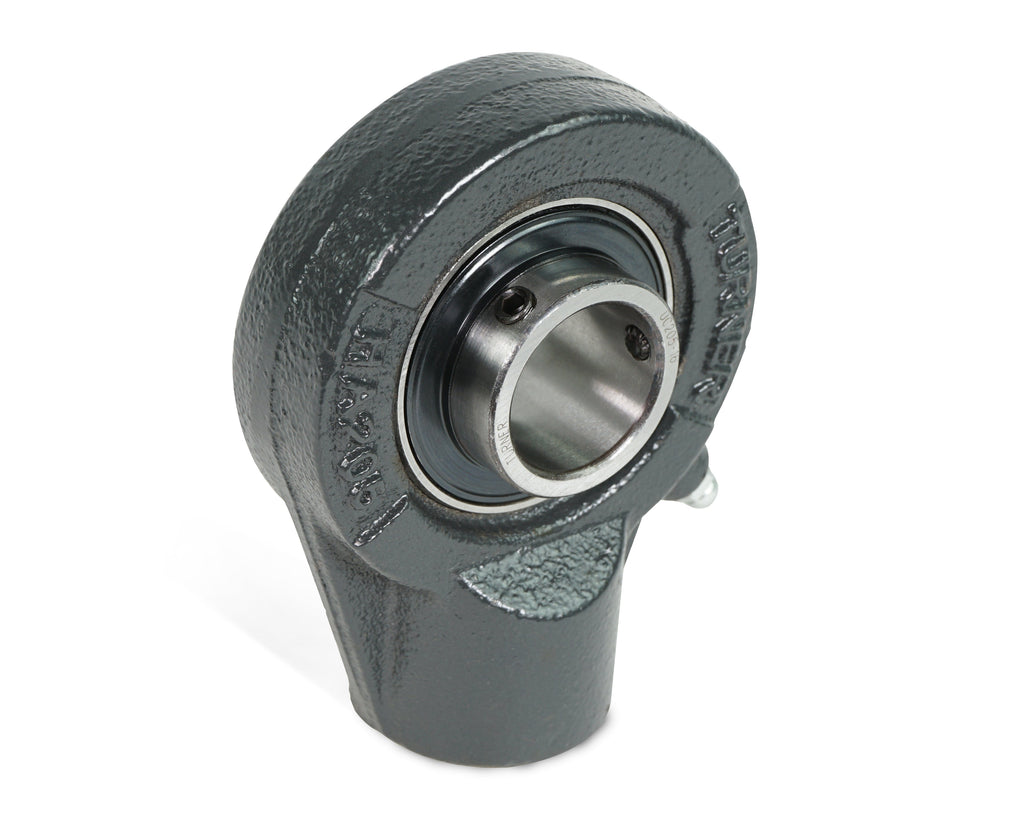

The Turner UCHA212 36 is a hanger bearing mounted bearing unit with a 2-1/4" bore. It features a UC series insert with set screw locking in a cast iron housing. Pre-lubricated and ready for installation.

Product Specifications

Bore Size 2-1/4"
Housing Style Hanger Bearing
Insert Series UC
Shaft Attachment Set Screw
Housing Material Cast Iron
Bearing Type Ball Bearing
Dynamic Load Rating 10,721 lbs
Static Load Rating 7,515 lbs
Limiting Speed 2200 RPM
Bolt Size 5/8"
Duty Level Normal
Part Number UCHA212 36

Series Specifications

Dimensional drawing for Turner UCHA212 36

Insert Specifications

Turner UC series bearing insert specifications
