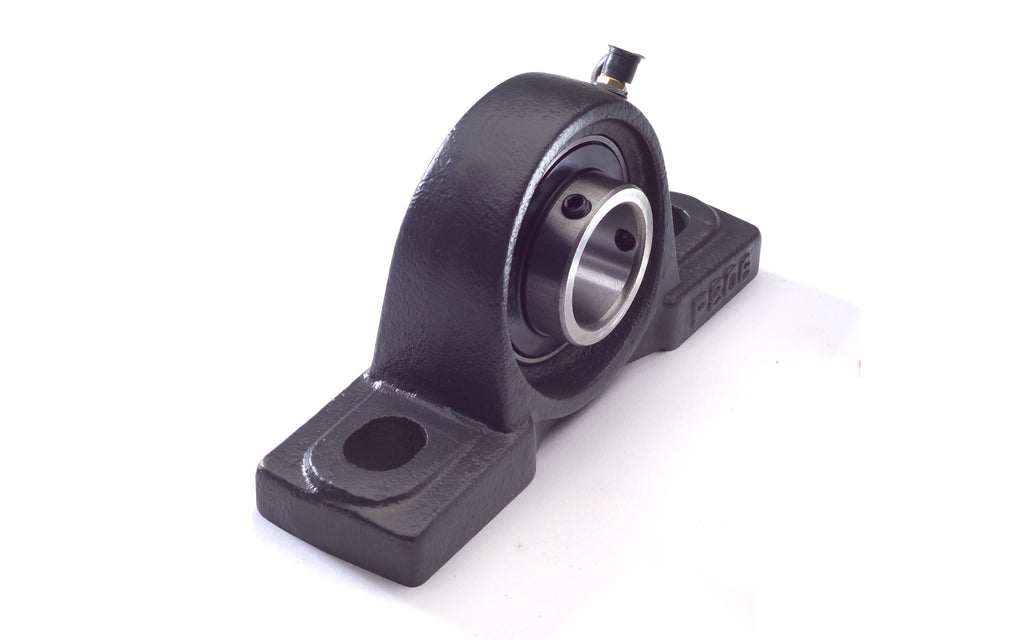

Turner Pillow Block - 2-15/16" Bore, Set Screw Locking Collar


Price:
$ 190.20

Description

The Turner UCP215 47 is a 2-bolt pillow block mounted bearing unit with a 2-15/16" bore. It features a UC series insert with set screw locking in a cast iron housing. Pre-lubricated and ready for installation.

Product Specifications

Bore Size 2-15/16"
Housing Style 2-Bolt Pillow Block
Insert Series UC
Shaft Attachment Set Screw
Housing Material Cast Iron
Bearing Type Ball Bearing
Dynamic Load Rating 14,974 lbs
Static Load Rating 10,757 lbs
Limiting Speed 1500 RPM
Bolt Size 7/8"
Duty Level Normal
Part Number UCP215 47

Series Specifications

Dimensional drawing for Turner UCP215 47

Insert Specifications

Turner UC series bearing insert specifications
