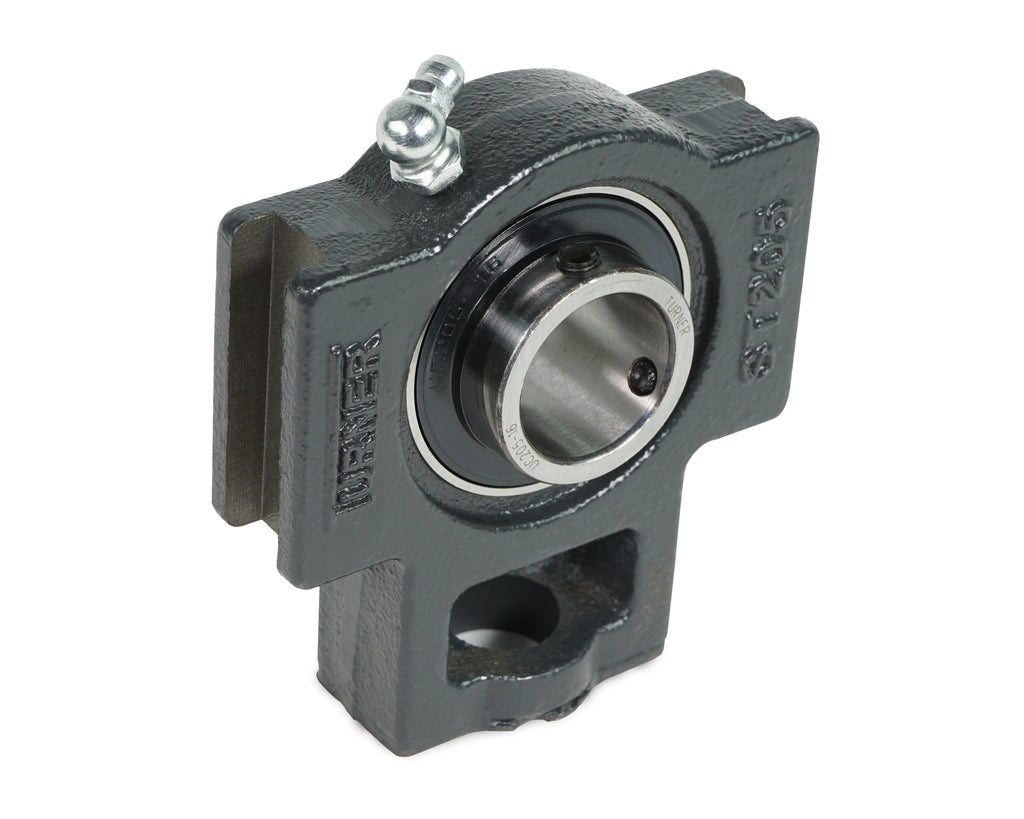

Turner Take-Up Unit - 15/16" Bore, Set Screw Locking Collar


Price:
$ 25.46

Description

The Turner UCST205 15 is a take-up unit mounted bearing unit with a 15/16" bore. It features a UC series insert with set screw locking in a cast iron housing. Pre-lubricated and ready for installation.

Product Specifications

Bore Size 15/16"
Housing Style Take-Up Unit
Insert Series UC
Shaft Attachment Set Screw
Housing Material Cast Iron
Bearing Type Ball Bearing
Dynamic Load Rating 3,156 lbs
Static Load Rating 1,810 lbs
Limiting Speed 6000 RPM
Bolt Size 3/8"
Duty Level Normal
Part Number UCST205 15

Series Specifications

Dimensional drawing for Turner UCST205 15

Insert Specifications

Turner UC series bearing insert specifications
