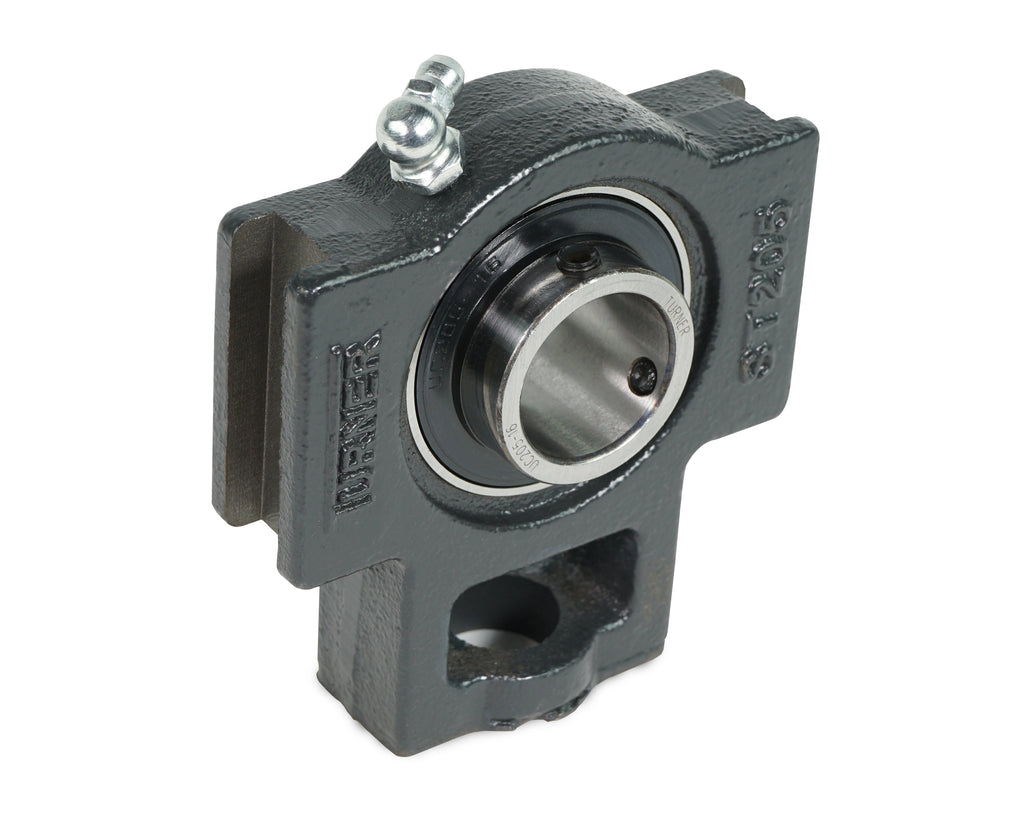

Turner Take-Up Unit - 1-1/2" Bore, Set Screw Locking Collar


Price:
$ 46.43

Description

The Turner UCST208 24 is a take-up unit mounted bearing unit with a 1-1/2" bore. It features a UC series insert with set screw locking in a cast iron housing. Pre-lubricated and ready for installation.

Product Specifications

Bore Size 1-1/2"
Housing Style Take-Up Unit
Insert Series UC
Shaft Attachment Set Screw
Housing Material Cast Iron
Bearing Type Ball Bearing
Dynamic Load Rating 6,634 lbs
Static Load Rating 4,078 lbs
Limiting Speed 4000 RPM
Bolt Size 1/2"
Duty Level Normal
Part Number UCST208 24

Series Specifications

Dimensional drawing for Turner UCST208 24

Insert Specifications

Turner UC series bearing insert specifications
