Turner Tapped Base Pillow Block - 1-3/8" Bore, Set Screw Locking Collar


Price:
$ 38.94

Description

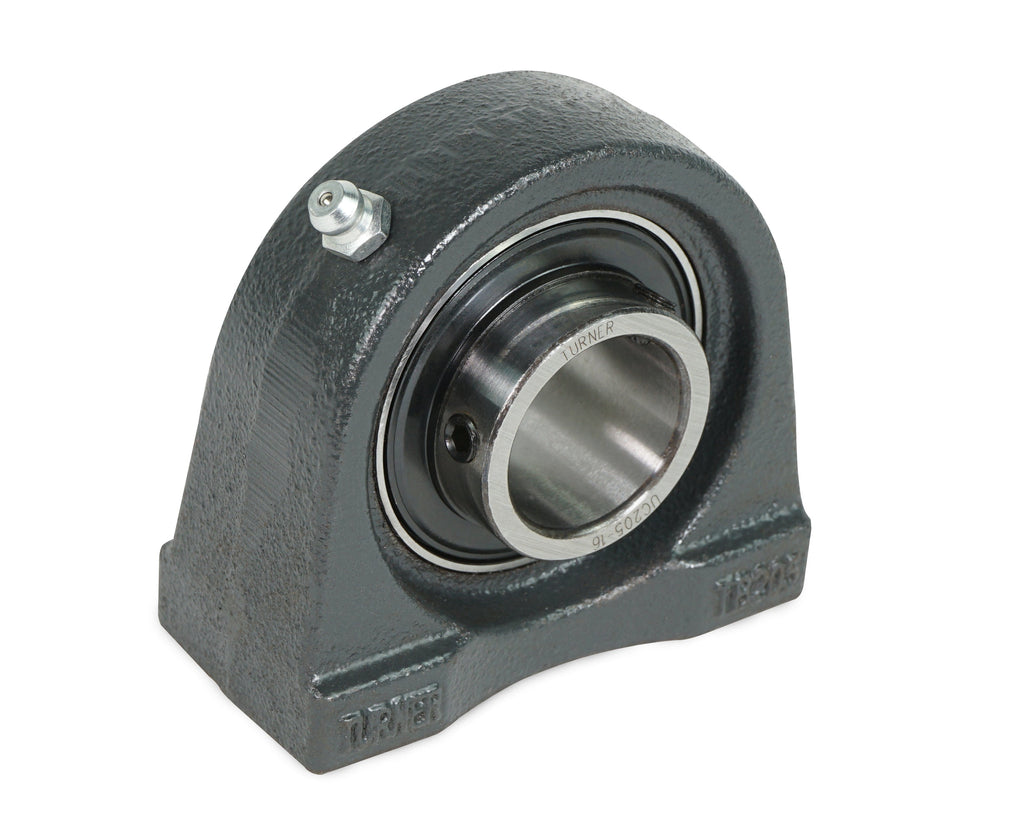

The Turner UCTB207 22 is a tapped base pillow block mounted bearing unit with a 1-3/8" bore. It features a UC series insert with set screw locking in a cast iron housing. Pre-lubricated and ready for installation.

Product Specifications

Bore Size 1-3/8"
Housing Style Tapped Base Pillow Block
Insert Series UC
Shaft Attachment Set Screw
Housing Material Cast Iron
Bearing Type Ball Bearing
Dynamic Load Rating 5,775 lbs
Static Load Rating 3,498 lbs
Limiting Speed 4500 RPM
Bolt Size 1/2"
Duty Level Normal
Part Number UCTB207 22

Series Specifications

Dimensional drawing for Turner UCTB207 22

Insert Specifications

Turner UC series bearing insert specifications
