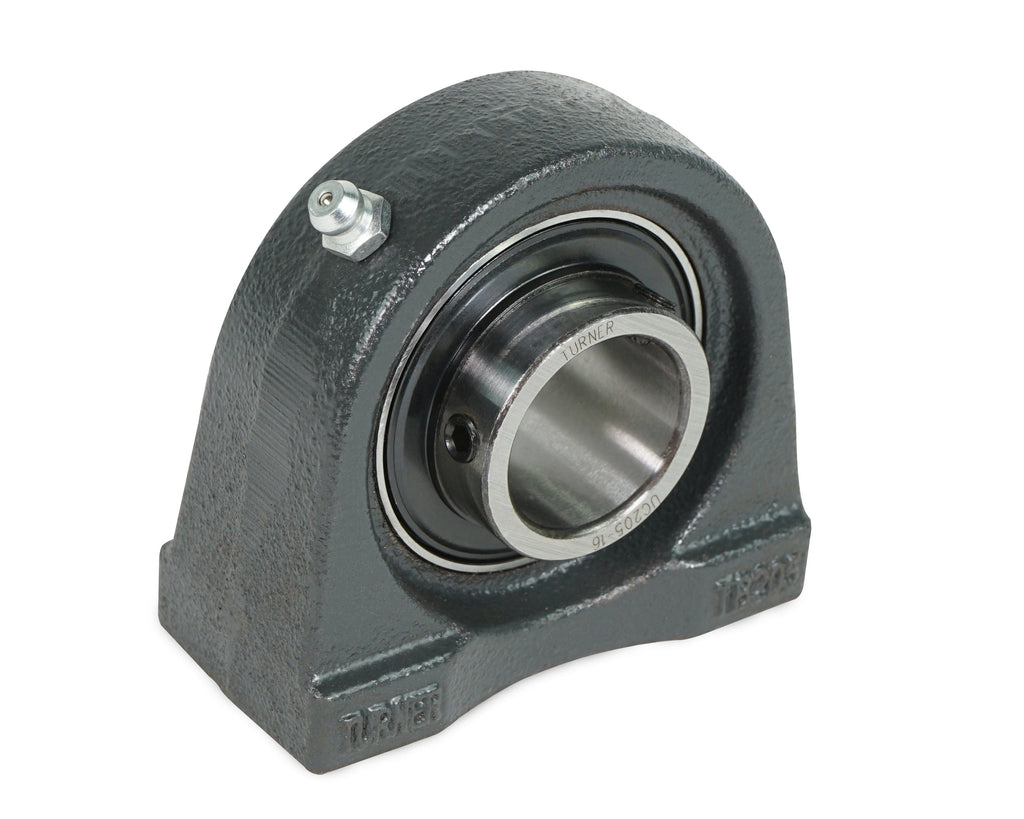

Turner Tapped Base Pillow Block - 50mm Bore, Set Screw Locking Collar


Price:
$ 67.39

Description

The Turner UCTB210 50MM is a tapped base pillow block mounted bearing unit with a 50mm bore. It features a UC series insert with set screw locking in a cast iron housing. Pre-lubricated and ready for installation.

Product Specifications

Bore Size 50mm
Housing Style Tapped Base Pillow Block
Insert Series UC
Shaft Attachment Set Screw
Housing Material Cast Iron
Bearing Type Ball Bearing
Dynamic Load Rating 7,868 lbs
Static Load Rating 5,330 lbs
Limiting Speed 3000 RPM
Bolt Size 5/8"
Duty Level Normal
Part Number UCTB210 50MM

Series Specifications

Dimensional drawing for Turner UCTB210 50MM

Insert Specifications

Turner UC series bearing insert specifications
