Turner Pillow Block - 5/8" Bore, Set Screw Locking Collar - L3 Heavy-Duty Seal


Price:
$ 34.44

Description

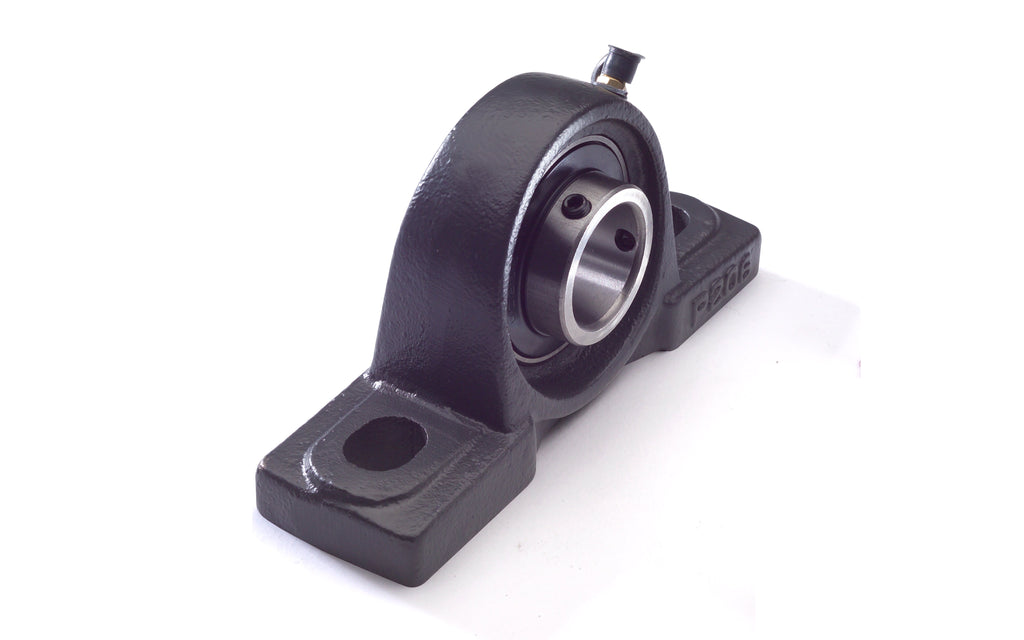

The Turner UCWP203 10 L3 is a 2-bolt pillow block mounted bearing unit with a 5/8" bore. It features a UCW series insert with set screw locking in a cast iron housing. This unit includes enhanced sealing for extended service life.

Product Specifications

Bore Size 5/8"
Housing Style 2-Bolt Pillow Block
Insert Series UCW
Shaft Attachment Set Screw
Housing Material Cast Iron
Bearing Type Ball Bearing
Lubrication / Seal L3 Heavy-Duty
Dynamic Load Rating 2,147 lbs
Static Load Rating 1,075 lbs
Limiting Speed 6000 RPM
Bolt Size 3/8"
Duty Level Normal
Part Number UCWP203 10 L3

Series Specifications

Dimensional drawing for Turner UCWP203 10 L3

Insert Specifications

Turner UCW series bearing insert specifications
