Turner Take-Up Unit - 1-1/4" Bore, Tru-Loc Concentric Clamping Collar


Price:
$ 74.13

Description

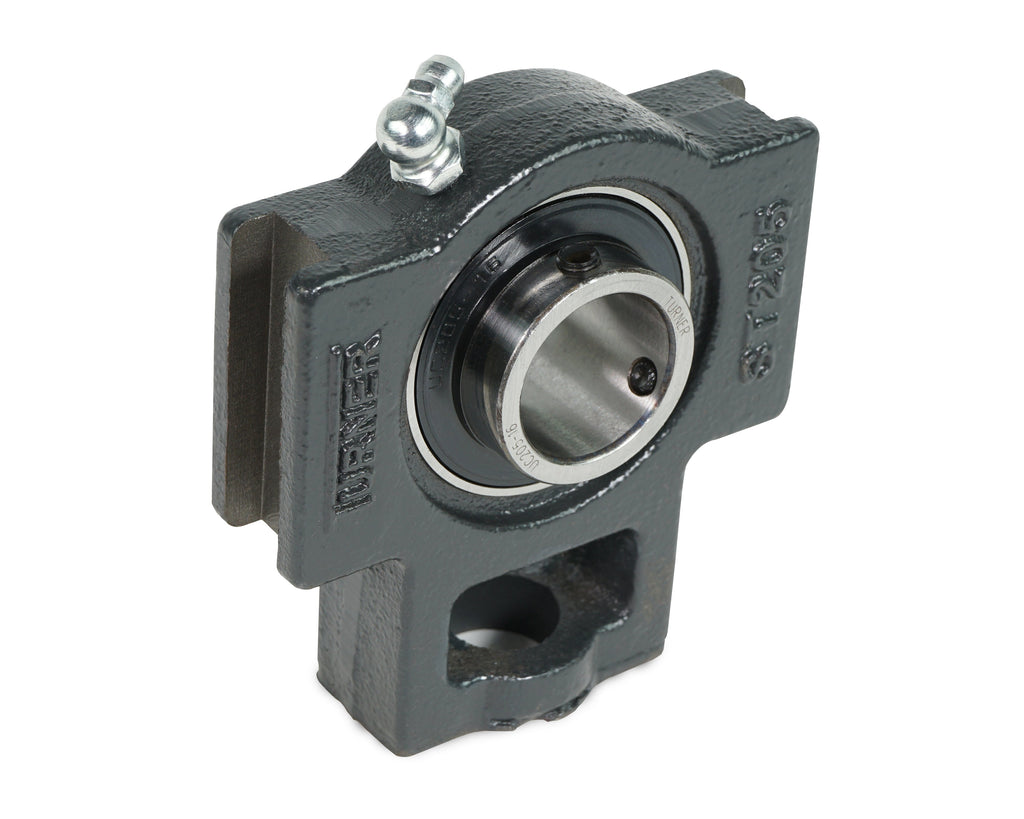

The Turner UEST206 20 is a take-up unit mounted bearing unit with a 1-1/4" bore. It features a UE series insert with tru-loc locking in a cast iron housing. Pre-lubricated and ready for installation.

Product Specifications

Bore Size 1-1/4"
Housing Style Take-Up Unit
Insert Series UE
Shaft Attachment Tru-Loc
Housing Material Cast Iron
Bearing Type Ball Bearing
Dynamic Load Rating 4,377 lbs
Static Load Rating 2,569 lbs
Limiting Speed 5300 RPM
Bolt Size 1/2"
Duty Level Normal
Part Number UEST206 20

Series Specifications

Dimensional drawing for Turner UEST206 20

Insert Specifications

Turner UE series bearing insert specifications
