Description

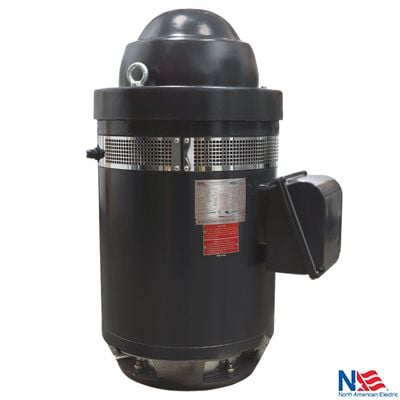

V1-20D4-W25610A — Vertical Hollow Shaft Motor
The V1-20D4-W25610A is a 20 hp, 1800 rpm, 3-phase, 230/460v, 256tp frame, weather protected (wpi) vertical hollow shaft motor for vertical turbine pumps. Weather Protected (WPI) enclosure, 1.15 service factor.
Specifications
| Specification | Value |
|---|---|
| Part Number | V1-20D4-W25610A |
| Horsepower (HP) | 20 |
| Speed (RPM) | 1800 |
| Phase | Three-Phase |
| Voltage | 230/460 |
| Frequency | 60 HZ |
| NEMA Frame | 256TP |
| Enclosure | Weather Protected (WPI) |
| Service Factor | 1.15 |
| Insulation Class | Class F |
| Mounting | P-Base |
| Ingress Protection | IP23 |
| Warranty | Two Year |
Applications
- Vertical turbine pumps
- Deep-well and irrigation pumping
- Municipal water and wastewater
- Hollow-shaft pump drives
Documentation & Downloads
Frequently Asked Questions
What is the V1-20D4-W25610A used for?
The V1-20D4-W25610A is a 20 hp, 1800 rpm, 3-phase, 230/460v, 256tp frame, weather protected (wpi) vertical hollow shaft motor used for vertical turbine pumps and similar loads.
What frame is the V1-20D4-W25610A?
The V1-20D4-W25610A uses a NEMA 256TP frame. Confirm shaft diameter, mounting (base or C-face), and bolt pattern against your existing motor before ordering a replacement.
What voltage does the V1-20D4-W25610A run on?
The V1-20D4-W25610A is rated 230/460V, 3-Phase at 60 HZ. Verify supply voltage and connection against the motor nameplate.
How fast does the V1-20D4-W25610A ship?
Most in-stock units of the V1-20D4-W25610A ship the same or next business day; non-stock items vary. Call (888) 203-2358 to confirm availability and freight.
