V1-50S4-W32616A — Vertical Hollow Shaft Motor


Price:
$ 5,728.55

Description

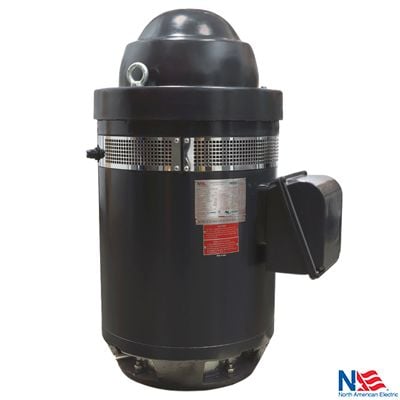

V1-50S4-W32616A — Vertical Hollow Shaft Motor

The V1-50S4-W32616A is a 50 hp, 1800 rpm, 3-phase, 460v, 326tp frame, weather protected (wpi) vertical hollow shaft motor for vertical turbine pumps. Weather Protected (WPI) enclosure, 1.15 service factor.

Specifications

Specification Value
Part Number V1-50S4-W32616A
Horsepower (HP) 50
Speed (RPM) 1800
Phase Three-Phase
Voltage 460
Frequency 60 HZ
NEMA Frame 326TP
Enclosure Weather Protected (WPI)
Service Factor 1.15
Insulation Class Class F
Mounting P-Base
Ingress Protection IP23
Warranty Two Year

Applications

  • Vertical turbine pumps
  • Deep-well and irrigation pumping
  • Municipal water and wastewater
  • Hollow-shaft pump drives

Documentation & Downloads

Frequently Asked Questions

What is the V1-50S4-W32616A used for?

The V1-50S4-W32616A is a 50 hp, 1800 rpm, 3-phase, 460v, 326tp frame, weather protected (wpi) vertical hollow shaft motor used for vertical turbine pumps and similar loads.

What frame is the V1-50S4-W32616A?

The V1-50S4-W32616A uses a NEMA 326TP frame. Confirm shaft diameter, mounting (base or C-face), and bolt pattern against your existing motor before ordering a replacement.

What voltage does the V1-50S4-W32616A run on?

The V1-50S4-W32616A is rated 460V, 3-Phase at 60 HZ. Verify supply voltage and connection against the motor nameplate.

How fast does the V1-50S4-W32616A ship?

Most in-stock units of the V1-50S4-W32616A ship the same or next business day; non-stock items vary. Call (888) 203-2358 to confirm availability and freight.

Need a quote on V1-50S4-W32616A?

Most in-stock items ship same-day — call to confirm availability and freight.

Call (888) 203-2358
