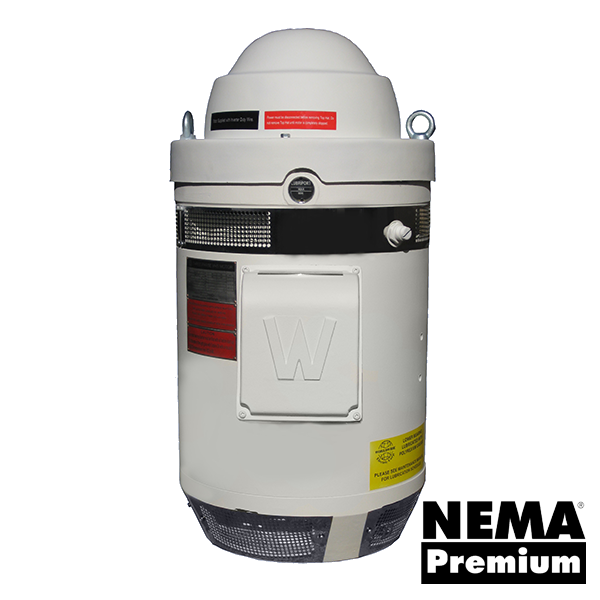

VERTICAL-HOLLOW-SHAFT-MOTOR-75-HP-1800-RPM-460V-365TP-FRAME-P-BASE — Vertical Hollow Shaft Motor


Price:
$ 12,174.45

Description

VERTICAL-HOLLOW-SHAFT-MOTOR-75-HP-1800-RPM-460V-365TP-FRAME-P-BASE — Vertical Hollow Shaft Motor

The VERTICAL-HOLLOW-SHAFT-MOTOR-75-HP-1800-RPM-460V-365TP-FRAME-P-BASE is a 75 hp, 1800 rpm, 3-phase, 460v, 365tp frame, weather protected (wpi) vertical hollow shaft motor for vertical turbine pumps. Weather Protected (WPI) enclosure, 1.15 service factor.

Specifications

Specification Value
Part Number VERTICAL-HOLLOW-SHAFT-MOTOR-75-HP-1800-RPM-460V-365TP-FRAME-P-BASE
Horsepower (HP) 75
Speed (RPM) 1800
Phase Three-Phase
Voltage 460
Frequency 60 HZ
NEMA Frame 365TP
Enclosure Weather Protected (WPI)
Service Factor 1.15
Insulation Class Class F
Ingress Protection IP23
Weight (lbs) 1034
Warranty Two Year

Applications

  • Vertical turbine pumps
  • Deep-well and irrigation pumping
  • Municipal water and wastewater
  • Hollow-shaft pump drives

Frequently Asked Questions

What is the VERTICAL-HOLLOW-SHAFT-MOTOR-75-HP-1800-RPM-460V-365TP-FRAME-P-BASE used for?

The VERTICAL-HOLLOW-SHAFT-MOTOR-75-HP-1800-RPM-460V-365TP-FRAME-P-BASE is a 75 hp, 1800 rpm, 3-phase, 460v, 365tp frame, weather protected (wpi) vertical hollow shaft motor used for vertical turbine pumps and similar loads.

What frame is the VERTICAL-HOLLOW-SHAFT-MOTOR-75-HP-1800-RPM-460V-365TP-FRAME-P-BASE?

The VERTICAL-HOLLOW-SHAFT-MOTOR-75-HP-1800-RPM-460V-365TP-FRAME-P-BASE uses a NEMA 365TP frame. Confirm shaft diameter, mounting (base or C-face), and bolt pattern against your existing motor before ordering a replacement.

What voltage does the VERTICAL-HOLLOW-SHAFT-MOTOR-75-HP-1800-RPM-460V-365TP-FRAME-P-BASE run on?

The VERTICAL-HOLLOW-SHAFT-MOTOR-75-HP-1800-RPM-460V-365TP-FRAME-P-BASE is rated 460V, 3-Phase at 60 HZ. Verify supply voltage and connection against the motor nameplate.

How fast does the VERTICAL-HOLLOW-SHAFT-MOTOR-75-HP-1800-RPM-460V-365TP-FRAME-P-BASE ship?

Most in-stock units of the VERTICAL-HOLLOW-SHAFT-MOTOR-75-HP-1800-RPM-460V-365TP-FRAME-P-BASE ship the same or next business day; non-stock items vary. Call (888) 203-2358 to confirm availability and freight.

Need a quote on VERTICAL-HOLLOW-SHAFT-MOTOR-75-HP-1800-RPM-460V-365TP-FRAME-P-BASE?

Most in-stock items ship same-day — call to confirm availability and freight.

Call (888) 203-2358
