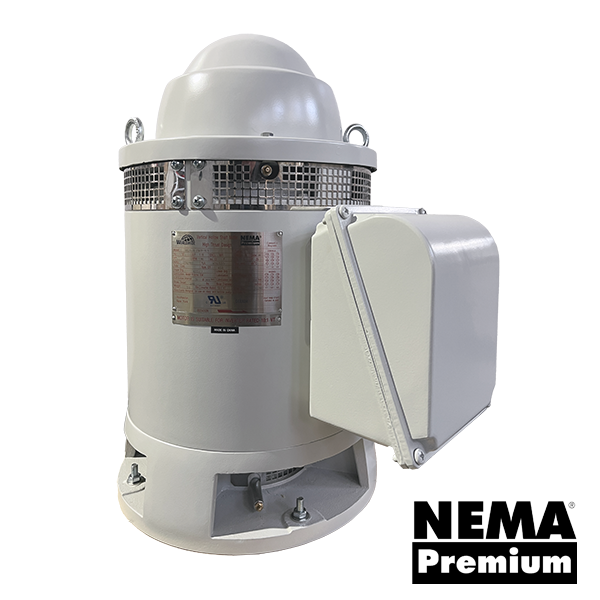

VHS20-18-256TP-16-5 — Vertical Hollow Shaft Motor


Price:
$ 5,032.03

Description

VHS20-18-256TP-16-5 — Vertical Hollow Shaft Motor

The VHS20-18-256TP-16-5 is a 20 hp, 1800 rpm, 3-phase, 230/460v, 256tp frame, weather protected (wpi) vertical hollow shaft motor for vertical turbine pumps. Weather Protected (WPI) enclosure, 1.15 service factor.

Specifications

Specification Value
Part Number VHS20-18-256TP-16-5
Horsepower (HP) 20
Speed (RPM) 1800
Phase Three-Phase
Voltage 230/460
Frequency 60 HZ
NEMA Frame 256TP
Enclosure Weather Protected (WPI)
Service Factor 1.15
Full-Load Efficiency (%) 93.0
Full-Load Amps 23.5
Insulation Class Class F
Mounting P-Base
Ingress Protection IP23
Weight (lbs) 510
Warranty Two Year

Applications

  • Vertical turbine pumps
  • Deep-well and irrigation pumping
  • Municipal water and wastewater
  • Hollow-shaft pump drives

Documentation & Downloads

Frequently Asked Questions

What is the VHS20-18-256TP-16-5 used for?

The VHS20-18-256TP-16-5 is a 20 hp, 1800 rpm, 3-phase, 230/460v, 256tp frame, weather protected (wpi) vertical hollow shaft motor used for vertical turbine pumps and similar loads.

What frame is the VHS20-18-256TP-16-5?

The VHS20-18-256TP-16-5 uses a NEMA 256TP frame. Confirm shaft diameter, mounting (base or C-face), and bolt pattern against your existing motor before ordering a replacement.

What voltage does the VHS20-18-256TP-16-5 run on?

The VHS20-18-256TP-16-5 is rated 230/460V, 3-Phase at 60 HZ. Verify supply voltage and connection against the motor nameplate.

How fast does the VHS20-18-256TP-16-5 ship?

Most in-stock units of the VHS20-18-256TP-16-5 ship the same or next business day; non-stock items vary. Call (888) 203-2358 to confirm availability and freight.
