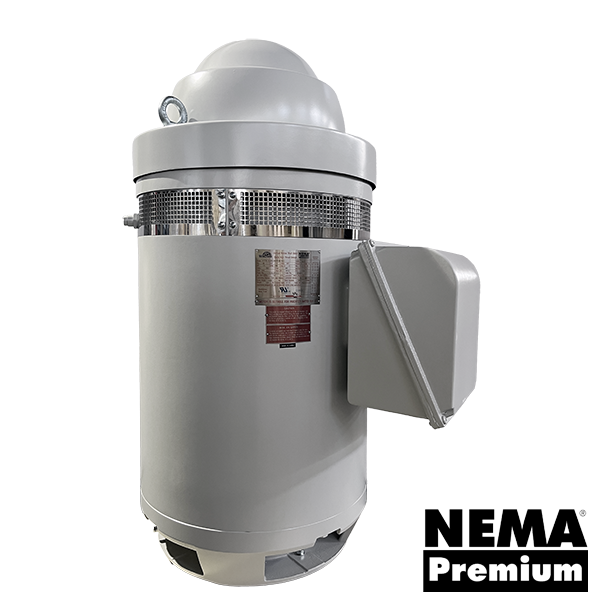

VHS200-18-460-445TP-DB-20 — Vertical Hollow Shaft Motor
The VHS200-18-460-445TP-DB-20 is a 200 hp, 1800 rpm, 3-phase, 460v, 445tp frame, weather protected (wpi) vertical hollow shaft motor for vertical turbine pumps. Weather Protected (WPI) enclosure, 1.15 service factor.
Specifications
| Specification | Value |
|---|---|
| Part Number | VHS200-18-460-445TP-DB-20 |
| Horsepower (HP) | 200 |
| Speed (RPM) | 1800 |
| Phase | Three-Phase |
| Voltage | 460 |
| Frequency | 60 HZ |
| NEMA Frame | 445TP |
| Enclosure | Weather Protected (WPI) |
| Service Factor | 1.15 |
| Full-Load Efficiency (%) | 95.8 |
| Full-Load Amps | 221 |
| Insulation Class | Class F |
| Mounting | P-Base |
| Ingress Protection | IP23 |
| Weight (lbs) | 2099 |
| Warranty | Two Year |
Applications
- Vertical turbine pumps
- Deep-well and irrigation pumping
- Municipal water and wastewater
- Hollow-shaft pump drives
Documentation & Downloads
Frequently Asked Questions
What is the VHS200-18-460-445TP-DB-20 used for?
The VHS200-18-460-445TP-DB-20 is a 200 hp, 1800 rpm, 3-phase, 460v, 445tp frame, weather protected (wpi) vertical hollow shaft motor used for vertical turbine pumps and similar loads.
What frame is the VHS200-18-460-445TP-DB-20?
The VHS200-18-460-445TP-DB-20 uses a NEMA 445TP frame. Confirm shaft diameter, mounting (base or C-face), and bolt pattern against your existing motor before ordering a replacement.
What voltage does the VHS200-18-460-445TP-DB-20 run on?
The VHS200-18-460-445TP-DB-20 is rated 460V, 3-Phase at 60 HZ. Verify supply voltage and connection against the motor nameplate.
