Description

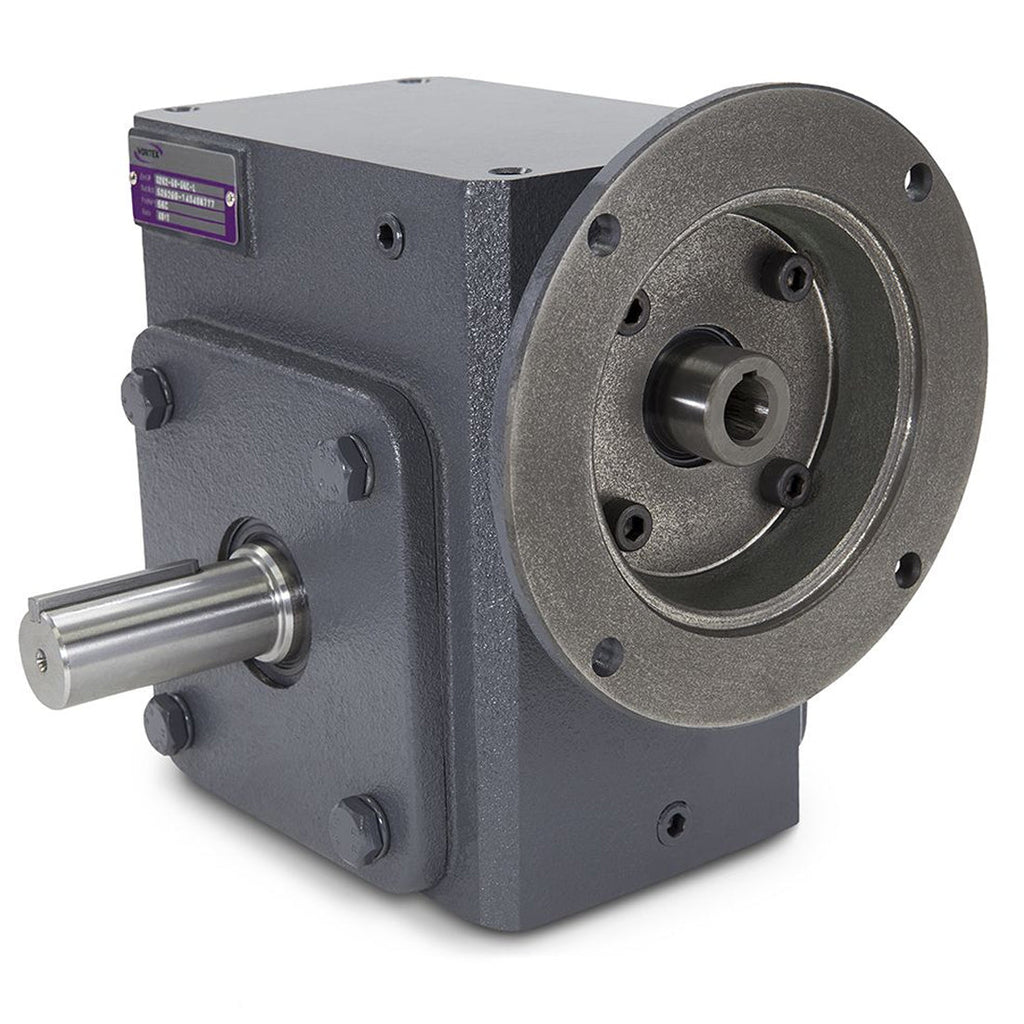

The Vortex X133-5-56C-L is a worm gear speed reducer with a 5:1 nominal ratio (exact ratio 5.5:1), 1.333-inch center distance, and NEMA 56C input flange. Output is a solid 0.625-inch shaft with a 3/16x3/32 keyway, oriented for left-hand output.
Specifications
| Specification | Value |
|---|---|
| Part Number | Vortex X133-5-56C-L |
| Series | Vortex X-Series |
| Nominal Ratio | 5:1 |
| Exact Ratio | 5.5:1 |
| Center Distance | 1.333" |
| NEMA Input Frame | 56C |
| Output Orientation | Left-Hand Output |
| Output Shaft Diameter | 0.625" |
| Output Keyway | 3/16x3/32 |
| Output Torque (1750 RPM input) | 209.0 in-lbs |
| Output Speed (1750 RPM input) | 350.0 RPM |
| Max Input HP (1750 RPM) | 1.15 HP |
| Mechanical Efficiency | 91% at 5:1 |
| Overhung Load Capacity | 300.0 lbs |
| Thrust Capacity | 300.0 lbs |
| Weight | 13.2 lbs |
| Oil Fill Volume | 4.7 oz |
| Housing | Cast iron, painted finish |
| Mounting | Foot-mount standard; flange-mount kit available |
| Shipping | Texas Belting & Supply, Houston, TX |
Downloadable Spec Sheet
Full dimensional drawings, motor mounting dimensions, ratio table with exact ratios and efficiencies, and torque ratings.
Download X133 Spec Sheet (PDF)About This Unit
The Vortex X133-5 is a single-reduction worm gear speed reducer with a NEMA 56C input flange and a solid output shaft. Left-Hand Output. The cast iron housing is sealed for indoor and protected outdoor use. Maximum input speed is 1,750 RPM (standard NEMA motor speed). At 5:1 ratio, this unit delivers approximately 350.0 RPM at the output with mechanical efficiency of 91%.
Typical applications: belt and chain conveyors, mixers and agitators, packaging machinery, indexing tables, pump drives, and OEM equipment requiring a compact sealed gear reducer.
