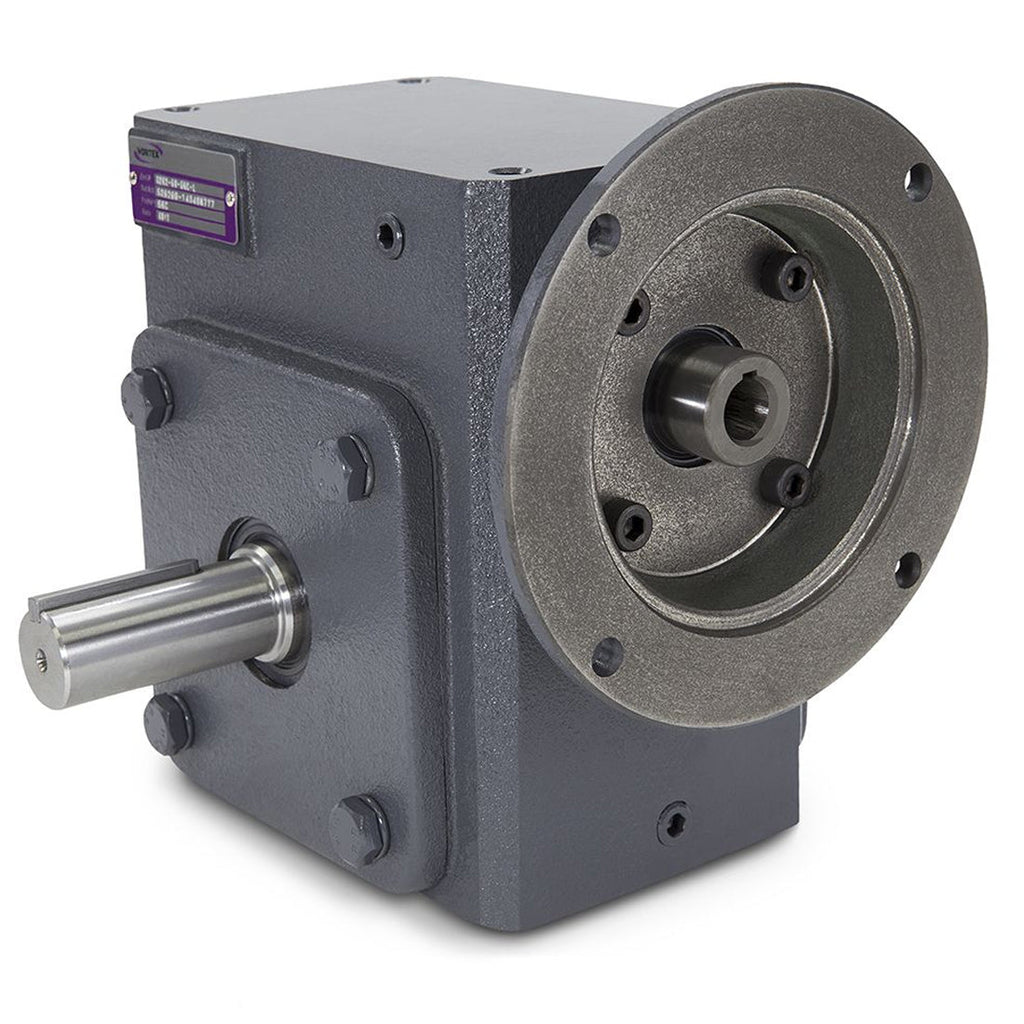

Vortex X133-60-56C-LR Worm Gear Reducer - 60:1 Ratio, 56C NEMA Frame


Price:
$ 286.26

Description

The Vortex X133-60-56C-LR is a worm gear speed reducer with a 60:1 nominal ratio (exact ratio 60.0:1), 1.333-inch center distance, and NEMA 56C input flange. Output is a solid 0.625-inch shaft with a 3/16x3/32 keyway, oriented for double-ended output.

Specifications

Specification Value
Part Number Vortex X133-60-56C-LR
Series Vortex X-Series
Nominal Ratio 60:1
Exact Ratio 60.0:1
Center Distance 1.333"
NEMA Input Frame 56C
Output Orientation Double-Ended Output
Output Shaft Diameter 0.625"
Output Keyway 3/16x3/32
Output Torque (1750 RPM input) 261.0 in-lbs
Output Speed (1750 RPM input) 29.1 RPM
Max Input HP (1750 RPM) 0.23 HP
Mechanical Efficiency 53% at 60:1
Overhung Load Capacity 300.0 lbs
Thrust Capacity 300.0 lbs
Weight 13.2 lbs
Oil Fill Volume 4.7 oz
Housing Cast iron, painted finish
Mounting Foot-mount standard; flange-mount kit available
Shipping Texas Belting & Supply, Houston, TX

Downloadable Spec Sheet

Full dimensional drawings, motor mounting dimensions, ratio table with exact ratios and efficiencies, and torque ratings.

Download X133 Spec Sheet (PDF)

About This Unit

The Vortex X133-60 is a single-reduction worm gear speed reducer with a NEMA 56C input flange and a solid output shaft. Double-Ended Output. The cast iron housing is sealed for indoor and protected outdoor use. Maximum input speed is 1,750 RPM (standard NEMA motor speed). At 60:1 ratio, this unit delivers approximately 29.1 RPM at the output with mechanical efficiency of 53%.

Typical applications: belt and chain conveyors, mixers and agitators, packaging machinery, indexing tables, pump drives, and OEM equipment requiring a compact sealed gear reducer.

Competitor Cross-References

This Vortex X133 cross-references to the following competitive worm gear reducers at the same 1.333-inch center distance. Verify ratio, motor frame, output shaft, and hand of rotation against your existing nameplate before substituting.

Manufacturer Equivalent Part Number
Baldor F913
Boston Gear F713
Cone Drive B02WAN
Dodge Tigear Q133
Dodge Tigear II 13Q
Falk Omnibox 1133WBM
Grove Gear BMQ213
Hub City 134
Morse Invader 713F
Morse Raider 133Q
Winsmith 913MDN

Frequently Asked Questions

What is the exact ratio of the Vortex X133-60?

The nominal ratio is 60:1 and the exact ratio is 60.0:1. At a 1,750 RPM input speed the output speed is 29.1 RPM. Mechanical efficiency at this ratio is approximately 53%.

What does the Vortex X133-60-56C-LR replace?

This unit cross-references to competitive 1.333-inch center distance worm gear reducers including Baldor F913, Boston Gear F713, Cone Drive B02WAN, Dodge Tigear Q133, Dodge Tigear II 13Q. Verify ratio, motor frame, and output direction against the original nameplate before substituting.

Does the Vortex X133-60 ship from Houston?

Yes. The Vortex X133-60 ships from Texas Belting & Supply's Houston, TX warehouse the same business day for orders placed before 3 PM Central time, subject to stock. Call (888) 203-2358 to confirm current inventory.
