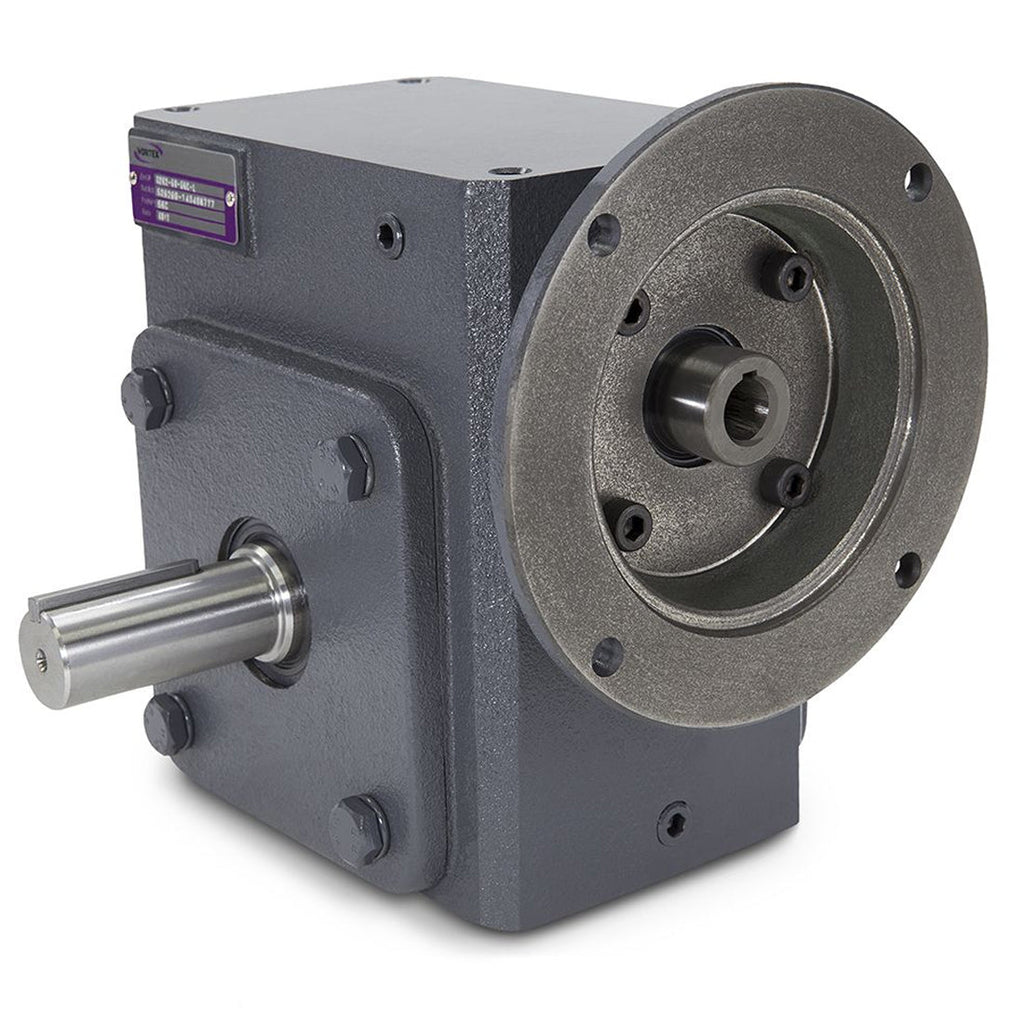

Vortex X175-50-56C-LR Worm Gear Reducer - 50:1 Ratio, 56C NEMA Frame


Price:
$ 346.78

Description

The Vortex X175-50-56C-LR is a worm gear speed reducer with a 50:1 nominal ratio (exact ratio 50.0:1), 1.75-inch center distance, and NEMA 56C input flange. Output is a solid 0.875-inch shaft with a 3/16x3/32 keyway, oriented for double-ended output.

Specifications

Specification Value
Part Number Vortex X175-50-56C-LR
Series Vortex X-Series
Nominal Ratio 50:1
Exact Ratio 50.0:1
Center Distance 1.75"
NEMA Input Frame 56C
Output Orientation Double-Ended Output
Output Shaft Diameter 0.875"
Output Keyway 3/16x3/32
Output Torque (1750 RPM input) 575.0 in-lbs
Output Speed (1750 RPM input) 35.0 RPM
Max Input HP (1750 RPM) 0.5 HP
Mechanical Efficiency 59% at 50:1
Overhung Load Capacity 650.0 lbs
Thrust Capacity 550.0 lbs
Weight 19.8 lbs
Oil Fill Volume 11.8 oz
Housing Cast iron, painted finish
Mounting Foot-mount standard; flange-mount kit available
Shipping Texas Belting & Supply, Houston, TX

Downloadable Spec Sheet

Full dimensional drawings, motor mounting dimensions, ratio table with exact ratios and efficiencies, and torque ratings.

Download X175 Spec Sheet (PDF)

About This Unit

The Vortex X175-50 is a single-reduction worm gear speed reducer with a NEMA 56C input flange and a solid output shaft. Double-Ended Output. The cast iron housing is sealed for indoor and protected outdoor use. Maximum input speed is 1,750 RPM (standard NEMA motor speed). At 50:1 ratio, this unit delivers approximately 35.0 RPM at the output with mechanical efficiency of 59%.

Typical applications: belt and chain conveyors, mixers and agitators, packaging machinery, indexing tables, pump drives, and OEM equipment requiring a compact sealed gear reducer.

Competitor Cross-References

This Vortex X175 cross-references to the following competitive worm gear reducers at the same 1.75-inch center distance. Verify ratio, motor frame, output shaft, and hand of rotation against your existing nameplate before substituting.

Manufacturer Equivalent Part Number
Baldor F918
Boston Gear F718
Cone Drive B04WAN
Dodge Tigear Q175
Dodge Tigear II 17Q
Falk Omnibox 1175WBM
Grove Gear BMQ218
Hub City 184
Morse Invader 718F
Morse Raider 175Q
Ohio Gear BMQ2175
Winsmith 917MDN
