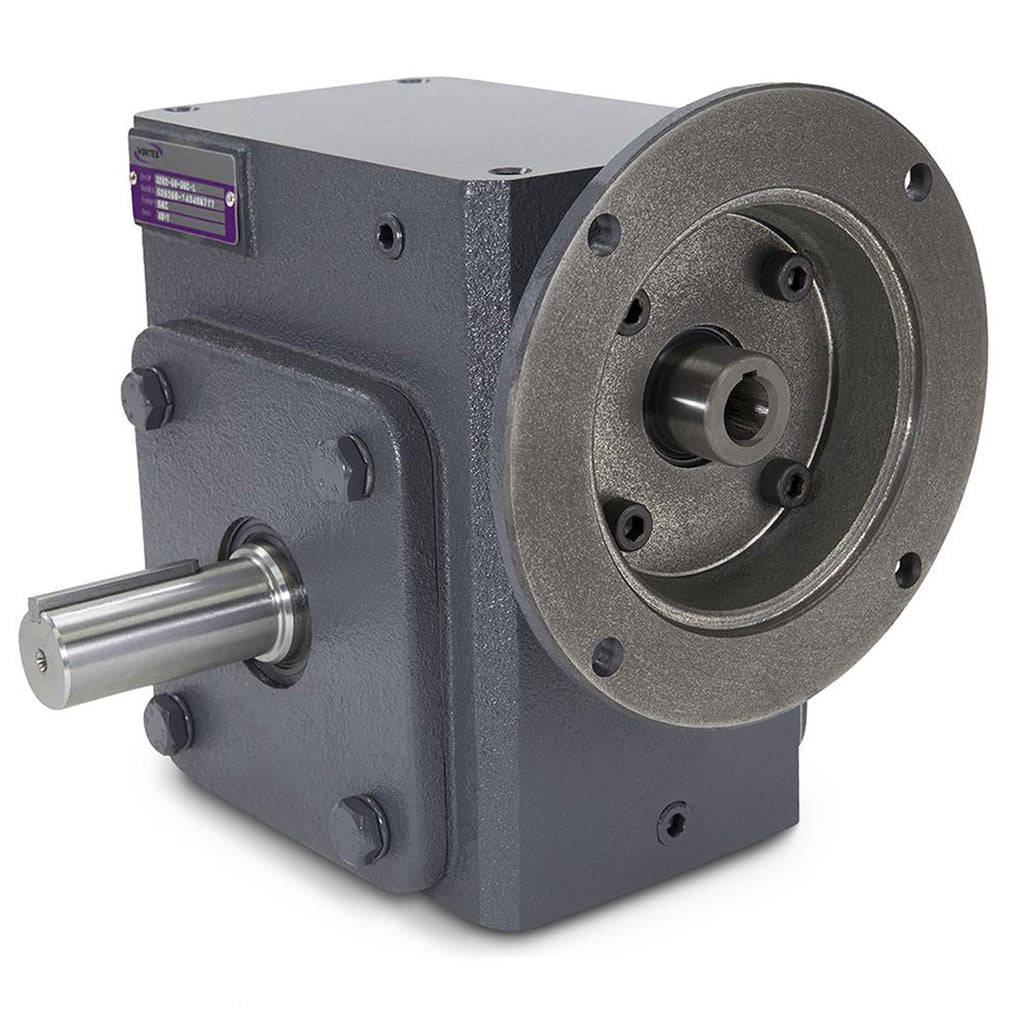

Vortex X206-40-56C-R Worm Gear Reducer - 40:1 Ratio, 56C NEMA Frame


Price:
$ 400.32

Description

The Vortex X206-40-56C-R is a worm gear speed reducer with a 40:1 nominal ratio (exact ratio 40.0:1), 2.062-inch center distance, and NEMA 56C input flange. Output is a solid 1.0-inch shaft with a 1/4x1/8 keyway, oriented for right-hand output.

Specifications

Specification Value
Part Number Vortex X206-40-56C-R
Series Vortex X-Series
Nominal Ratio 40:1
Exact Ratio 40.0:1
Center Distance 2.062"
NEMA Input Frame 56C
Output Orientation Right-Hand Output
Output Shaft Diameter 1.0"
Output Keyway 1/4x1/8
Output Torque (1750 RPM input) 1120.0 in-lbs
Output Speed (1750 RPM input) 43.7 RPM
Max Input HP (1750 RPM) 1.09 HP
Mechanical Efficiency 71% at 40:1
Overhung Load Capacity 700.0 lbs
Thrust Capacity 750.0 lbs
Weight 28.6 lbs
Oil Fill Volume 17.3 oz
Housing Cast iron, painted finish
Mounting Foot-mount standard; flange-mount kit available
Shipping Texas Belting & Supply, Houston, TX

Downloadable Spec Sheet

Full dimensional drawings, motor mounting dimensions, ratio table with exact ratios and efficiencies, and torque ratings.

Download X206 Spec Sheet (PDF)

About This Unit

The Vortex X206-40 is a single-reduction worm gear speed reducer with a NEMA 56C input flange and a solid output shaft. Right-Hand Output. The cast iron housing is sealed for indoor and protected outdoor use. Maximum input speed is 1,750 RPM (standard NEMA motor speed). At 40:1 ratio, this unit delivers approximately 43.7 RPM at the output with mechanical efficiency of 71%.

Typical applications: belt and chain conveyors, mixers and agitators, packaging machinery, indexing tables, pump drives, and OEM equipment requiring a compact sealed gear reducer.

Competitor Cross-References

This Vortex X206 cross-references to the following competitive worm gear reducers at the same 2.062-inch center distance. Verify ratio, motor frame, output shaft, and hand of rotation against your existing nameplate before substituting.

Manufacturer Equivalent Part Number
Baldor F921
Boston Gear F721
Cone Drive B05WAN
Dodge Tigear Q200
Dodge Tigear II 21Q
Falk Omnibox 1206WBM
Grove Gear BMQ221
Hub City 214
Morse Invader 721F
Morse Raider 206Q
Ohio Gear BMQ2206
Winsmith 920MDN

Frequently Asked Questions

What is the exact ratio of the Vortex X206-40?

The nominal ratio is 40:1 and the exact ratio is 40.0:1. At a 1,750 RPM input speed the output speed is 43.7 RPM. Mechanical efficiency at this ratio is approximately 71%.

What does the Vortex X206-40-56C-R replace?

This unit cross-references to competitive 2.062-inch center distance worm gear reducers including Baldor F921, Boston Gear F721, Cone Drive B05WAN, Dodge Tigear Q200, Dodge Tigear II 21Q. Verify ratio, motor frame, and output direction against the original nameplate before substituting.

Does the Vortex X206-40 ship from Houston?

Yes. The Vortex X206-40 ships from Texas Belting & Supply's Houston, TX warehouse the same business day for orders placed before 3 PM Central time, subject to stock. Call (888) 203-2358 to confirm current inventory.

Questions about this Vortex X206-40?

Engineering support and same-day shipping from Houston.

Call (888) 203-2358
