Vortex X237-10-140TC-L Worm Gear Reducer - 10:1 Ratio, 140TC NEMA Frame


Price:
$ 481.78

Description

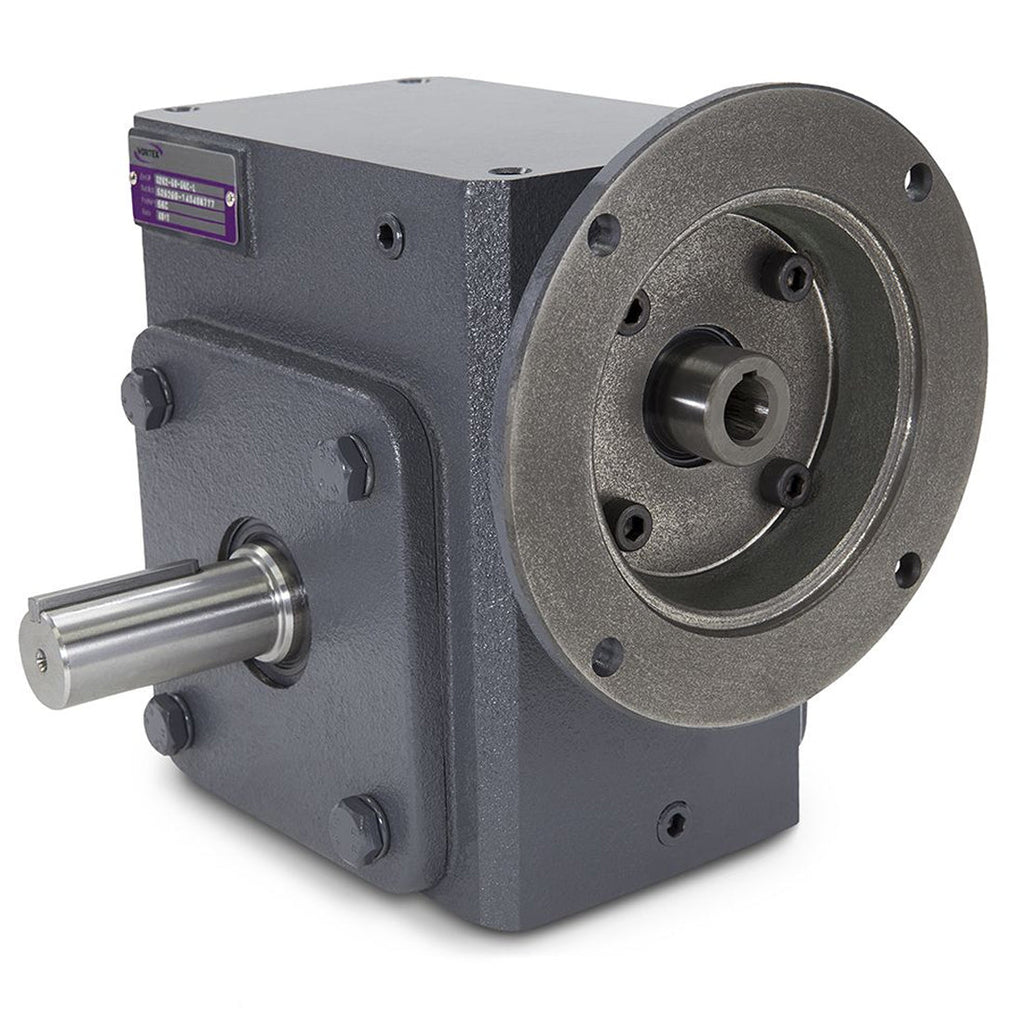

The Vortex X237-10-140TC-L is a worm gear speed reducer with a 10:1 nominal ratio (exact ratio 10.3:1), 2.375-inch center distance, and NEMA 140TC input flange. Output is a solid 1.125-inch shaft with a 1/4x1/8 keyway, oriented for left-hand output.

Specifications

Specification Value
Part Number Vortex X237-10-140TC-L
Series Vortex X-Series
Nominal Ratio 10:1
Exact Ratio 10.3:1
Center Distance 2.375"
NEMA Input Frame 140TC
Output Orientation Left-Hand Output
Output Shaft Diameter 1.125"
Output Keyway 1/4x1/8
Output Torque (1750 RPM input) 1158.0 in-lbs
Output Speed (1750 RPM input) 175.0 RPM
Max Input HP (1750 RPM) 3.47 HP
Mechanical Efficiency 89% at 10:1
Overhung Load Capacity 900.0 lbs
Thrust Capacity 900.0 lbs
Weight 37.4 lbs
Oil Fill Volume 22.0 oz
Housing Cast iron, painted finish
Mounting Foot-mount standard; flange-mount kit available
Shipping Texas Belting & Supply, Houston, TX

Downloadable Spec Sheet

Full dimensional drawings, motor mounting dimensions, ratio table with exact ratios and efficiencies, and torque ratings.

Download X237 Spec Sheet (PDF)

About This Unit

The Vortex X237-10 is a single-reduction worm gear speed reducer with a NEMA 140TC input flange and a solid output shaft. Left-Hand Output. The cast iron housing is sealed for indoor and protected outdoor use. Maximum input speed is 1,750 RPM (standard NEMA motor speed). At 10:1 ratio, this unit delivers approximately 175.0 RPM at the output with mechanical efficiency of 89%.

Typical applications: belt and chain conveyors, mixers and agitators, packaging machinery, indexing tables, pump drives, and OEM equipment requiring a compact sealed gear reducer.

Competitor Cross-References

This Vortex X237 cross-references to the following competitive worm gear reducers at the same 2.375-inch center distance. Verify ratio, motor frame, output shaft, and hand of rotation against your existing nameplate before substituting.

Manufacturer Equivalent Part Number
Baldor F924
Boston Gear F724
Cone Drive B06WAN
Dodge Tigear II 23Q
Falk Omnibox 1238WBM
Grove Gear BMQ224
Hub City 244
Morse Invader 724F
Morse Raider 237Q
Ohio Gear BMQ2238
Winsmith 924MDN

Frequently Asked Questions

What is the exact ratio of the Vortex X237-10?

The nominal ratio is 10:1 and the exact ratio is 10.3:1. At a 1,750 RPM input speed the output speed is 175.0 RPM. Mechanical efficiency at this ratio is approximately 89%.

What does the Vortex X237-10-140TC-L replace?

This unit cross-references to competitive 2.375-inch center distance worm gear reducers including Baldor F924, Boston Gear F724, Cone Drive B06WAN, Dodge Tigear II 23Q, Falk Omnibox 1238WBM. Verify ratio, motor frame, and output direction against the original nameplate before substituting.

Does the Vortex X237-10 ship from Houston?

Yes. The Vortex X237-10 ships from Texas Belting & Supply's Houston, TX warehouse the same business day for orders placed before 3 PM Central time, subject to stock. Call (888) 203-2358 to confirm current inventory.
