Description

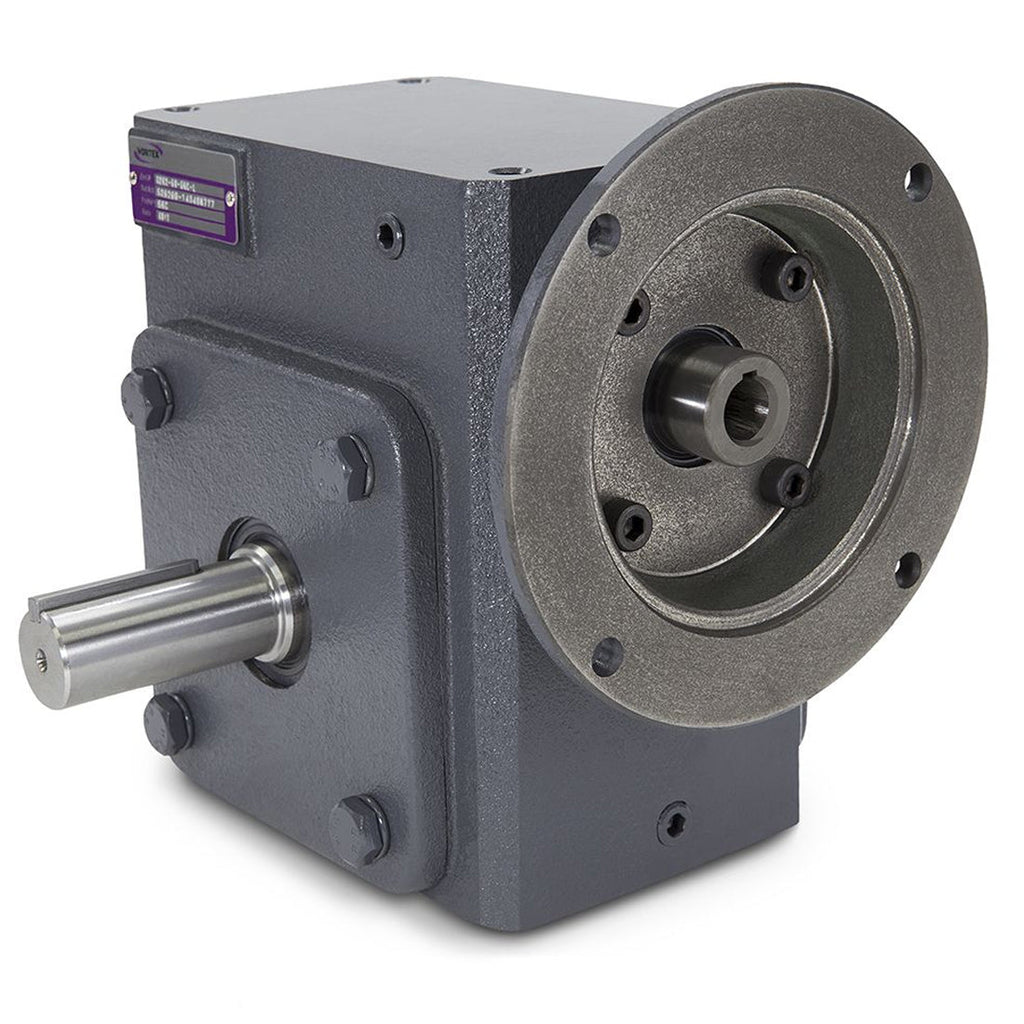

The Vortex X237-5-56C-R is a worm gear speed reducer with a 5:1 nominal ratio (exact ratio 5.3:1), 2.375-inch center distance, and NEMA 56C input flange. Output is a solid 1.125-inch shaft with a 1/4x1/8 keyway, oriented for right-hand output.
Specifications
| Specification | Value |
|---|---|
| Part Number | Vortex X237-5-56C-R |
| Series | Vortex X-Series |
| Nominal Ratio | 5:1 |
| Exact Ratio | 5.3:1 |
| Center Distance | 2.375" |
| NEMA Input Frame | 56C |
| Output Orientation | Right-Hand Output |
| Output Shaft Diameter | 1.125" |
| Output Keyway | 1/4x1/8 |
| Output Torque (1750 RPM input) | 798.0 in-lbs |
| Output Speed (1750 RPM input) | 350.0 RPM |
| Max Input HP (1750 RPM) | 4.57 HP |
| Mechanical Efficiency | 93% at 5:1 |
| Overhung Load Capacity | 900.0 lbs |
| Thrust Capacity | 900.0 lbs |
| Weight | 37.4 lbs |
| Oil Fill Volume | 22.0 oz |
| Housing | Cast iron, painted finish |
| Mounting | Foot-mount standard; flange-mount kit available |
| Shipping | Texas Belting & Supply, Houston, TX |
Downloadable Spec Sheet
Full dimensional drawings, motor mounting dimensions, ratio table with exact ratios and efficiencies, and torque ratings.
Download X237 Spec Sheet (PDF)About This Unit
The Vortex X237-5 is a single-reduction worm gear speed reducer with a NEMA 56C input flange and a solid output shaft. Right-Hand Output. The cast iron housing is sealed for indoor and protected outdoor use. Maximum input speed is 1,750 RPM (standard NEMA motor speed). At 5:1 ratio, this unit delivers approximately 350.0 RPM at the output with mechanical efficiency of 93%.
Typical applications: belt and chain conveyors, mixers and agitators, packaging machinery, indexing tables, pump drives, and OEM equipment requiring a compact sealed gear reducer.
