Description

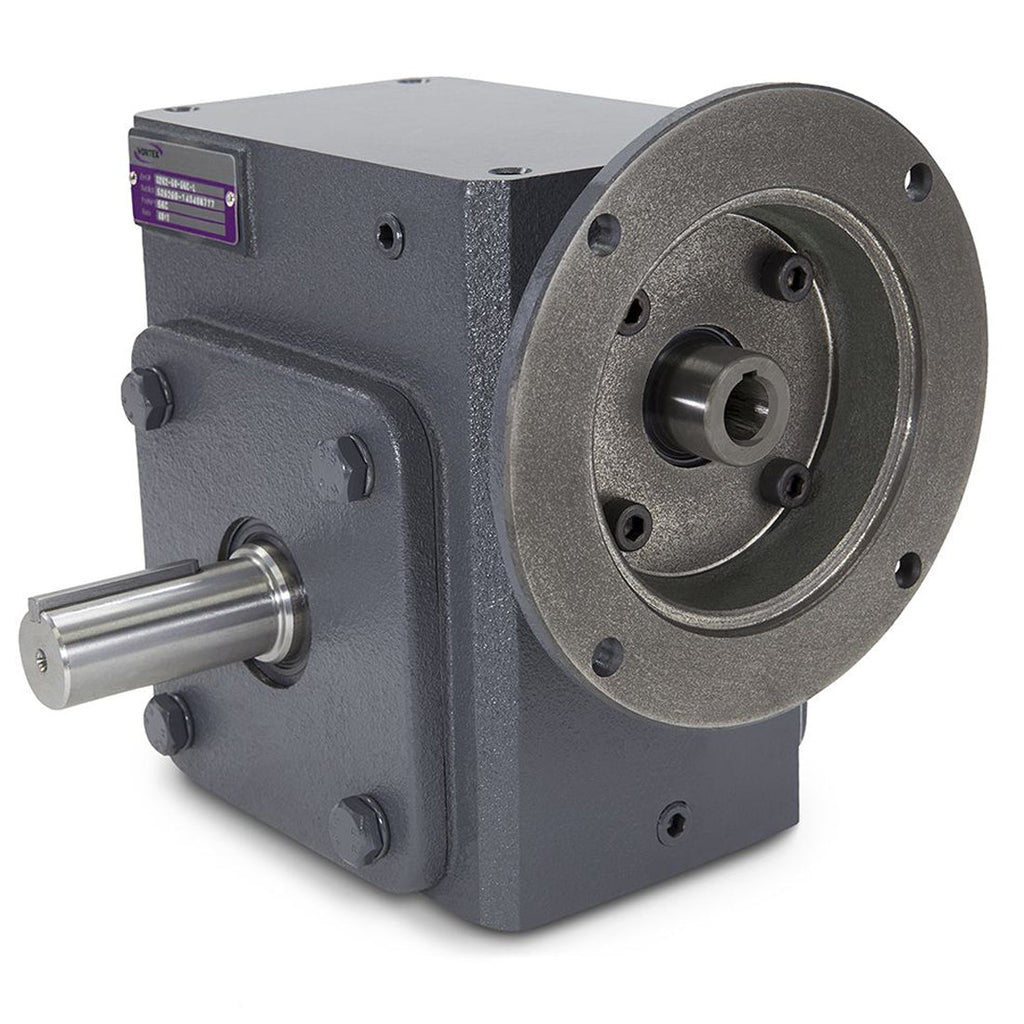

The Vortex X262-15-56C-L is a worm gear speed reducer with a 15:1 nominal ratio (exact ratio 15.5:1), 2.625-inch center distance, and NEMA 56C input flange. Output is a solid 1.125-inch shaft with a 1/4x1/8 keyway, oriented for left-hand output.
Specifications
| Specification | Value |
|---|---|
| Part Number | Vortex X262-15-56C-L |
| Series | Vortex X-Series |
| Nominal Ratio | 15:1 |
| Exact Ratio | 15.5:1 |
| Center Distance | 2.625" |
| NEMA Input Frame | 56C |
| Output Orientation | Left-Hand Output |
| Output Shaft Diameter | 1.125" |
| Output Keyway | 1/4x1/8 |
| Output Torque (1750 RPM input) | 1577.0 in-lbs |
| Output Speed (1750 RPM input) | 116.6 RPM |
| Max Input HP (1750 RPM) | 3.22 HP |
| Mechanical Efficiency | 87% at 15:1 |
| Overhung Load Capacity | 1000.0 lbs |
| Thrust Capacity | 1000.0 lbs |
| Weight | 48.4 lbs |
| Oil Fill Volume | 33.8 oz |
| Housing | Cast iron, painted finish |
| Mounting | Foot-mount standard; flange-mount kit available |
| Shipping | Texas Belting & Supply, Houston, TX |
Downloadable Spec Sheet
Full dimensional drawings, motor mounting dimensions, ratio table with exact ratios and efficiencies, and torque ratings.
Download X262 Spec Sheet (PDF)About This Unit
The Vortex X262-15 is a single-reduction worm gear speed reducer with a NEMA 56C input flange and a solid output shaft. Left-Hand Output. The cast iron housing is sealed for indoor and protected outdoor use. Maximum input speed is 1,750 RPM (standard NEMA motor speed). At 15:1 ratio, this unit delivers approximately 116.6 RPM at the output with mechanical efficiency of 87%.
Typical applications: belt and chain conveyors, mixers and agitators, packaging machinery, indexing tables, pump drives, and OEM equipment requiring a compact sealed gear reducer.
Competitor Cross-References
This Vortex X262 cross-references to the following competitive worm gear reducers at the same 2.625-inch center distance. Verify ratio, motor frame, output shaft, and hand of rotation against your existing nameplate before substituting.
| Manufacturer | Equivalent Part Number |
|---|---|
| Baldor | F926 |
| Boston Gear | F726 |
| Cone Drive | B08WAN |
| Dodge Tigear | Q262 |
| Dodge Tigear II | 26Q |
| Falk Omnibox | 1262WBM |
| Grove Gear | BMQ226 |
| Hub City | 264 |
| Morse Invader | 726F |
| Morse Raider | 262Q |
| Ohio Gear | BMQ2262 |
| Winsmith | 926MDN |
