Vortex X262-5-56C-R Worm Gear Reducer - 5:1 Ratio, 56C NEMA Frame


Price:
$ 519

Description

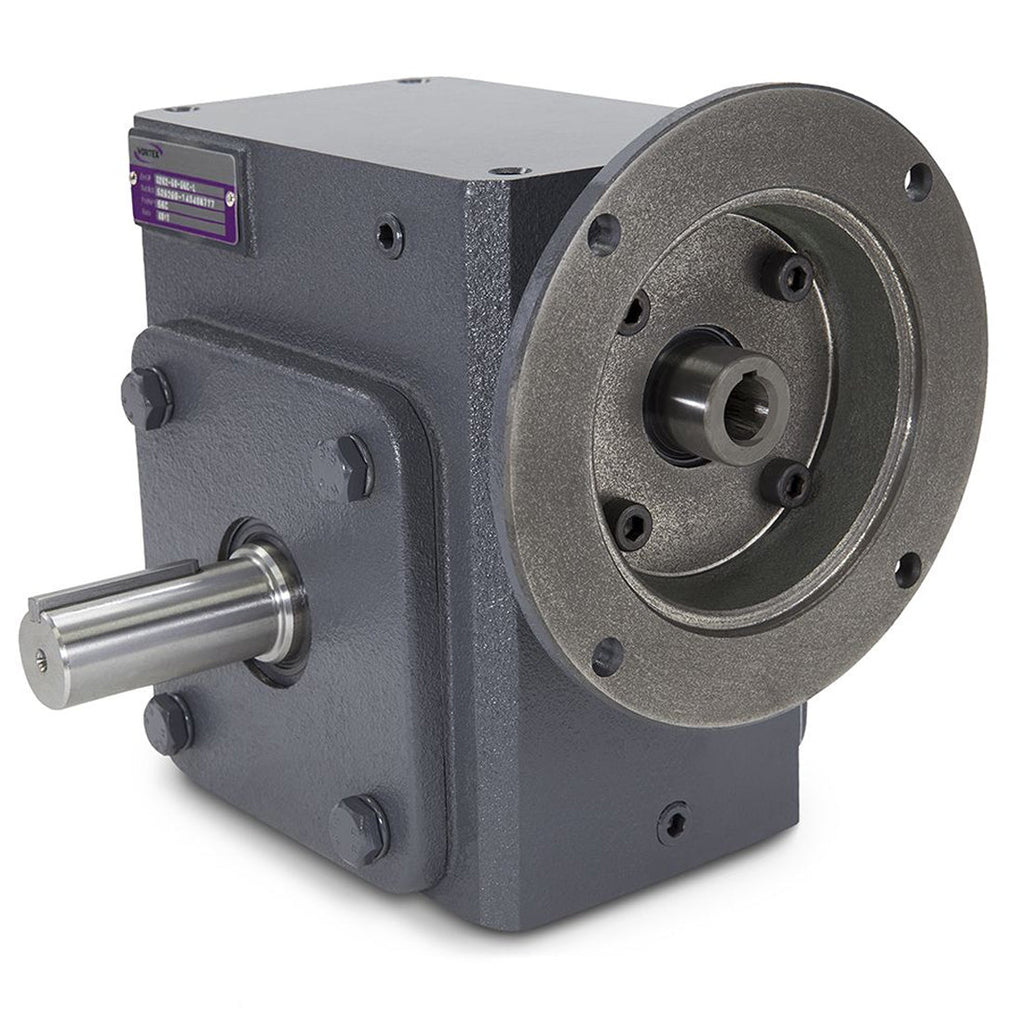

The Vortex X262-5-56C-R is a worm gear speed reducer with a 5:1 nominal ratio (exact ratio 5.3:1), 2.625-inch center distance, and NEMA 56C input flange. Output is a solid 1.125-inch shaft with a 1/4x1/8 keyway, oriented for right-hand output.

Specifications

Specification Value
Part Number Vortex X262-5-56C-R
Series Vortex X-Series
Nominal Ratio 5:1
Exact Ratio 5.3:1
Center Distance 2.625"
NEMA Input Frame 56C
Output Orientation Right-Hand Output
Output Shaft Diameter 1.125"
Output Keyway 1/4x1/8
Output Torque (1750 RPM input) 924.0 in-lbs
Output Speed (1750 RPM input) 350.0 RPM
Max Input HP (1750 RPM) 5.24 HP
Mechanical Efficiency 93% at 5:1
Overhung Load Capacity 1000.0 lbs
Thrust Capacity 1000.0 lbs
Weight 48.4 lbs
Oil Fill Volume 33.8 oz
Housing Cast iron, painted finish
Mounting Foot-mount standard; flange-mount kit available
Shipping Texas Belting & Supply, Houston, TX

Downloadable Spec Sheet

Full dimensional drawings, motor mounting dimensions, ratio table with exact ratios and efficiencies, and torque ratings.

Download X262 Spec Sheet (PDF)

About This Unit

The Vortex X262-5 is a single-reduction worm gear speed reducer with a NEMA 56C input flange and a solid output shaft. Right-Hand Output. The cast iron housing is sealed for indoor and protected outdoor use. Maximum input speed is 1,750 RPM (standard NEMA motor speed). At 5:1 ratio, this unit delivers approximately 350.0 RPM at the output with mechanical efficiency of 93%.

Typical applications: belt and chain conveyors, mixers and agitators, packaging machinery, indexing tables, pump drives, and OEM equipment requiring a compact sealed gear reducer.

Competitor Cross-References

This Vortex X262 cross-references to the following competitive worm gear reducers at the same 2.625-inch center distance. Verify ratio, motor frame, output shaft, and hand of rotation against your existing nameplate before substituting.

Manufacturer Equivalent Part Number
Baldor F926
Boston Gear F726
Cone Drive B08WAN
Dodge Tigear Q262
Dodge Tigear II 26Q
Falk Omnibox 1262WBM
Grove Gear BMQ226
Hub City 264
Morse Invader 726F
Morse Raider 262Q
Ohio Gear BMQ2262
Winsmith 926MDN

Frequently Asked Questions

What is the exact ratio of the Vortex X262-5?

The nominal ratio is 5:1 and the exact ratio is 5.3:1. At a 1,750 RPM input speed the output speed is 350.0 RPM. Mechanical efficiency at this ratio is approximately 93%.

What does the Vortex X262-5-56C-R replace?

This unit cross-references to competitive 2.625-inch center distance worm gear reducers including Baldor F926, Boston Gear F726, Cone Drive B08WAN, Dodge Tigear Q262, Dodge Tigear II 26Q. Verify ratio, motor frame, and output direction against the original nameplate before substituting.

Does the Vortex X262-5 ship from Houston?

Yes. The Vortex X262-5 ships from Texas Belting & Supply's Houston, TX warehouse the same business day for orders placed before 3 PM Central time, subject to stock. Call (888) 203-2358 to confirm current inventory.
