Vortex X325-50-140TC-L Worm Gear Reducer - 50:1 Ratio, 140TC NEMA Frame


Price:
$ 733.13

Description

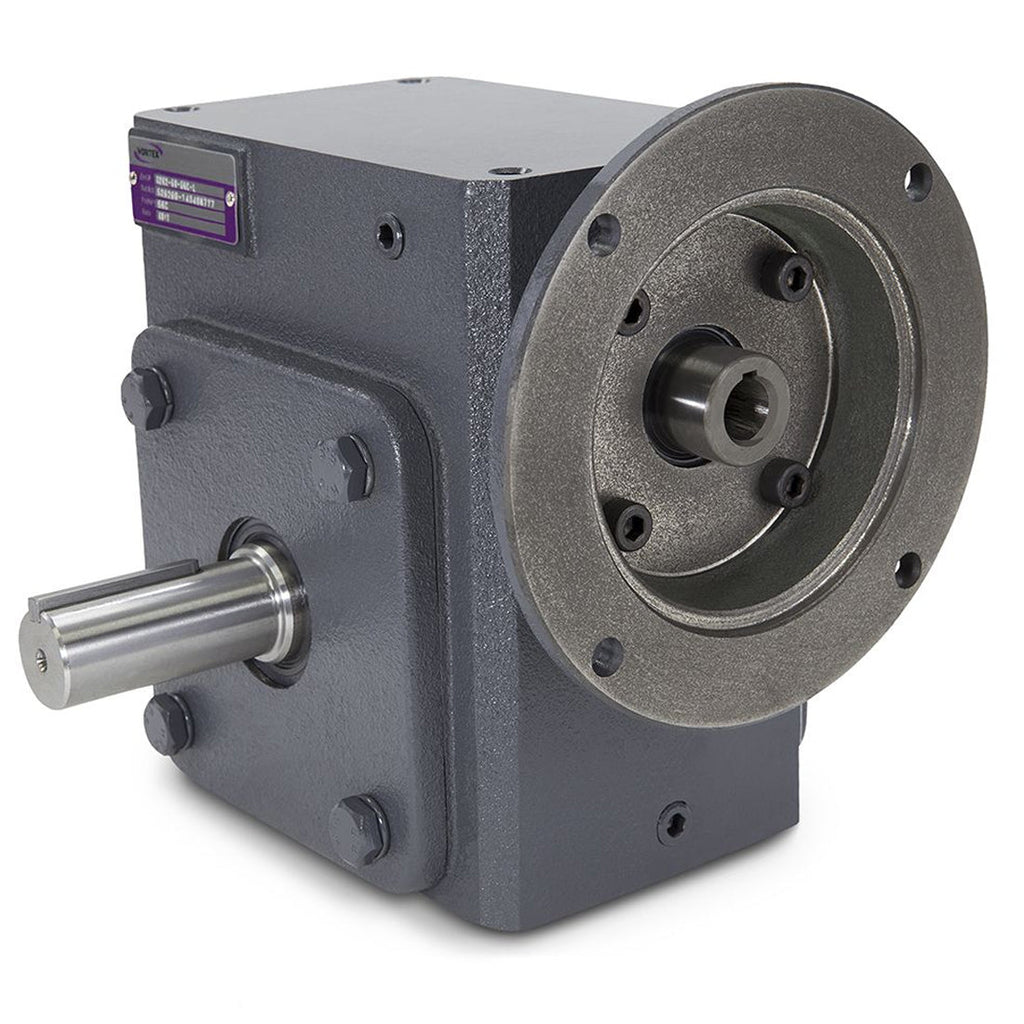

The Vortex X325-50-140TC-L is a worm gear speed reducer with a 50:1 nominal ratio (exact ratio 50.0:1), 3.25-inch center distance, and NEMA 140TC input flange. Output is a solid 1.375-inch shaft with a 5/16x5/32 keyway, oriented for left-hand output.

Specifications

Specification Value
Part Number Vortex X325-50-140TC-L
Series Vortex X-Series
Nominal Ratio 50:1
Exact Ratio 50.0:1
Center Distance 3.25"
NEMA Input Frame 140TC
Output Orientation Left-Hand Output
Output Shaft Diameter 1.375"
Output Keyway 5/16x5/32
Output Torque (1750 RPM input) 3413.0 in-lbs
Output Speed (1750 RPM input) 35.0 RPM
Max Input HP (1750 RPM) 2.49 HP
Mechanical Efficiency 76% at 50:1
Overhung Load Capacity 1200.0 lbs
Thrust Capacity 1100.0 lbs
Weight 74.8 lbs
Oil Fill Volume 70.0 oz
Housing Cast iron, painted finish
Mounting Foot-mount standard; flange-mount kit available
Shipping Texas Belting & Supply, Houston, TX

Downloadable Spec Sheet

Full dimensional drawings, motor mounting dimensions, ratio table with exact ratios and efficiencies, and torque ratings.

Download X325 Spec Sheet (PDF)

About This Unit

The Vortex X325-50 is a single-reduction worm gear speed reducer with a NEMA 140TC input flange and a solid output shaft. Left-Hand Output. The cast iron housing is sealed for indoor and protected outdoor use. Maximum input speed is 1,750 RPM (standard NEMA motor speed). At 50:1 ratio, this unit delivers approximately 35.0 RPM at the output with mechanical efficiency of 76%.

Typical applications: belt and chain conveyors, mixers and agitators, packaging machinery, indexing tables, pump drives, and OEM equipment requiring a compact sealed gear reducer.
