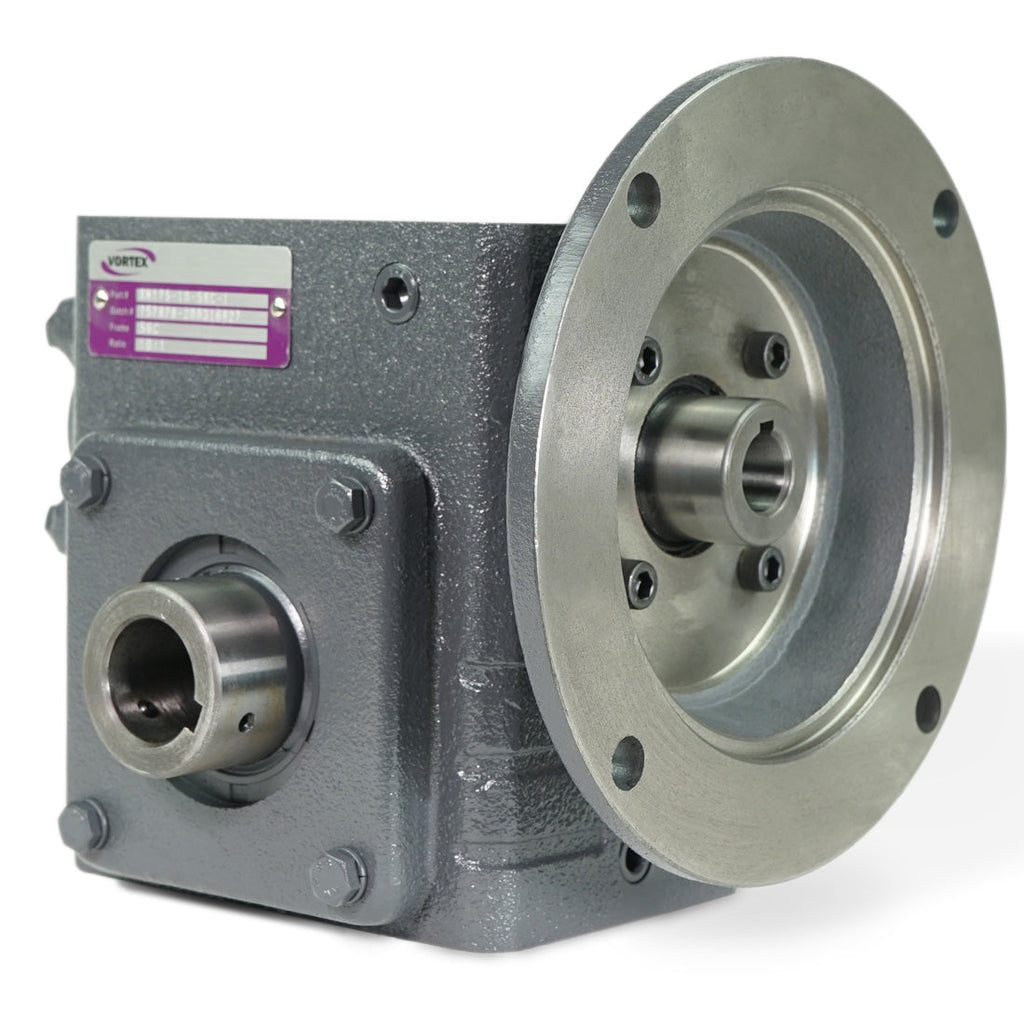

Vortex XH154-20-56C-.625 Hollow Shaft Worm Gear Reducer - 20:1 Ratio, .625" Bore


Price:
$ 386.84

Description

The Vortex XH154-20-56C-.625 is a hollow shaft worm gear speed reducer with a 20:1 nominal ratio (exact ratio 20.0:1) and 1.54-inch center distance. The NEMA 56C input flange accepts a standard C-face motor, and the .625-inch hollow output bore (keyway: 3/16x3/32) slides directly over the driven shaft for conveyor head, mixer, and similar direct-mount applications.

Specifications

Specification Value
Part Number Vortex XH154-20-56C-.625
Series Vortex XH-Series
Nominal Ratio 20:1
Exact Ratio 20.0:1
Center Distance 1.54"
NEMA Input Frame 56C
Hollow Output Bore .625"
Output Keyway 3/16x3/32
Output Torque (1750 RPM input) 384.0 in-lbs
Output Speed (1750 RPM input) 87.5 RPM
Max Input HP (1750 RPM) 0.65 HP
Mechanical Efficiency 81% at 20:1
Overhung Load Capacity 450.0 lbs
Thrust Capacity 400.0 lbs
Housing Cast iron, painted finish
Mounting Foot-mount standard; flange-mount kit available
Shipping Texas Belting & Supply, Houston, TX

Downloadable Spec Sheet

Full dimensional drawings, motor mounting dimensions, ratio table with exact ratios and efficiencies, and torque ratings.

Download XH154 Spec Sheet (PDF)

About This Unit

The Vortex XH154-20 is a worm gear speed reducer with a NEMA 56C input flange and a .625-inch hollow output bore for direct shaft mounting. The cast iron housing is sealed for indoor and protected outdoor use. Maximum input speed is 1,750 RPM (standard NEMA motor speed). At 20:1 ratio, this unit delivers approximately 87.5 RPM at the output with mechanical efficiency of 81%.

Typical applications: belt and chain conveyors, mixers and agitators, packaging machinery, indexing tables, pump drives, and OEM equipment requiring a compact sealed gear reducer.

Competitor Cross-References

This Vortex XH154 cross-references to the following competitive worm gear reducers at the same 1.54-inch center distance. Verify ratio, motor frame, output shaft, and hand of rotation against your existing nameplate before substituting.

Manufacturer Equivalent Part Number
Baldor F915
Boston Gear F715
Cone Drive B03WAN
Dodge Tigear II 15Q
Falk Omnibox 1154WBM
Grove Gear BMQ215
Hub City 154
Morse Invader 715F
Morse Raider 154Q

Frequently Asked Questions

What is the exact ratio of the Vortex XH154-20?

The nominal ratio is 20:1 and the exact ratio is 20.0:1. At a 1,750 RPM input speed the output speed is 87.5 RPM. Mechanical efficiency at this ratio is approximately 81%.

What does the Vortex XH154-20-56C-.625 replace?

This unit cross-references to competitive 1.54-inch center distance worm gear reducers including Baldor F915, Boston Gear F715, Cone Drive B03WAN, Dodge Tigear II 15Q, Falk Omnibox 1154WBM. Verify ratio, motor frame, and output direction against the original nameplate before substituting.

Does the Vortex XH154-20 ship from Houston?

Yes. The Vortex XH154-20 ships from Texas Belting & Supply's Houston, TX warehouse the same business day for orders placed before 3 PM Central time, subject to stock. Call (888) 203-2358 to confirm current inventory.

Questions about this Vortex XH154-20?

Engineering support and same-day shipping from Houston.

Call (888) 203-2358
