Description

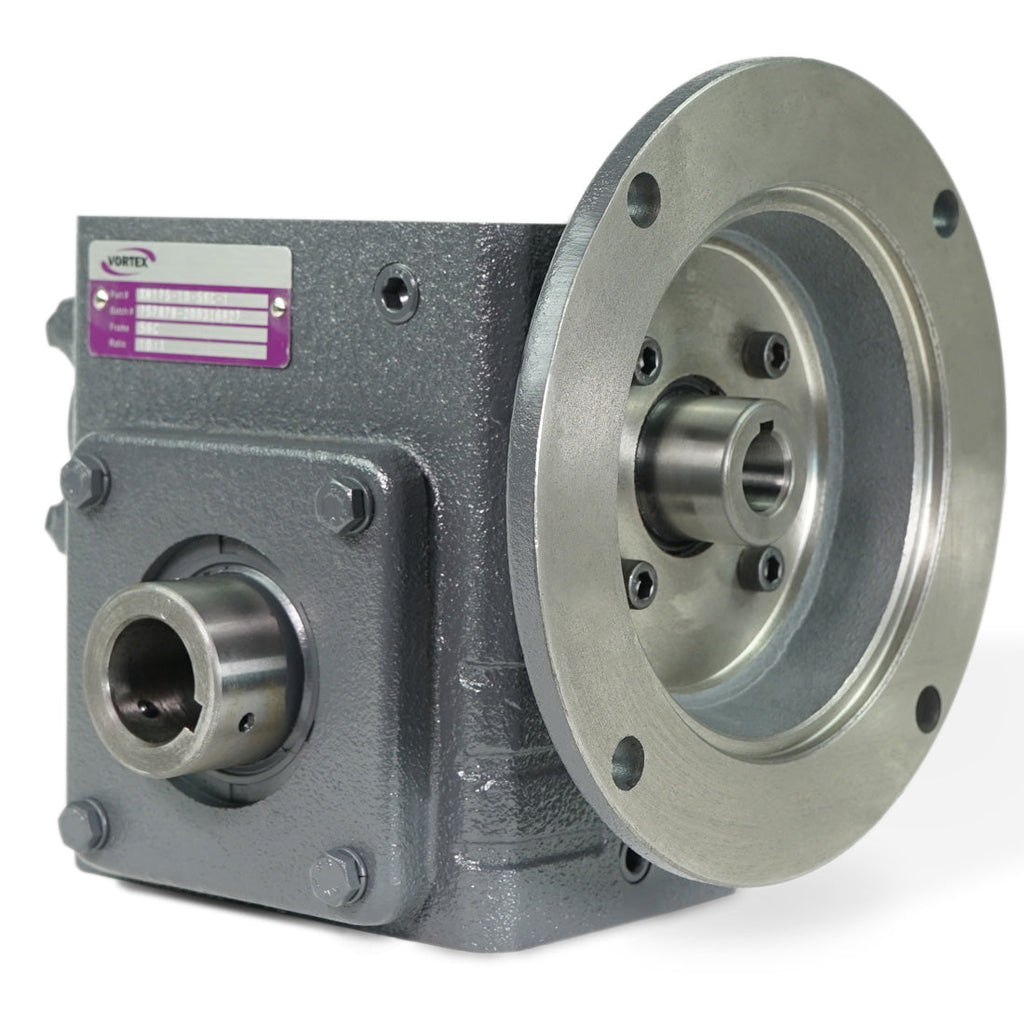

The Vortex XH237-5-140TC-1.25 is a hollow shaft worm gear speed reducer with a 5:1 nominal ratio (exact ratio 5.3:1) and 2.375-inch center distance. The NEMA 140TC input flange accepts a standard C-face motor, and the 1.25-inch hollow output bore (keyway: 3/8x3/16) slides directly over the driven shaft for conveyor head, mixer, and similar direct-mount applications.
Specifications
| Specification | Value |
|---|---|
| Part Number | Vortex XH237-5-140TC-1.25 |
| Series | Vortex XH-Series |
| Nominal Ratio | 5:1 |
| Exact Ratio | 5.3:1 |
| Center Distance | 2.375" |
| NEMA Input Frame | 140TC |
| Hollow Output Bore | 1.25" |
| Output Keyway | 3/8x3/16 |
| Output Torque (1750 RPM input) | 798.0 in-lbs |
| Output Speed (1750 RPM input) | 350.0 RPM |
| Max Input HP (1750 RPM) | 4.57 HP |
| Mechanical Efficiency | 93% at 5:1 |
| Overhung Load Capacity | 900.0 lbs |
| Thrust Capacity | 900.0 lbs |
| Housing | Cast iron, painted finish |
| Mounting | Foot-mount standard; flange-mount kit available |
| Shipping | Texas Belting & Supply, Houston, TX |
Downloadable Spec Sheet
Full dimensional drawings, motor mounting dimensions, ratio table with exact ratios and efficiencies, and torque ratings.
Download XH237 Spec Sheet (PDF)About This Unit
The Vortex XH237-5 is a worm gear speed reducer with a NEMA 140TC input flange and a 1.25-inch hollow output bore for direct shaft mounting. The cast iron housing is sealed for indoor and protected outdoor use. Maximum input speed is 1,750 RPM (standard NEMA motor speed). At 5:1 ratio, this unit delivers approximately 350.0 RPM at the output with mechanical efficiency of 93%.
Typical applications: belt and chain conveyors, mixers and agitators, packaging machinery, indexing tables, pump drives, and OEM equipment requiring a compact sealed gear reducer.
