Vortex XH325-5-140TC-1.937 Hollow Shaft Worm Gear Reducer - 5:1 Ratio, 1.937" Bore


Price:
$ 975.17

Description

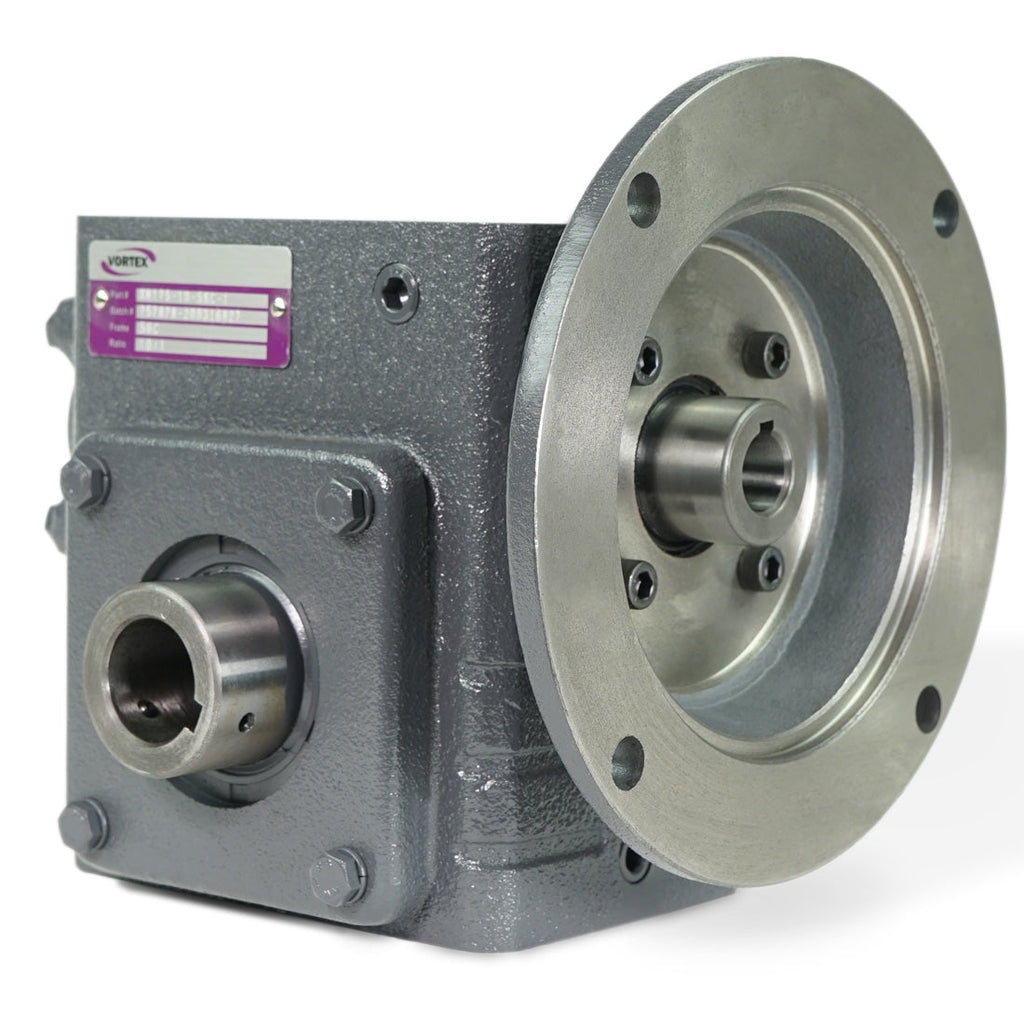

The Vortex XH325-5-140TC-1.937 is a hollow shaft worm gear speed reducer with a 5:1 nominal ratio (exact ratio 5.3:1) and 3.25-inch center distance. The NEMA 140TC input flange accepts a standard C-face motor, and the 1.937-inch hollow output bore (keyway: 1/2x1/4) slides directly over the driven shaft for conveyor head, mixer, and similar direct-mount applications.

Specifications

Specification Value
Part Number Vortex XH325-5-140TC-1.937
Series Vortex XH-Series
Nominal Ratio 5:1
Exact Ratio 5.3:1
Center Distance 3.25"
NEMA Input Frame 140TC
Hollow Output Bore 1.937"
Output Keyway 1/2x1/4
Output Torque (1750 RPM input) 1724.0 in-lbs
Output Speed (1750 RPM input) 350.0 RPM
Max Input HP (1750 RPM) 9.72 HP
Mechanical Efficiency 93% at 5:1
Overhung Load Capacity 1200.0 lbs
Thrust Capacity 1100.0 lbs
Weight 74.8 lbs
Oil Fill Volume 70.0 oz
Housing Cast iron, painted finish
Mounting Foot-mount standard; flange-mount kit available
Shipping Texas Belting & Supply, Houston, TX

Downloadable Spec Sheet

Full dimensional drawings, motor mounting dimensions, ratio table with exact ratios and efficiencies, and torque ratings.

Download XH325 Spec Sheet (PDF)

About This Unit

The Vortex XH325-5 is a worm gear speed reducer with a NEMA 140TC input flange and a 1.937-inch hollow output bore for direct shaft mounting. The cast iron housing is sealed for indoor and protected outdoor use. Maximum input speed is 1,750 RPM (standard NEMA motor speed). At 5:1 ratio, this unit delivers approximately 350.0 RPM at the output with mechanical efficiency of 93%.

Typical applications: belt and chain conveyors, mixers and agitators, packaging machinery, indexing tables, pump drives, and OEM equipment requiring a compact sealed gear reducer.

Competitor Cross-References

This Vortex XH325 cross-references to the following competitive worm gear reducers at the same 3.25-inch center distance. Verify ratio, motor frame, output shaft, and hand of rotation against your existing nameplate before substituting.

Manufacturer Equivalent Part Number
Baldor F932
Boston Gear F732
Cone Drive B10WAN
Falk Omnibox 1325WBM
Grove Gear BMQ232
Hub City 324
Morse Invader 732F
Morse Raider 325Q
Ohio Gear BMQ2325

Frequently Asked Questions

What is the exact ratio of the Vortex XH325-5?

The nominal ratio is 5:1 and the exact ratio is 5.3:1. At a 1,750 RPM input speed the output speed is 350.0 RPM. Mechanical efficiency at this ratio is approximately 93%.

What does the Vortex XH325-5-140TC-1.937 replace?

This unit cross-references to competitive 3.25-inch center distance worm gear reducers including Baldor F932, Boston Gear F732, Cone Drive B10WAN, Falk Omnibox 1325WBM, Grove Gear BMQ232. Verify ratio, motor frame, and output direction against the original nameplate before substituting.

Does the Vortex XH325-5 ship from Houston?

Yes. The Vortex XH325-5 ships from Texas Belting & Supply's Houston, TX warehouse the same business day for orders placed before 3 PM Central time, subject to stock. Call (888) 203-2358 to confirm current inventory.
