Vortex XS154-10-L Worm Gear Reducer - 10:1 Ratio, Belt-Drive Input


Price:
$ 247.86

Description

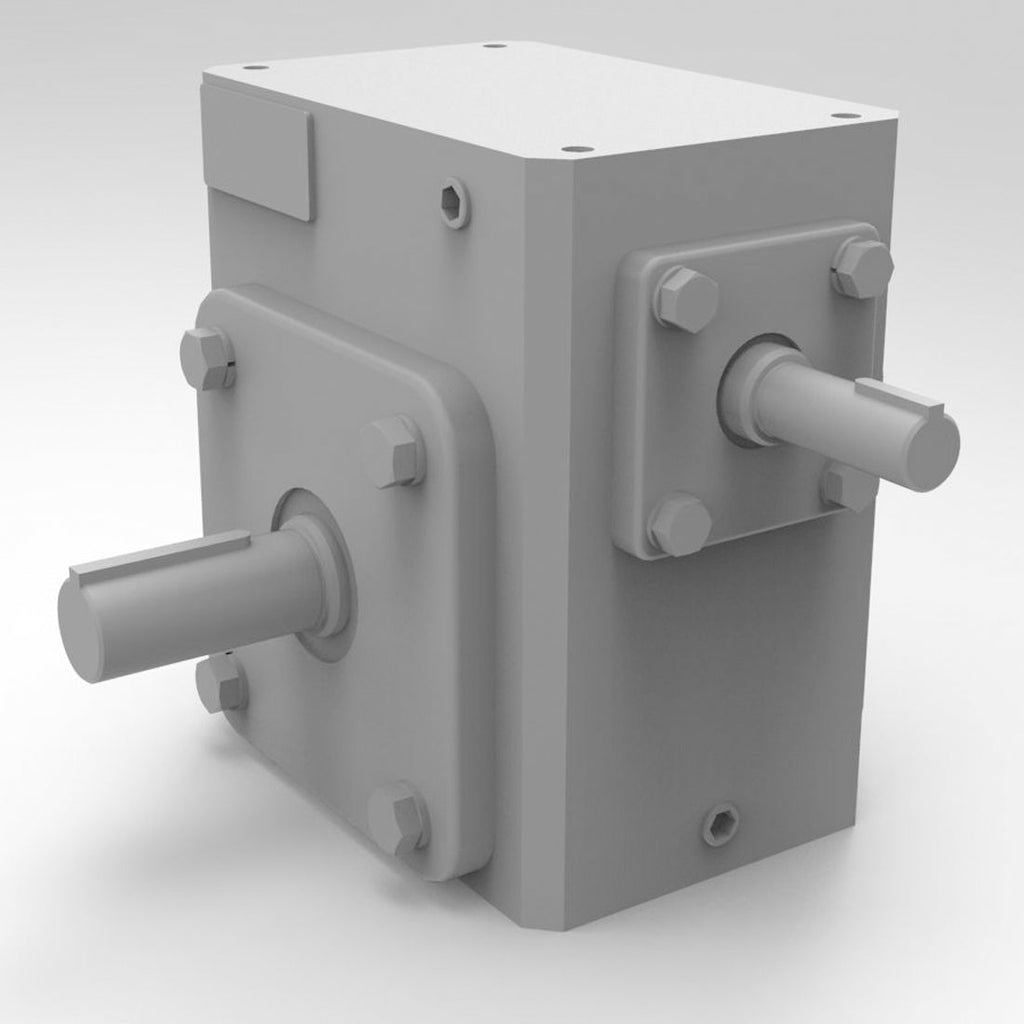

The Vortex XS154-10-L is a worm gear speed reducer with a 10:1 nominal ratio (exact ratio 10.0:1) and 1.54-inch center distance, configured for belt or chain drive on the input side. The 0.625-inch input shaft and 0.75-inch output shaft both have keyways for sheaves and couplings. Output is oriented for left-hand output.

Specifications

Specification Value
Part Number Vortex XS154-10-L
Series Vortex XS-Series
Nominal Ratio 10:1
Exact Ratio 10.0:1
Center Distance 1.54"
Output Orientation Left-Hand Output
Output Shaft Diameter 0.75"
Output Keyway 3/16x3/32
Input Shaft Diameter 0.625"
Input Keyway 3/16x3/32
Output Torque (1750 RPM input) 327.0 in-lbs
Output Speed (1750 RPM input) 175.0 RPM
Max Input HP (1750 RPM) 1.03 HP
Mechanical Efficiency 88% at 10:1
Overhung Load Capacity 450.0 lbs
Thrust Capacity 400.0 lbs
Weight 14.3 lbs
Oil Fill Volume 11.5 oz
Housing Cast iron, painted finish
Mounting Foot-mount standard; flange-mount kit available
Shipping Texas Belting & Supply, Houston, TX

Downloadable Spec Sheet

Full dimensional drawings, motor mounting dimensions, ratio table with exact ratios and efficiencies, and torque ratings.

Download XS154 Spec Sheet (PDF)

About This Unit

The Vortex XS154-10 is a worm gear speed reducer with solid input and output shafts (no motor flange). Left-Hand Output. Driven by belt or chain rather than a coupled motor. The cast iron housing is sealed for indoor and protected outdoor use. Maximum input speed is 1,750 RPM (standard NEMA motor speed). At 10:1 ratio, this unit delivers approximately 175.0 RPM at the output with mechanical efficiency of 88%.

Typical applications: belt and chain conveyors, mixers and agitators, packaging machinery, indexing tables, pump drives, and OEM equipment requiring a compact sealed gear reducer.
