Description

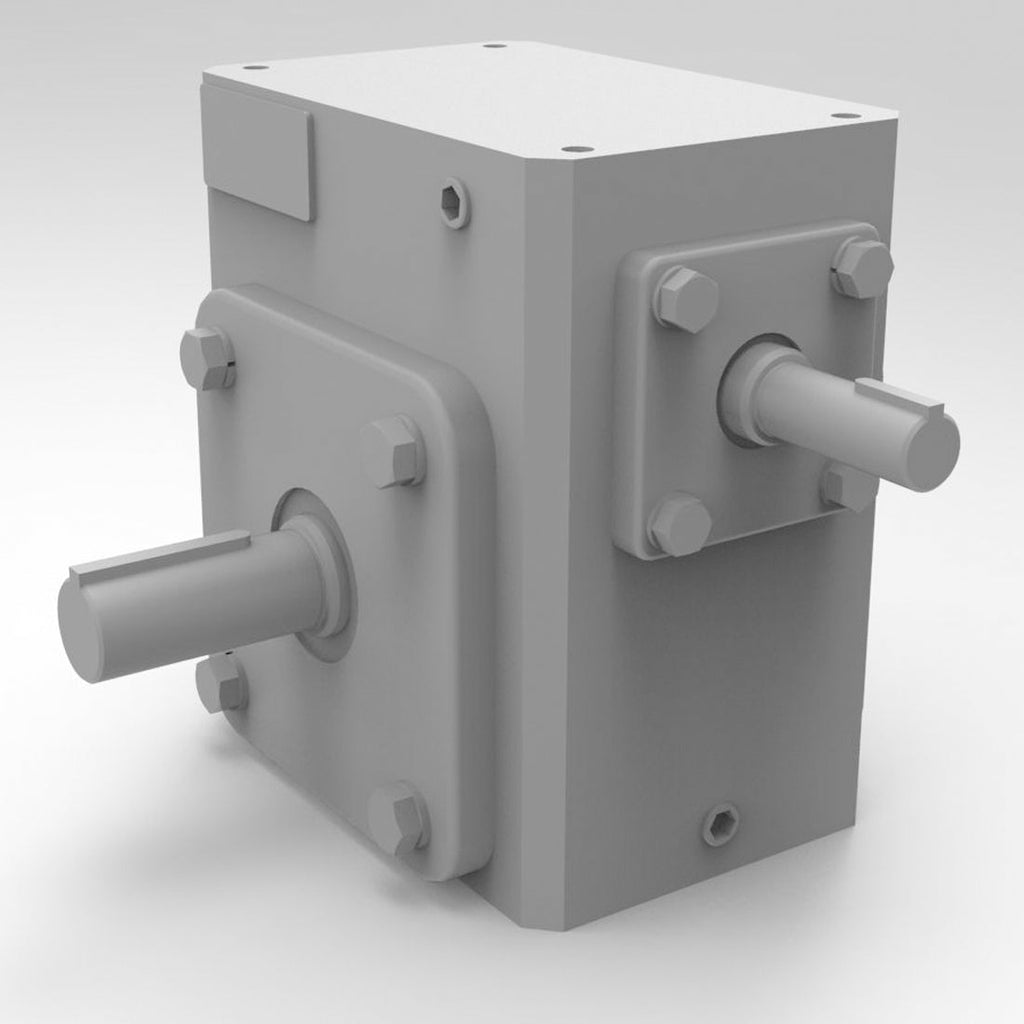

The Vortex XS300-50-LR is a worm gear speed reducer with a 50:1 nominal ratio (exact ratio 50.0:1) and 3.0-inch center distance, configured for belt or chain drive on the input side. The 0.875-inch input shaft and 1.25-inch output shaft both have keyways for sheaves and couplings. Output is oriented for double-ended output.
Specifications
| Specification | Value |
|---|---|
| Part Number | Vortex XS300-50-LR |
| Series | Vortex XS-Series |
| Nominal Ratio | 50:1 |
| Exact Ratio | 50.0:1 |
| Center Distance | 3.0" |
| Output Orientation | Double-Ended Output |
| Output Shaft Diameter | 1.25" |
| Output Keyway | 1/4x1/8 |
| Input Shaft Diameter | 0.875" |
| Input Keyway | 3/16x3/32 |
| Output Torque (1750 RPM input) | 2039.0 in-lbs |
| Output Speed (1750 RPM input) | 35.0 RPM |
| Max Input HP (1750 RPM) | 1.75 HP |
| Mechanical Efficiency | 64% at 50:1 |
| Overhung Load Capacity | 1100.0 lbs |
| Thrust Capacity | 1000.0 lbs |
| Weight | 64.9 lbs |
| Oil Fill Volume | 51.7 oz |
| Housing | Cast iron, painted finish |
| Mounting | Foot-mount standard; flange-mount kit available |
| Shipping | Texas Belting & Supply, Houston, TX |
Downloadable Spec Sheet
Full dimensional drawings, motor mounting dimensions, ratio table with exact ratios and efficiencies, and torque ratings.
Download XS300 Spec Sheet (PDF)About This Unit
The Vortex XS300-50 is a worm gear speed reducer with solid input and output shafts (no motor flange). Double-Ended Output. Driven by belt or chain rather than a coupled motor. The cast iron housing is sealed for indoor and protected outdoor use. Maximum input speed is 1,750 RPM (standard NEMA motor speed). At 50:1 ratio, this unit delivers approximately 35.0 RPM at the output with mechanical efficiency of 64%.
Typical applications: belt and chain conveyors, mixers and agitators, packaging machinery, indexing tables, pump drives, and OEM equipment requiring a compact sealed gear reducer.
