Vortex XS325-50-L Worm Gear Reducer - 50:1 Ratio, Belt-Drive Input


Price:
$ 644.70

Description

The Vortex XS325-50-L is a worm gear speed reducer with a 50:1 nominal ratio (exact ratio 50.0:1) and 3.25-inch center distance, configured for belt or chain drive on the input side. The 0.875-inch input shaft and 1.375-inch output shaft both have keyways for sheaves and couplings. Output is oriented for left-hand output.

Specifications

Specification Value
Part Number Vortex XS325-50-L
Series Vortex XS-Series
Nominal Ratio 50:1
Exact Ratio 50.0:1
Center Distance 3.25"
Output Orientation Left-Hand Output
Output Shaft Diameter 1.375"
Output Keyway 5/16x5/32
Input Shaft Diameter 0.875"
Input Keyway 3/16x3/32
Output Torque (1750 RPM input) 3413.0 in-lbs
Output Speed (1750 RPM input) 35.0 RPM
Max Input HP (1750 RPM) 2.49 HP
Mechanical Efficiency 76% at 50:1
Overhung Load Capacity 1200.0 lbs
Thrust Capacity 1100.0 lbs
Weight 73.7 lbs
Oil Fill Volume 70.0 oz
Housing Cast iron, painted finish
Mounting Foot-mount standard; flange-mount kit available
Shipping Texas Belting & Supply, Houston, TX

Downloadable Spec Sheet

Full dimensional drawings, motor mounting dimensions, ratio table with exact ratios and efficiencies, and torque ratings.

Download XS325 Spec Sheet (PDF)

About This Unit

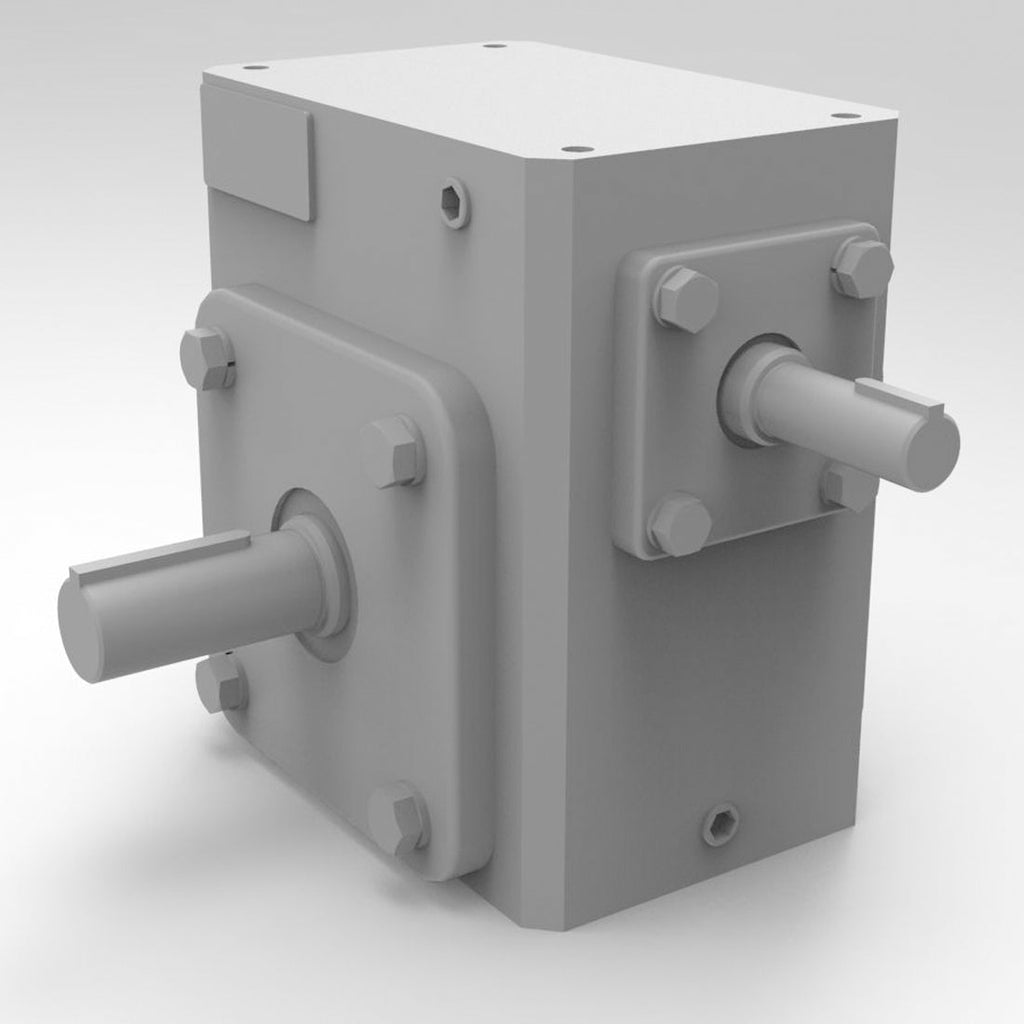

The Vortex XS325-50 is a worm gear speed reducer with solid input and output shafts (no motor flange). Left-Hand Output. Driven by belt or chain rather than a coupled motor. The cast iron housing is sealed for indoor and protected outdoor use. Maximum input speed is 1,750 RPM (standard NEMA motor speed). At 50:1 ratio, this unit delivers approximately 35.0 RPM at the output with mechanical efficiency of 76%.

Typical applications: belt and chain conveyors, mixers and agitators, packaging machinery, indexing tables, pump drives, and OEM equipment requiring a compact sealed gear reducer.

Competitor Cross-References

This Vortex XS325 cross-references to the following competitive worm gear reducers at the same 3.25-inch center distance. Verify ratio, motor frame, output shaft, and hand of rotation against your existing nameplate before substituting.

Manufacturer Equivalent Part Number
Baldor F932
Boston Gear F732
Cone Drive B10WAN
Falk Omnibox 1325WBM
Grove Gear BMQ232
Hub City 324
Morse Invader 732F
Morse Raider 325Q
Ohio Gear BMQ2325

Frequently Asked Questions

What is the exact ratio of the Vortex XS325-50?

The nominal ratio is 50:1 and the exact ratio is 50.0:1. At a 1,750 RPM input speed the output speed is 35.0 RPM. Mechanical efficiency at this ratio is approximately 76%.

What does the Vortex XS325-50-L replace?

This unit cross-references to competitive 3.25-inch center distance worm gear reducers including Baldor F932, Boston Gear F732, Cone Drive B10WAN, Falk Omnibox 1325WBM, Grove Gear BMQ232. Verify ratio, motor frame, and output direction against the original nameplate before substituting.

Does the Vortex XS325-50 ship from Houston?

Yes. The Vortex XS325-50 ships from Texas Belting & Supply's Houston, TX warehouse the same business day for orders placed before 3 PM Central time, subject to stock. Call (888) 203-2358 to confirm current inventory.

Questions about this Vortex XS325-50?

Engineering support and same-day shipping from Houston.

Call (888) 203-2358
