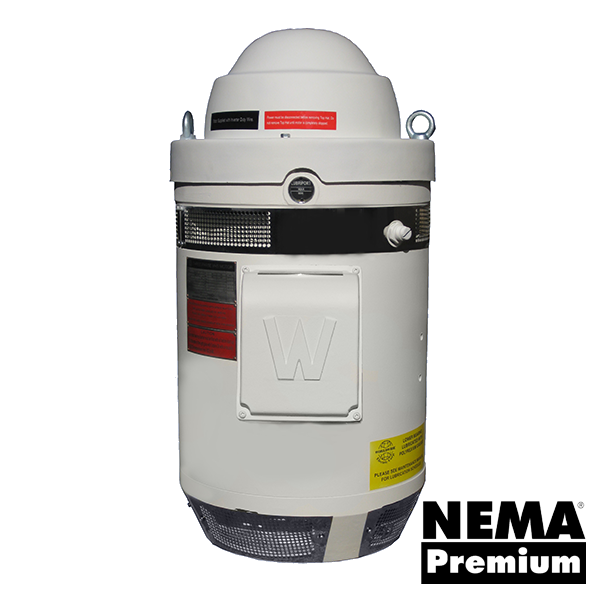

WPEVHS350-18-460-5006P-DB-20 — Vertical Hollow Shaft Motor


Price:
$ 56,516.34

Description

WPEVHS350-18-460-5006P-DB-20 — Vertical Hollow Shaft Motor

The WPEVHS350-18-460-5006P-DB-20 is a 350 hp, 1800 rpm, 3-phase, 460v, 5006p frame, weather protected (wpi) vertical hollow shaft motor for vertical turbine pumps. Weather Protected (WPI) enclosure, 1.15 service factor.

Specifications

Specification Value
Part Number WPEVHS350-18-460-5006P-DB-20
Horsepower (HP) 350
Speed (RPM) 1800
Phase Three-Phase
Voltage 460
Frequency 60 HZ
NEMA Frame 5006P
Enclosure Weather Protected (WPI)
Service Factor 1.15
Insulation Class Class F
Ingress Protection IP23
Warranty Two Year

Applications

  • Vertical turbine pumps
  • Deep-well and irrigation pumping
  • Municipal water and wastewater
  • Hollow-shaft pump drives

Documentation & Downloads

Frequently Asked Questions

What is the WPEVHS350-18-460-5006P-DB-20 used for?

The WPEVHS350-18-460-5006P-DB-20 is a 350 hp, 1800 rpm, 3-phase, 460v, 5006p frame, weather protected (wpi) vertical hollow shaft motor used for vertical turbine pumps and similar loads.

What frame is the WPEVHS350-18-460-5006P-DB-20?

The WPEVHS350-18-460-5006P-DB-20 uses a NEMA 5006P frame. Confirm shaft diameter, mounting (base or C-face), and bolt pattern against your existing motor before ordering a replacement.

What voltage does the WPEVHS350-18-460-5006P-DB-20 run on?

The WPEVHS350-18-460-5006P-DB-20 is rated 460V, 3-Phase at 60 HZ. Verify supply voltage and connection against the motor nameplate.

How fast does the WPEVHS350-18-460-5006P-DB-20 ship?

Most in-stock units of the WPEVHS350-18-460-5006P-DB-20 ship the same or next business day; non-stock items vary. Call (888) 203-2358 to confirm availability and freight.

Need a quote on WPEVHS350-18-460-5006P-DB-20?

Most in-stock items ship same-day — call to confirm availability and freight.

Call (888) 203-2358
