WPMDC1-18-90V-56CB — Permanent Magnet Motor


Price:
$ 637.38

Description

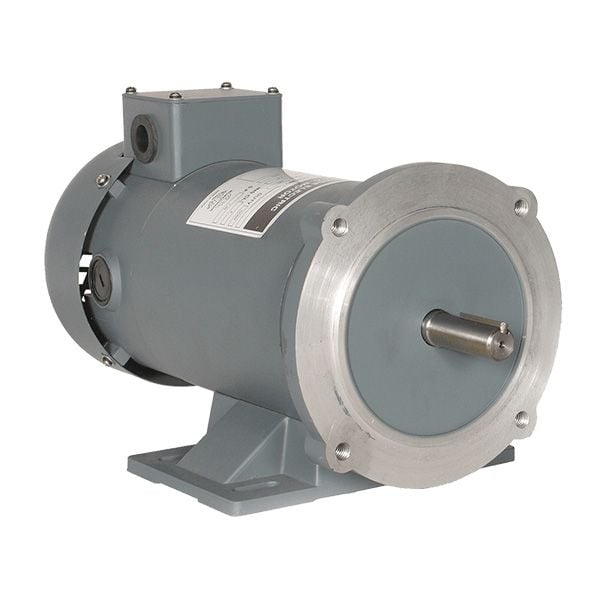

WPMDC1-18-90V-56CB — Permanent Magnet Motor

The WPMDC1-18-90V-56CB is a 1 hp, 1800 rpm, 90v, 56c frame, tefc permanent magnet motor for industrial machinery and oem equipment. TEFC enclosure, 1.0 service factor.

Specifications

Specification Value
Part Number WPMDC1-18-90V-56CB
Horsepower (HP) 1
Speed (RPM) 1800
Voltage 90
NEMA Frame 56C
Enclosure TEFC
Service Factor 1.0
Full-Load Efficiency (%) 82.0
Full-Load Amps 10.4
Insulation Class Class F
Mounting C-Face with Removable Base
Ingress Protection IP54
Weight (lbs) 32
Warranty One Year

Applications

  • Industrial machinery and OEM equipment
  • Fans, blowers, and pumps
  • Conveyors and material handling
  • Direct replacement for failed motors

Documentation & Downloads

Frequently Asked Questions

What is the WPMDC1-18-90V-56CB used for?

The WPMDC1-18-90V-56CB is a 1 hp, 1800 rpm, 90v, 56c frame, tefc permanent magnet motor used for industrial machinery and oem equipment and similar loads.

What frame is the WPMDC1-18-90V-56CB?

The WPMDC1-18-90V-56CB uses a NEMA 56C frame. Confirm shaft diameter, mounting (base or C-face), and bolt pattern against your existing motor before ordering a replacement.

What voltage does the WPMDC1-18-90V-56CB run on?

The WPMDC1-18-90V-56CB is rated 90V, AC at 60 Hz. Verify supply voltage and connection against the motor nameplate.

How fast does the WPMDC1-18-90V-56CB ship?

Most in-stock units of the WPMDC1-18-90V-56CB ship the same or next business day; non-stock items vary. Call (888) 203-2358 to confirm availability and freight.

Need a quote on WPMDC1-18-90V-56CB?

Most in-stock items ship same-day — call to confirm availability and freight.

Call (888) 203-2358
