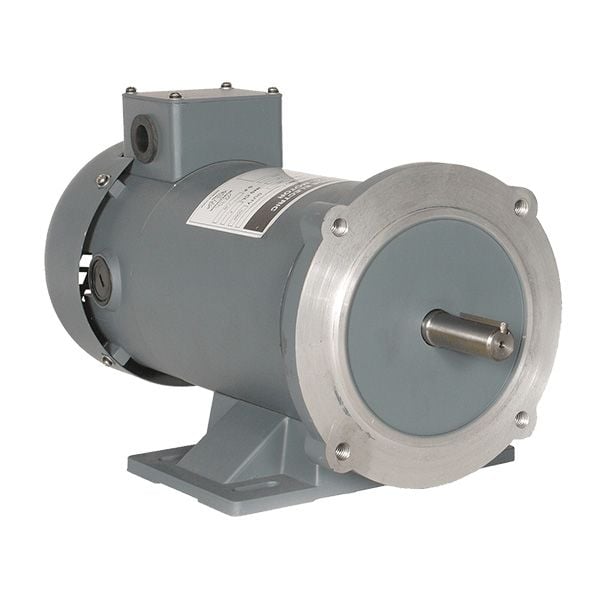

WPMDC1-5-18-90V-56CB — Permanent Magnet Motor
The WPMDC1-5-18-90V-56CB is a 1.5 hp, 1800 rpm, 90v, 56c frame, tefc permanent magnet motor for industrial machinery and oem equipment. TEFC enclosure, 1.0 service factor.
Specifications
| Specification | Value |
|---|---|
| Part Number | WPMDC1-5-18-90V-56CB |
| Horsepower (HP) | 1.5 |
| Speed (RPM) | 1800 |
| Voltage | 90 |
| NEMA Frame | 56C |
| Enclosure | TEFC |
| Service Factor | 1.0 |
| Full-Load Efficiency (%) | 83.0 |
| Full-Load Amps | 15.4 |
| Insulation Class | Class F |
| Mounting | C-Face with Removable Base |
| Ingress Protection | IP54 |
| Weight (lbs) | 38 |
| Warranty | One Year |
Applications
- Industrial machinery and OEM equipment
- Fans, blowers, and pumps
- Conveyors and material handling
- Direct replacement for failed motors
Documentation & Downloads
Frequently Asked Questions
What is the WPMDC1-5-18-90V-56CB used for?
The WPMDC1-5-18-90V-56CB is a 1.5 hp, 1800 rpm, 90v, 56c frame, tefc permanent magnet motor used for industrial machinery and oem equipment and similar loads.
What frame is the WPMDC1-5-18-90V-56CB?
The WPMDC1-5-18-90V-56CB uses a NEMA 56C frame. Confirm shaft diameter, mounting (base or C-face), and bolt pattern against your existing motor before ordering a replacement.
What voltage does the WPMDC1-5-18-90V-56CB run on?
The WPMDC1-5-18-90V-56CB is rated 90V, AC at 60 Hz. Verify supply voltage and connection against the motor nameplate.
How fast does the WPMDC1-5-18-90V-56CB ship?
Most in-stock units of the WPMDC1-5-18-90V-56CB ship the same or next business day; non-stock items vary. Call (888) 203-2358 to confirm availability and freight.
