WSS12-36-56CB — Electric Motor


Price:
$ 200.55

Description

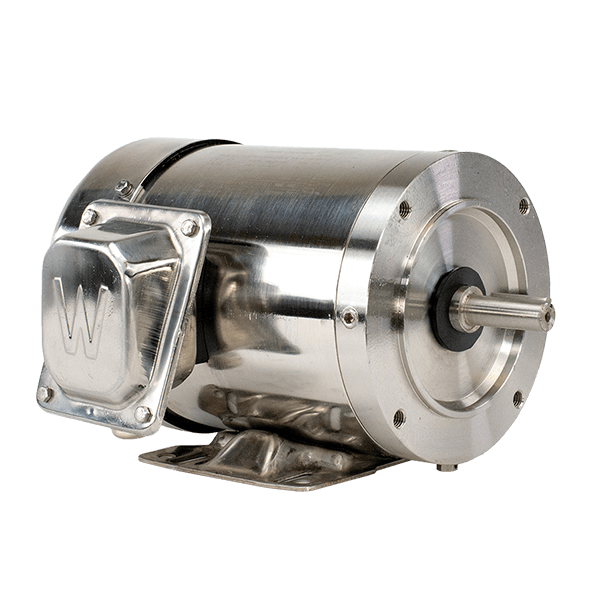

WSS12-36-56CB — Electric Motor

The WSS12-36-56CB is a 0.5 hp, 3600 rpm, 3-phase, 230/460v, 56c frame, tefc electric motor for food and beverage processing. TEFC enclosure, 1.15 service factor.

Specifications

Specification Value
Part Number WSS12-36-56CB
Horsepower (HP) 0.5
Speed (RPM) 3600
Phase Three-Phase
Voltage 230/460
Frequency 60/50 HZ*
NEMA Frame 56C
Enclosure TEFC
Service Factor 1.15
Full-Load Efficiency (%) 77.0
Full-Load Amps 0.9
Insulation Class Class F
Mounting C-Face with Feet
Ingress Protection IP56

Applications

  • Food and beverage processing
  • Sanitary and w, high-pressure washdown areas
  • Corrosive and wet environments
  • Pharma and packaging lines

Documentation & Downloads

Frequently Asked Questions

What is the WSS12-36-56CB used for?

The WSS12-36-56CB is a 0.5 hp, 3600 rpm, 3-phase, 230/460v, 56c frame, tefc electric motor used for food and beverage processing and similar loads.

What frame is the WSS12-36-56CB?

The WSS12-36-56CB uses a NEMA 56C frame. Confirm shaft diameter, mounting (base or C-face), and bolt pattern against your existing motor before ordering a replacement.

What voltage does the WSS12-36-56CB run on?

The WSS12-36-56CB is rated 230/460V, 3-Phase at 60/50 HZ*. Verify supply voltage and connection against the motor nameplate.

How fast does the WSS12-36-56CB ship?

Most in-stock units of the WSS12-36-56CB ship the same or next business day; non-stock items vary. Call (888) 203-2358 to confirm availability and freight.

Need a quote on WSS12-36-56CB?

Most in-stock items ship same-day — call to confirm availability and freight.

Call (888) 203-2358
