BlackStar 100BTL36 - 100 Pitch Taper Lock Sprocket - 36 Tooth


Price:
$ 302.78

Description

The BlackStar 100BTL36 is a 100 pitch Taper Lock roller chain sprocket with 36 teeth, precision manufactured from SAE 1045 steel and features machine-cut tooth profiles for smooth, reliable chain engagement. This sprocket requires a Taper Lock Bushing (sold separately).

Specifications
Part Number 100BTL36
Chain Pitch 100
Number of Teeth 36
Bore Type Taper Lock
Hub Style Taper Lock
Bushing Required Taper Lock Bushing
Strand Count Single
Material Steel
Outside Diameter 15.04"
Pitch Diameter 14.343"
Approx. Weight 31.0 lbs

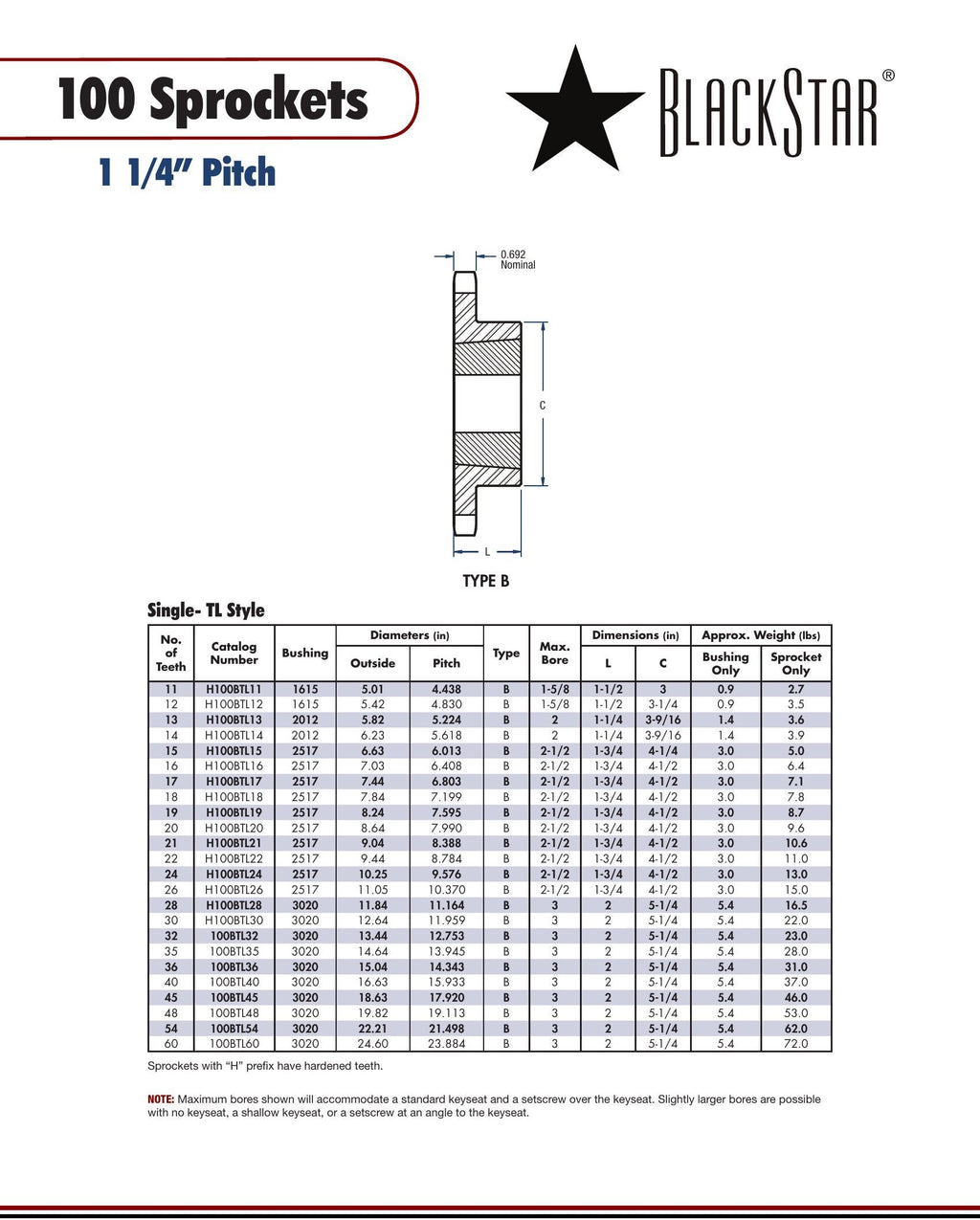

BlackStar 100BTL36 Sprocket Spec Sheet

Bushing Required

This sprocket requires a Taper Lock Bushing to mount to your shaft. The bushing is sold separately and allows you to match the sprocket to your exact shaft diameter.

Shop Bushings

BlackStar Taper Lock Bushing Spec Sheet

Cross-references: Martin 100TB36, Browning 100TB36
