BlackStar 100E27 - 100 Pitch QD Sprocket - 27 Tooth


Price:
$ 189.54

Description

The BlackStar 100E27 is a 100 pitch QD roller chain sprocket with 27 teeth, precision manufactured from SAE 1045 steel and features machine-cut tooth profiles for smooth, reliable chain engagement. This sprocket requires a QD Type E Bushing (sold separately).

Specifications
Part Number 100E27
Chain Pitch 100
Number of Teeth 27
Maximum Bore 3-1/2"
Bore Type QD
Hub Style QD
Bushing Required QD Type E Bushing
Strand Count Single
Material Steel
Outside Diameter 11.45"
Pitch Diameter 10.768"
Approx. Weight 19.2 lbs

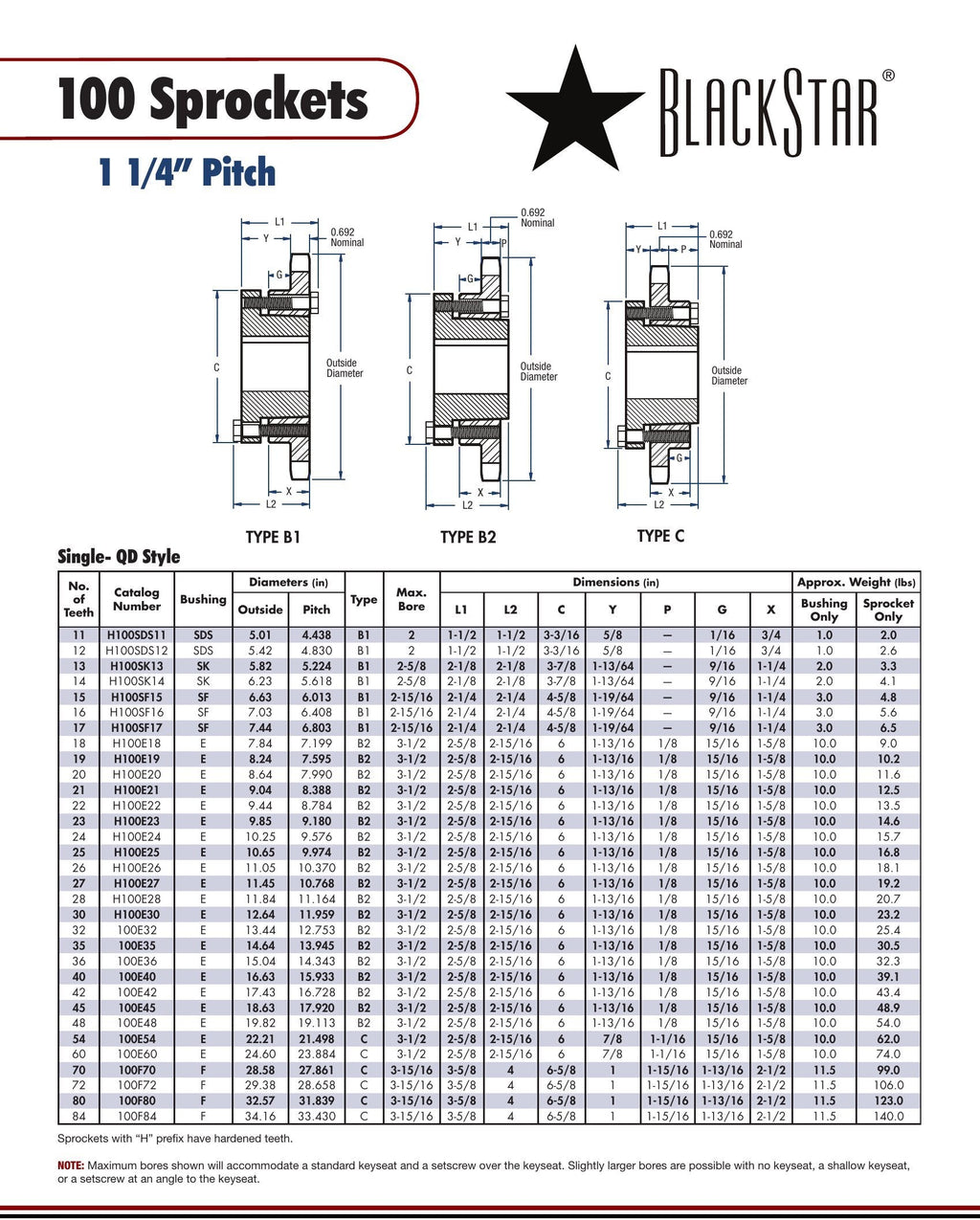

BlackStar 100E27 Sprocket Spec Sheet

Bushing Required

This sprocket requires a QD Type E Bushing to mount to your shaft. The bushing is sold separately and allows you to match the sprocket to your exact shaft diameter.

Shop Bushings

BlackStar QD Type E Bushing Spec Sheet

Cross-references: Browning 100E27, Martin 100E27
