BlackStar 100E32 - 100 Pitch QD Sprocket - 32 Tooth


Price:
$ 235.71

Description

The BlackStar 100E32 is a 100 pitch QD roller chain sprocket with 32 teeth, precision manufactured from SAE 1045 steel and features machine-cut tooth profiles for smooth, reliable chain engagement. This sprocket requires a QD Type E Bushing (sold separately).

Specifications
Part Number 100E32
Chain Pitch 100
Number of Teeth 32
Maximum Bore 3-1/2"
Bore Type QD
Hub Style QD
Bushing Required QD Type E Bushing
Strand Count Single
Material Steel
Outside Diameter 13.44"
Pitch Diameter 12.753"
Approx. Weight 25.4 lbs

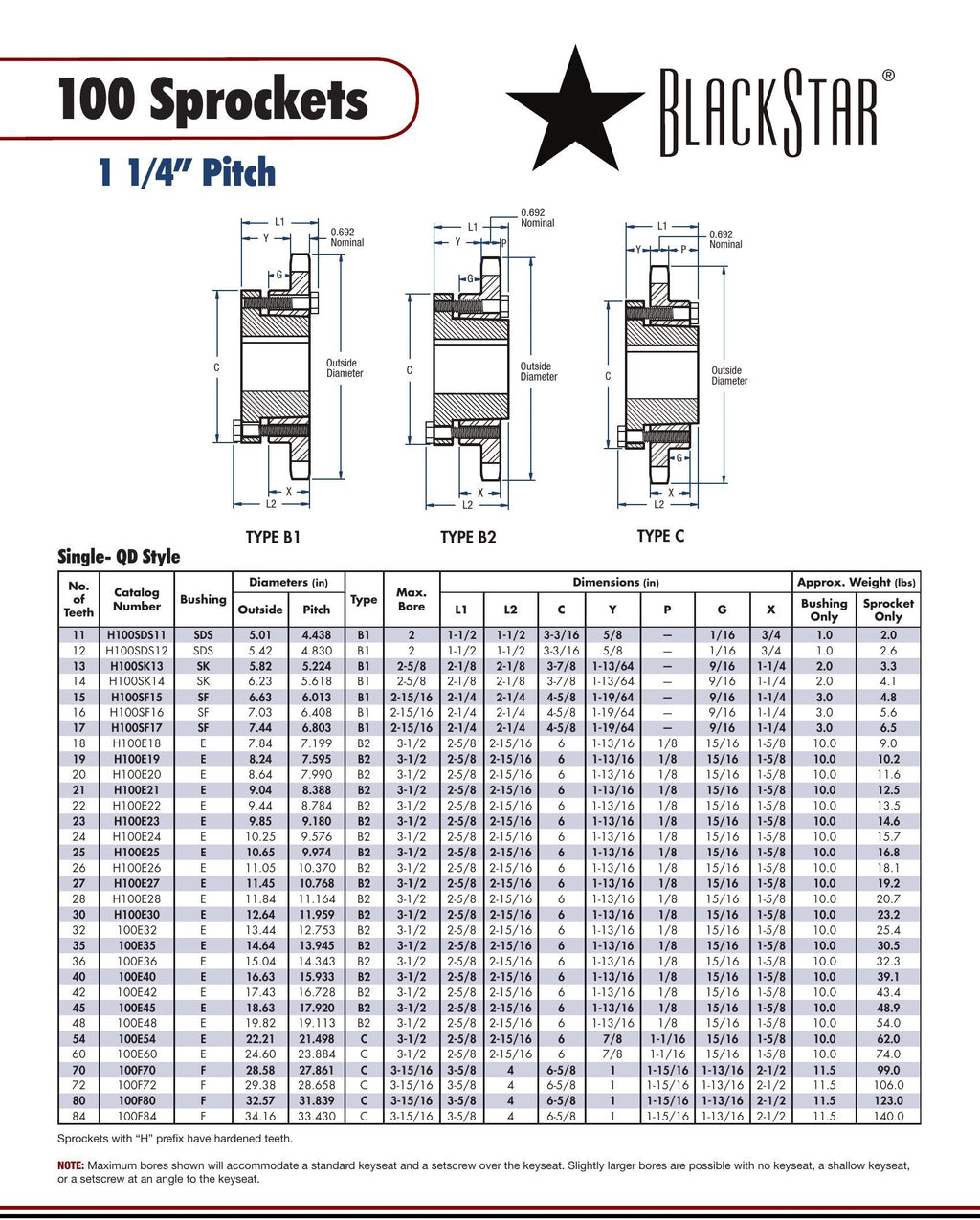

BlackStar 100E32 Sprocket Spec Sheet

Bushing Required

This sprocket requires a QD Type E Bushing to mount to your shaft. The bushing is sold separately and allows you to match the sprocket to your exact shaft diameter.

Shop Bushings

BlackStar QD Type E Bushing Spec Sheet

Cross-references: Browning 100E32, Martin 100E32
