BlackStar 100E40 - 100 Pitch QD Sprocket - 40 Tooth


Price:
$ 349.43

Description

The BlackStar 100E40 is a 100 pitch QD roller chain sprocket with 40 teeth, precision manufactured from SAE 1045 steel and features machine-cut tooth profiles for smooth, reliable chain engagement. This sprocket requires a QD Type E Bushing (sold separately).

Specifications
Part Number 100E40
Chain Pitch 100
Number of Teeth 40
Maximum Bore 3-1/2"
Bore Type QD
Hub Style QD
Bushing Required QD Type E Bushing
Strand Count Single
Material Steel
Outside Diameter 16.63"
Pitch Diameter 15.933"
Approx. Weight 39.1 lbs

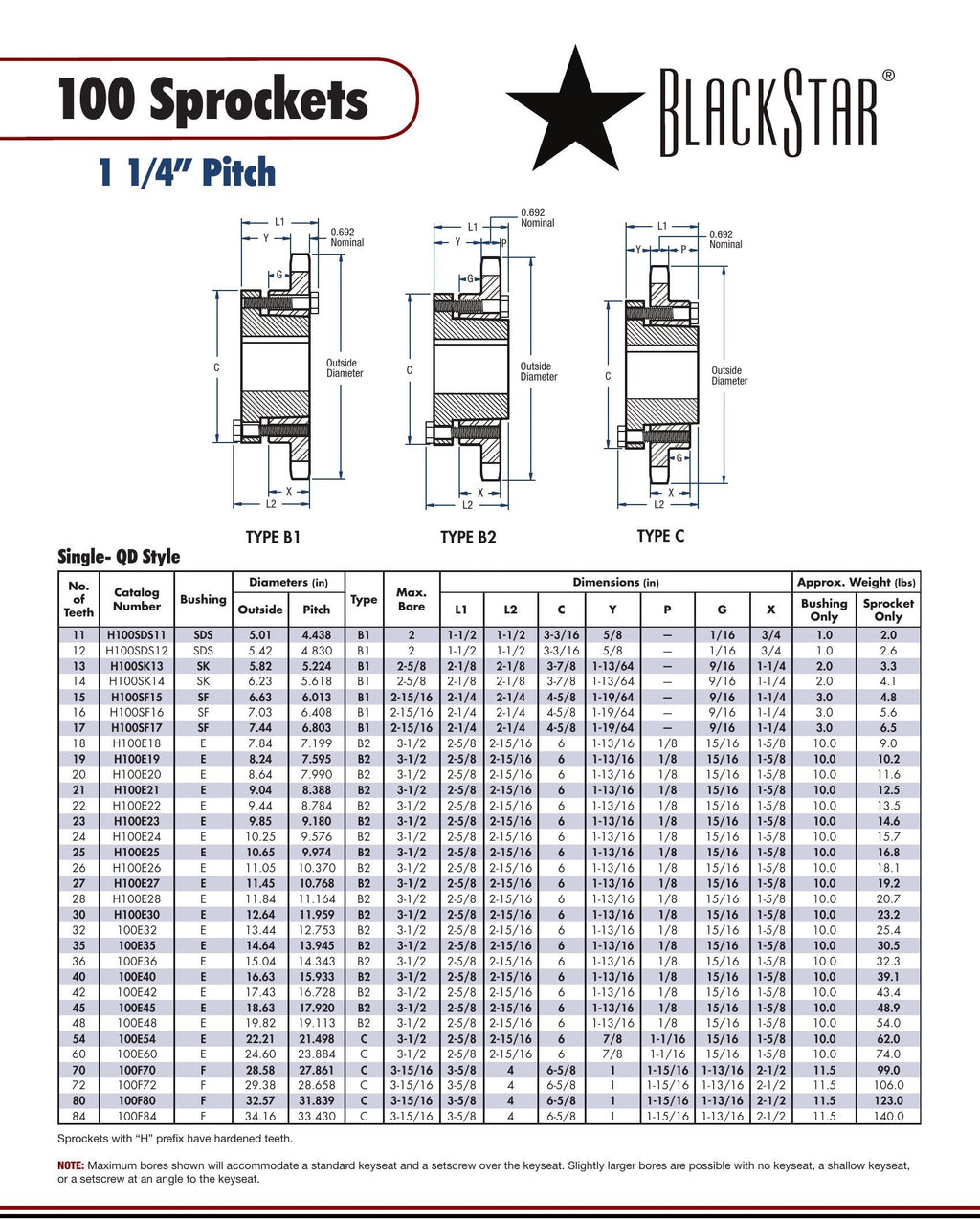

BlackStar 100E40 Sprocket Spec Sheet

Bushing Required

This sprocket requires a QD Type E Bushing to mount to your shaft. The bushing is sold separately and allows you to match the sprocket to your exact shaft diameter.

Shop Bushings

BlackStar QD Type E Bushing Spec Sheet

Cross-references: Browning 100E40, Martin 100E40
