BlackStar 100F70 LH - 100 Pitch QD Sprocket - 70 Tooth


Price:
$ 972

Description

The BlackStar 100F70 LH is a 100 pitch QD roller chain sprocket with 70 teeth, precision manufactured from SAE 1045 steel and features machine-cut tooth profiles for smooth, reliable chain engagement. This sprocket requires a QD Type F Bushing (sold separately).

Specifications
Part Number 100F70 LH
Chain Pitch 100
Number of Teeth 70
Maximum Bore 3-15/16"
Bore Type QD
Hub Style QD
Bushing Required QD Type F Bushing
Strand Count Single
Material Steel
Outside Diameter 28.58"
Pitch Diameter 27.861"
Approx. Weight 99.0 lbs

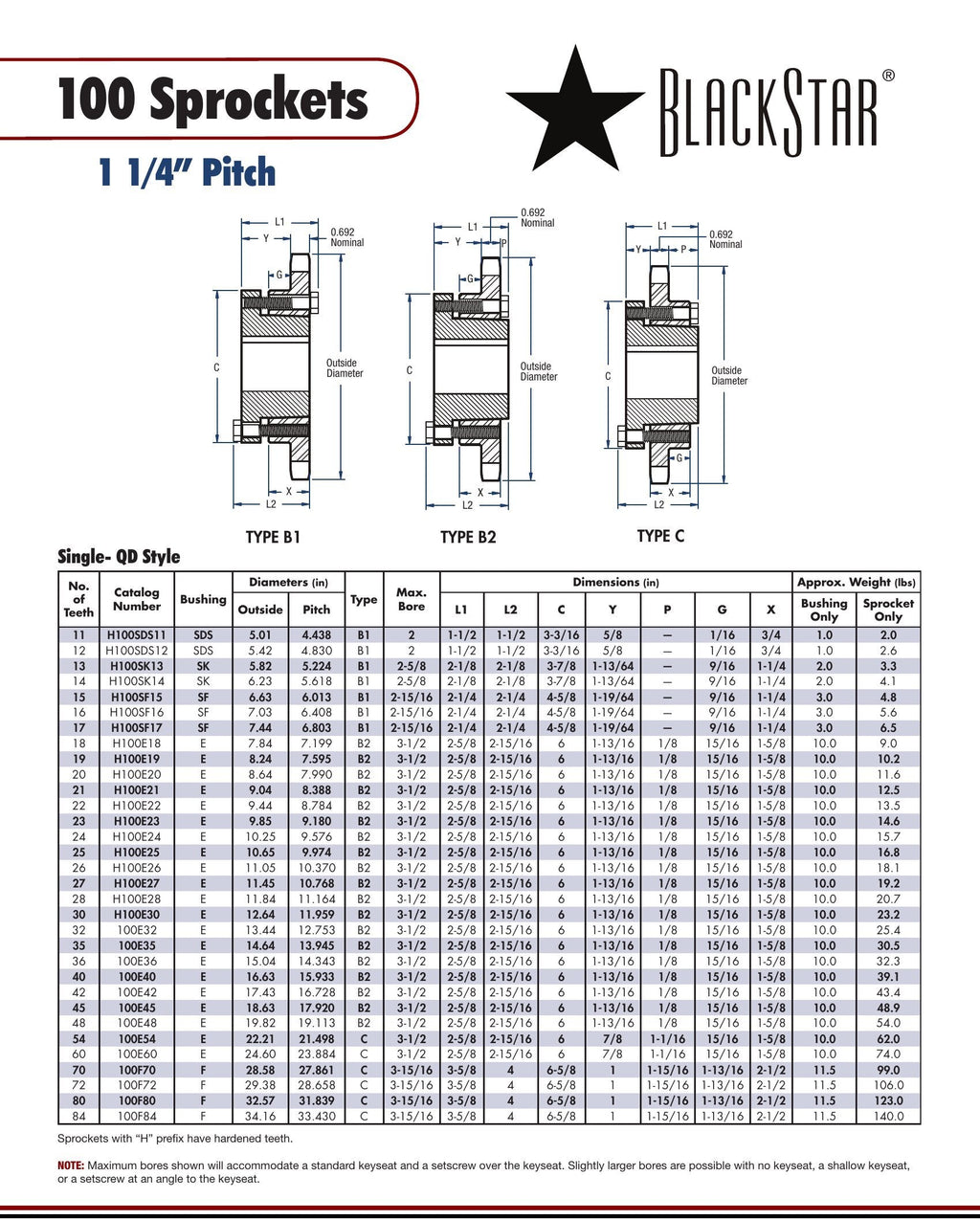

BlackStar 100F70 LH Sprocket Spec Sheet

Bushing Required

This sprocket requires a QD Type F Bushing to mount to your shaft. The bushing is sold separately and allows you to match the sprocket to your exact shaft diameter.

Shop Bushings

BlackStar QD Type F Bushing Spec Sheet

Cross-references: Browning 100F70, Martin 100F70

Compatible Components

Matched Roller Chain

Shop all 51 matched options ›

Matched Roller Chain

Shop all 51 matched options ›

Matched Roller Chain

Shop all 51 matched options ›

Not sure what fits? Call (888) 203-2358 and we will match it from the Houston warehouse.
