BlackStar 100F84 - 100 Pitch QD Sprocket - 84 Tooth


Price:
$ 1,259.71

Description

The BlackStar 100F84 is a 100 pitch QD roller chain sprocket with 84 teeth, precision manufactured from SAE 1045 steel and features machine-cut tooth profiles for smooth, reliable chain engagement. This sprocket requires a QD Type F Bushing (sold separately).

Specifications
Part Number 100F84
Chain Pitch 100
Number of Teeth 84
Maximum Bore 3-15/16"
Bore Type QD
Hub Style QD
Bushing Required QD Type F Bushing
Strand Count Single
Material Steel
Outside Diameter 34.16"
Pitch Diameter 33.430"
Approx. Weight 140.0 lbs

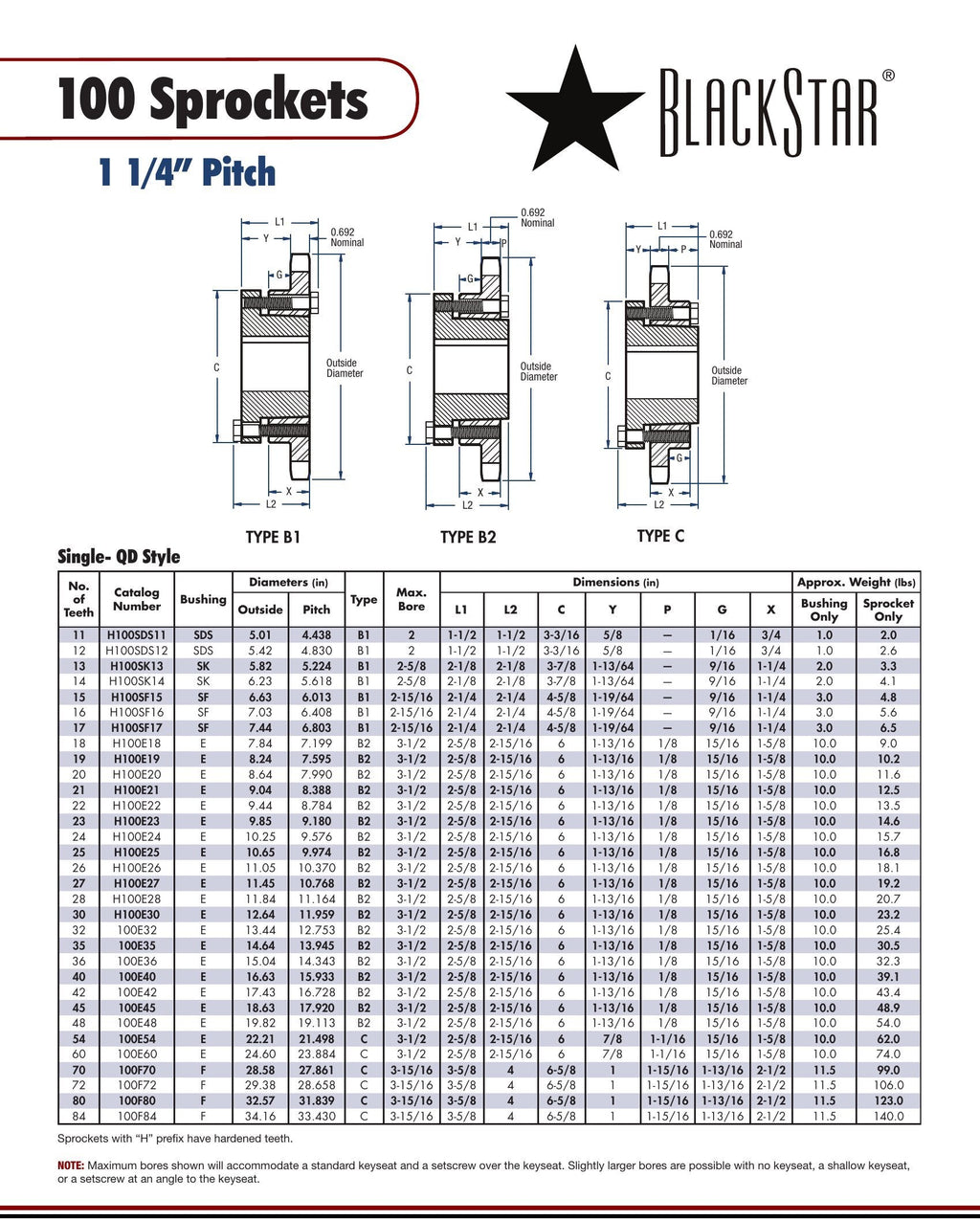

BlackStar 100F84 Sprocket Spec Sheet

Bushing Required

This sprocket requires a QD Type F Bushing to mount to your shaft. The bushing is sold separately and allows you to match the sprocket to your exact shaft diameter.

Shop Bushings

BlackStar QD Type F Bushing Spec Sheet

Cross-references: Browning 100F84, Martin 100F84

Compatible Components

Matched Roller Chain

Shop all 51 matched options ›

Matched Roller Chain

Shop all 51 matched options ›

Matched Roller Chain

Shop all 51 matched options ›

Not sure what fits? Call (888) 203-2358 and we will match it from the Houston warehouse.
