BlackStar 100P13 - 100 Pitch Taper Lock Sprocket - 13 Tooth


Price:
$ 79.22

Description

The BlackStar 100P13 is a 100 pitch Taper Lock roller chain sprocket with 13 teeth, precision manufactured from SAE 1045 steel and features machine-cut tooth profiles for smooth, reliable chain engagement. This sprocket requires a Taper Lock Bushing (sold separately).

Specifications
Part Number 100P13
Chain Pitch 100
Number of Teeth 13
Bore Type QD
Hub Style Taper Lock
Bushing Required Taper Lock Bushing
Strand Count Single
Material Steel
Outside Diameter 5.82"
Pitch Diameter 5.224"
Approx. Weight 4.400 lbs

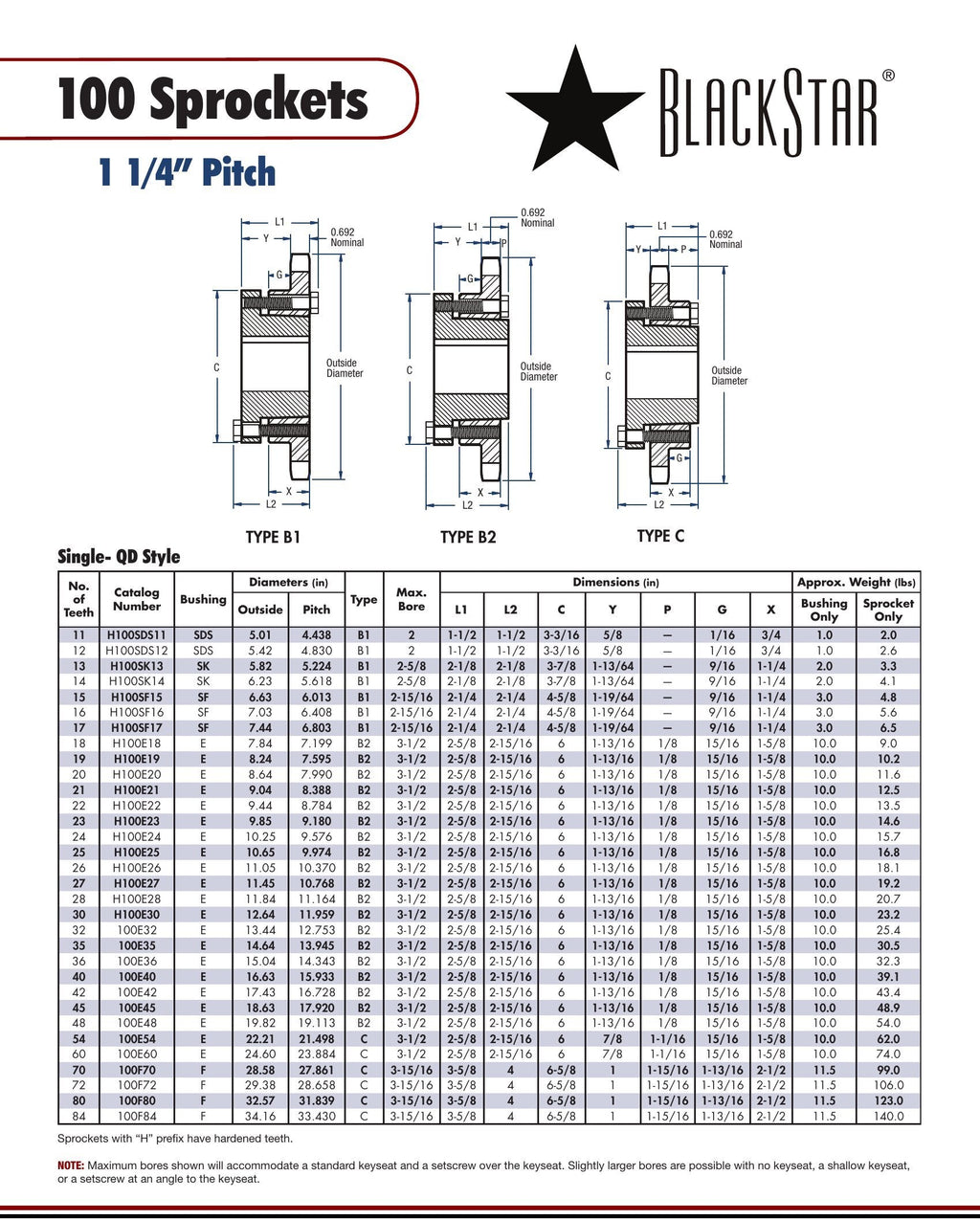

BlackStar 100P13 Sprocket Spec Sheet

Bushing Required

This sprocket requires a Taper Lock Bushing to mount to your shaft. The bushing is sold separately and allows you to match the sprocket to your exact shaft diameter.

Shop Bushings

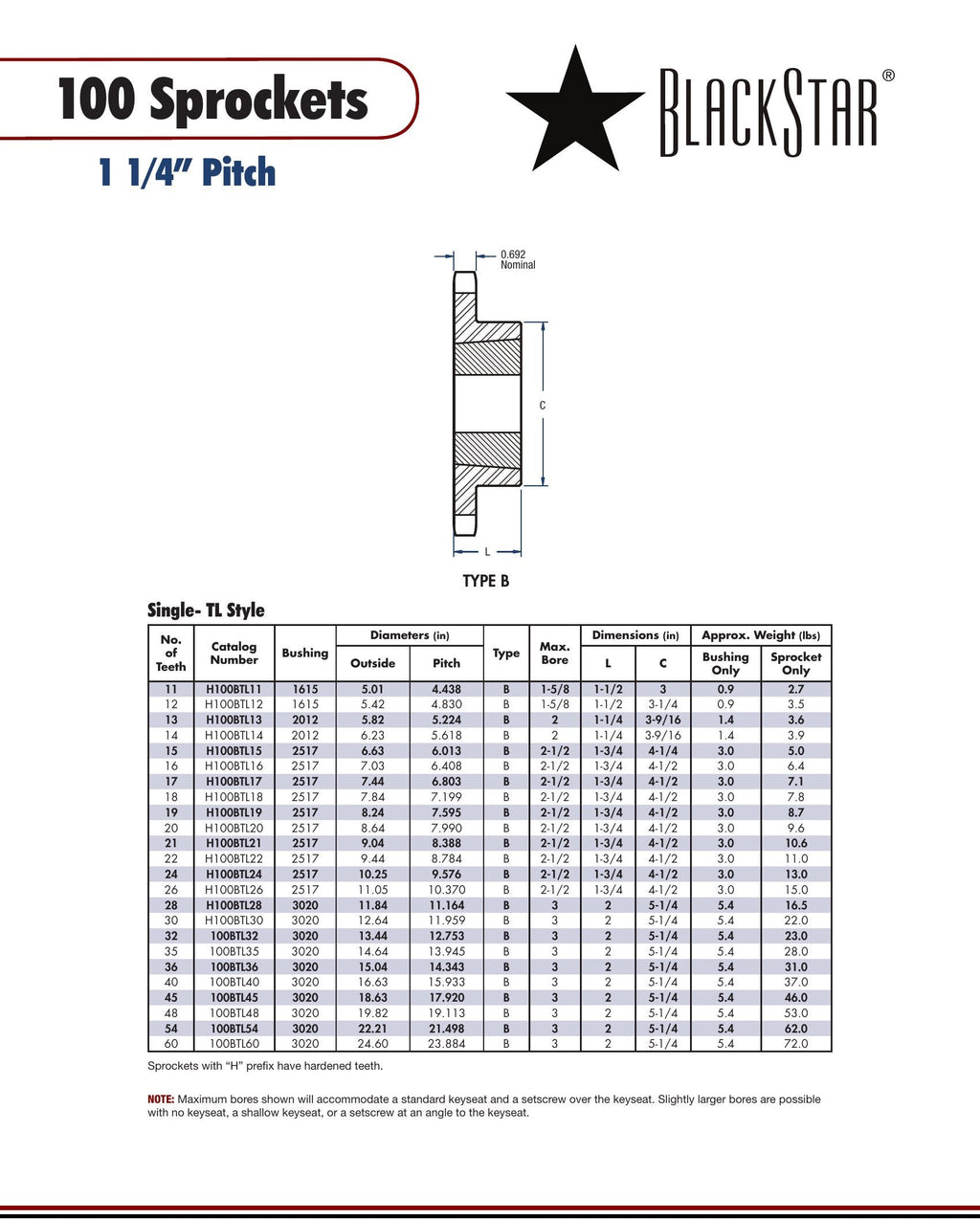

BlackStar Taper Lock Bushing Spec Sheet

Cross-references: Browning 100P13, Martin 100P13

Compatible Components

Matched Roller Chain

Shop all 51 matched options ›

Matched Roller Chain

Shop all 51 matched options ›

Matched Roller Chain

Shop all 51 matched options ›

Matched Roller Chain

Shop all 51 matched options ›

Not sure what fits? Call (888) 203-2358 and we will match it from the Houston warehouse.
