BlackStar 100SF35 - 100 Pitch QD Sprocket - 35 Tooth


Price:
$ 274.59

Description

The BlackStar 100SF35 is a 100 pitch QD roller chain sprocket with 35 teeth, precision manufactured from SAE 1045 steel and features machine-cut tooth profiles for smooth, reliable chain engagement. This sprocket requires a QD Type SF Bushing (sold separately).

Specifications
Part Number 100SF35
Chain Pitch 100
Number of Teeth 35
Bore Type QD
Hub Style QD
Bushing Required QD Type SF Bushing
Strand Count Single
Material Steel
Outside Diameter 14.64"
Pitch Diameter 13.945"
Approx. Weight 12.000 lbs

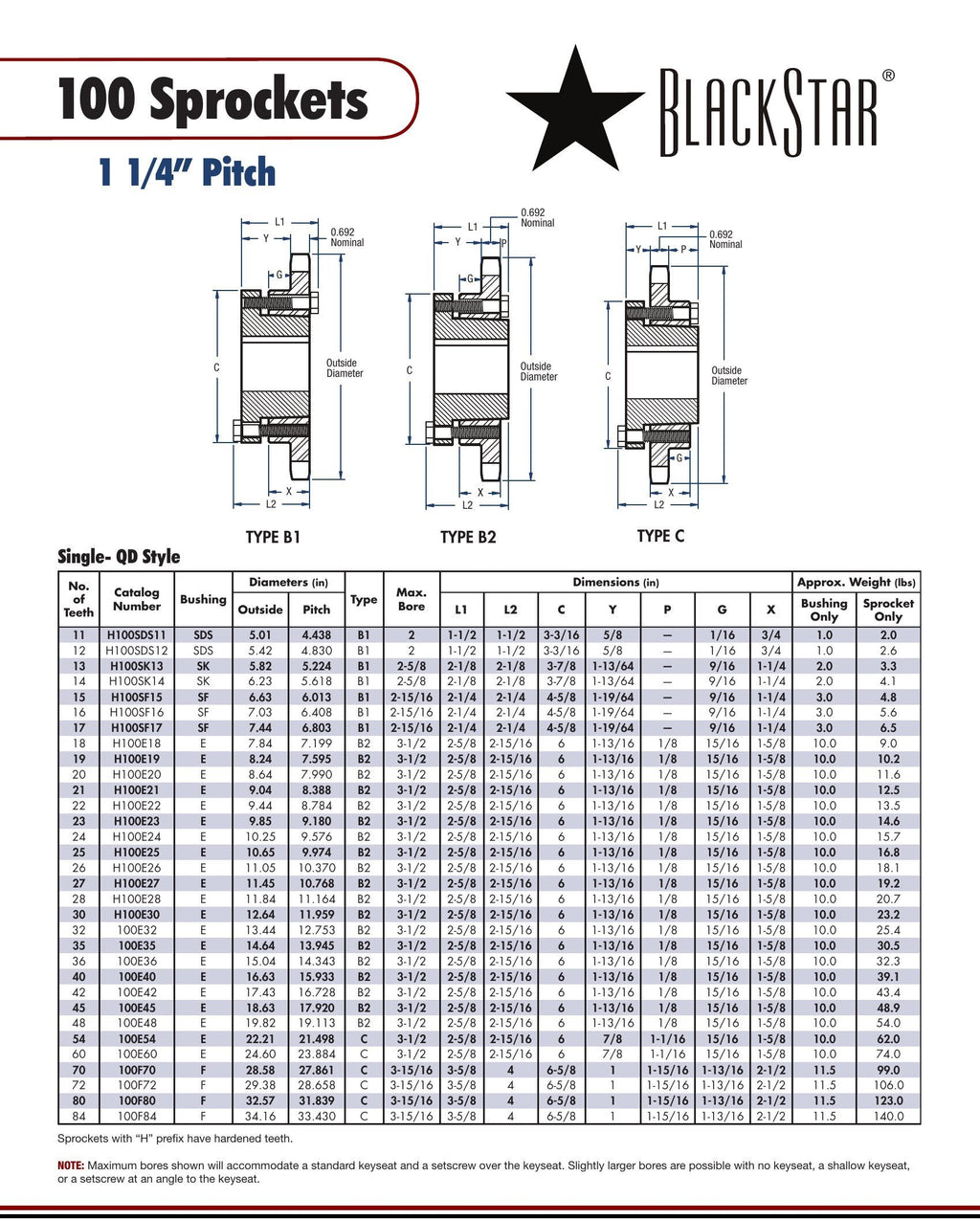

BlackStar 100SF35 Sprocket Spec Sheet

Bushing Required

This sprocket requires a QD Type SF Bushing to mount to your shaft. The bushing is sold separately and allows you to match the sprocket to your exact shaft diameter.

Shop Bushings

BlackStar QD Type SF Bushing Spec Sheet

Cross-references: Browning 100SF35, Martin 100SF35
